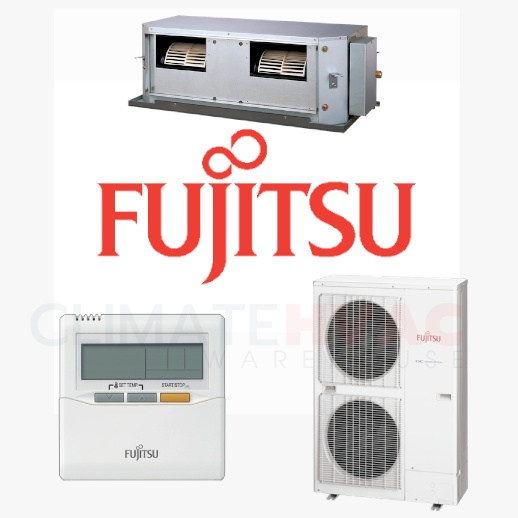

Fujitsu SET-ARTG36LHTB 10.5kW Ducted 3 Phase Air Conditioning System

ARTG36LHTB / AOTG36LATT Fujitsu Ducted

$4,511.00 Incl GST
$4,100.91 Excl GST
In Stock


Fujitsu 10.5 kW ARTG36LHTB Three Phase Ducted System - Includes Outdoor Unit AOTG36LATT

Ducted air conditioning with Zone Control capabilities allows for different zones (areas) to be set up in your home. The system adjusts airflow through dampers to control the air conditioning of the zones to reach the desired temperature.

Features:

  • Optional zone control allowing for 8 zones to be connected, giving greater temperature control to meet individual needs.
  • With built in features such as DC fan motors, DC rotary compressors, and built in programmable timers, these systems use less power than ever before.
  • Fujitsu General offers a full five year parts and labour warranty on its entire range, so you can rest assured that your air conditioner will perform.

(SET-ARTG36LHTB)

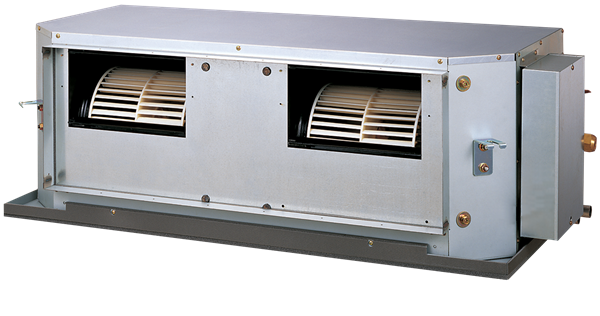

Indoor Unit ARTG36LHTB

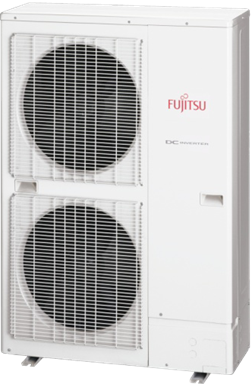

Outdoor Unit AOTG36LATT
Power Supply 3 Phase, 380 ~ 415v, 50Hz
Rated Capacity
Cool (kW) 10.5
Heat (kW) 12.1
Capacity Range
Cool (kW) 5.0 ~ 11.4
Heat (kW) 5.1 ~ 14.0
Power Input (Rated)
Cool (kW) 3.18
Heat (kW) 3.30
Max Power
Cool (kW) 5.6
Heat (kW) 5.6
Running Current
Cool (A) 4.60
Heat (A) 4.80
EER / COP 3.30 / 3.67
Energy Star Ratings
Cool 2.5 / 2.5 / 2.5
Heat 2.5 / 2.0 / 2.0
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.491 / 4.045 / 4.144
HSPF (Hot/Average/Cold) 4.341 / 3.937 / 3.529
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.851 / 4.893 / 5.207
HSPF (Hot/Average/Cold) 4.342 / 4.097 / 3.747
Dimensions (HxWxD)
Indoor (mm) 400 x 1050 x 500
Outdoor (mm) 1290 x 900 x 330
Weight
Indoor (kg) 39
Outdoor (kg) 104
Refrigerant Type R410a
Refrigerant Amount (kg) -
Pre-Charged to Pipe (m) 30
Max Pipe Length (m) 75
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -15 ~ 46
Heat (°C) -15 ~ 24
Max External Static Pressure (Pa) 210
Indoor Airflow Rate
Cool (l/s) 695
Heat (l/s) 695
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 41 / 36
Heat (dBA) 41 / 36
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 51
Heat (dBA) 53
Outdoor EPA Sound Power Level (H)
(dBA) 67
SKU SET-ARTG36LHTB
Brand Fujitsu
Shipping Weight 143.0000kg
