Fujitsu SET-ABTG24LVTC 7.1kW 1 Phase Air Conditioning System

ABTG24LVTC / AOTG24LATC Fujitsu

$3,039.00 Incl GST
$2,762.73 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

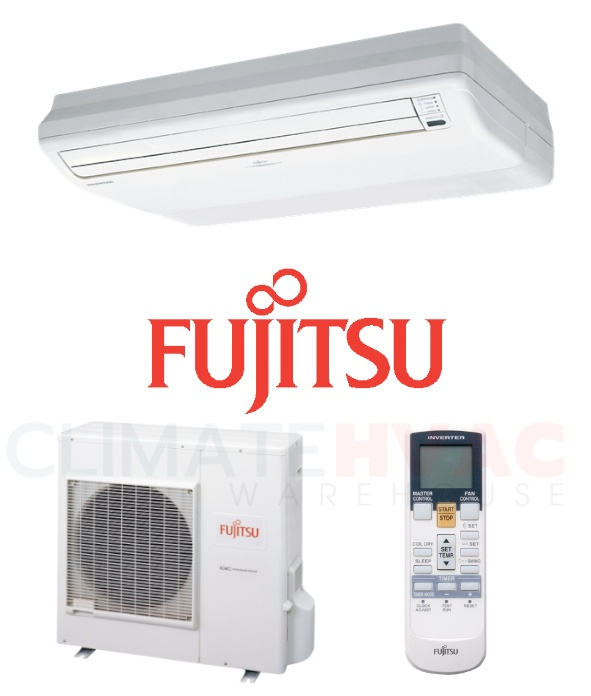

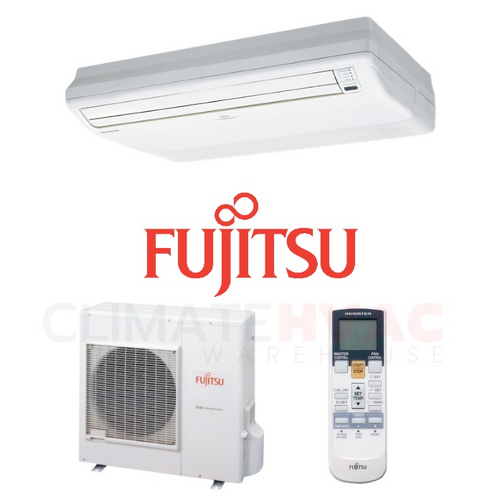

Fujitsu ABTG24LVTC 7.1 kW Dual Floor/Ceiling Console - Includes Outdoor Unit AOTG24LATC

Slim and lightweight, these models have been designed for floor or ceiling installation. Ideal for both residential or commercial applications.

Features:

  • Automatic Louvre
  • Automatic Air Flow Adjustment
  • Sleep Timer
  • Economy Mode

(SET-ABTG24LVTC)

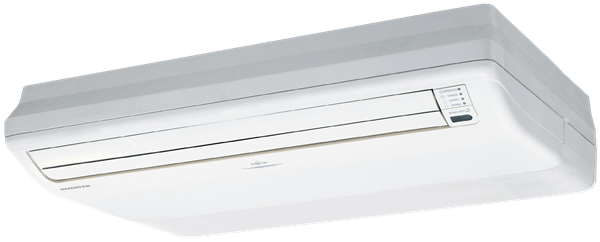

Indoor Unit ABTG24LVTC

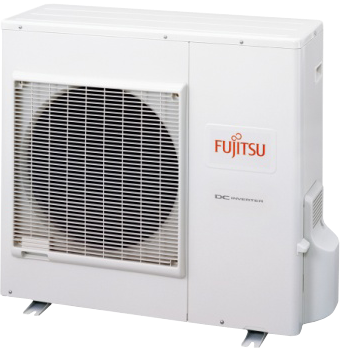

Outdoor Unit AOTG24LATC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 7.1
Heat (kW) 8.0
Capacity Range
Cool (kW) 2.9 ~ 8.0
Heat (kW) 2.2 ~ 9.1
Power Input (Rated)
Cool (kW) 2.14
Heat (kW) 2.21
Max Power
Cool (kW) 2.4
Heat (kW) 2.6
Running Current
Cool (A) 9.00
Heat (A) 9.30
EER / COP 3.32 / 3.61
Energy Star Ratings
Cool 2.0 / 2.0 / 2.0
Heat 2.5 / 2.0 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 3.863 / 3.564 / 3.599
HSPF (Hot/Average/Cold) 4.472 / 3.827 / 3.237
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.086 / 4.040 / 4.246
HSPF (Hot/Average/Cold) 4.478 / 4.099 / 3.470
Dimensions (HxWxD)
Indoor (mm) 199 x 990 x 655
Outdoor (mm) 830 x 900 x 330
Weight
Indoor (kg) 27
Outdoor (kg) 60
Refrigerant Type R410a
Refrigerant Amount (kg) 2.10
Pre-Charged to Pipe (m) 20
Max Pipe Length (m) 30
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 272
Heat (l/s) 272
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 49 / 36
Heat (dBA) 49 / 36
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 53
Heat (dBA) 54
Outdoor EPA Sound Power Level (H)
(dBA) 68
SKU SET-ABTG24LVTC
Brand Fujitsu
Shipping Weight 87.0000kg
