Braemar Austral-Air ASHV50D1S-SET 5.2kW Wall Split 1 Phase Air Conditioning System

ASHV50D1S Braemar Wall Split

$1,137.00 Incl GST
$1,033.64 Excl GST
In Stock

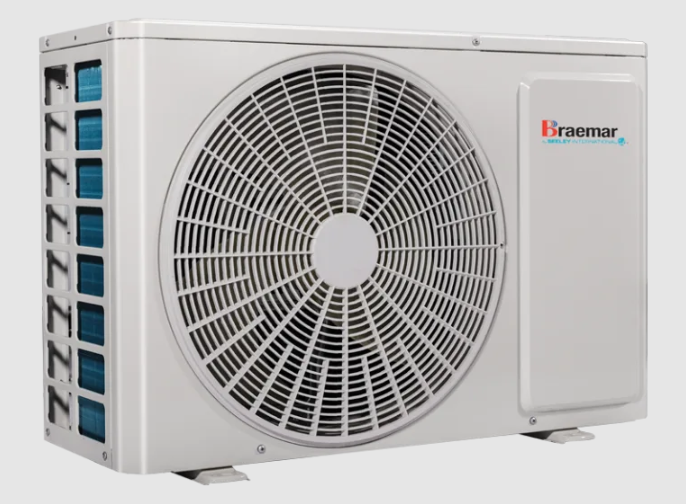

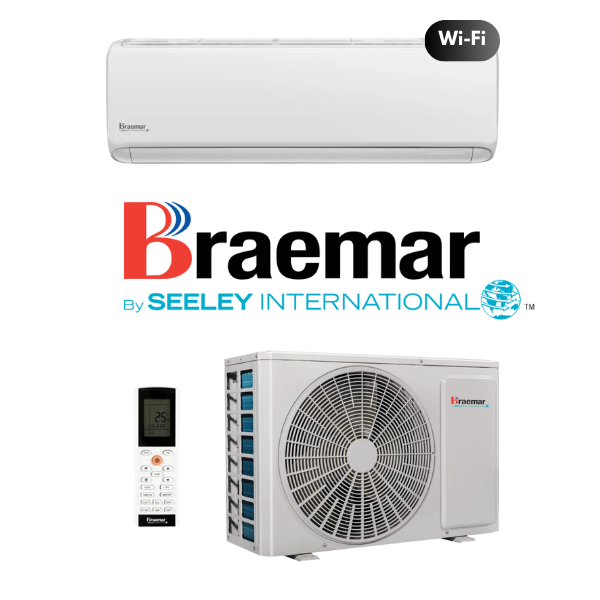

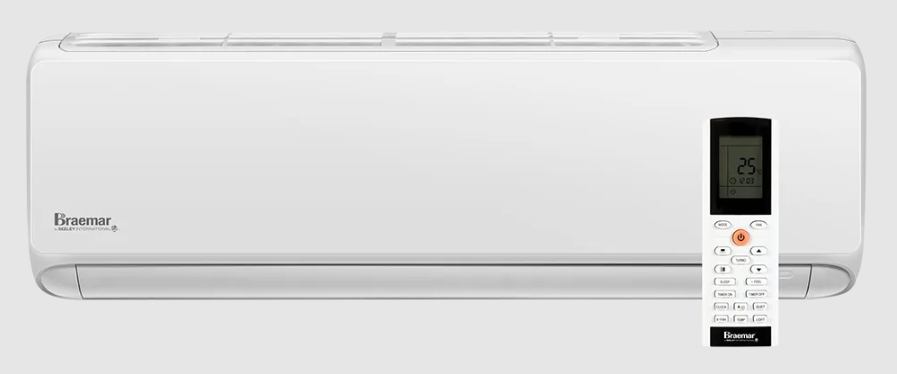

Braemar ASHV50D1S-SET 5.2kW Austral-Air Wall Split System - Includes Outdoor Unit ACHV50D1S

Braemar Austral-air split systems come in 5 capacities, to efficiently cool or heat any room – from a small study to large open plan living spaces. Inverter technology, standard across the range, helps to reduce energy consumption, so you can relax in comfort all year round.

Split systems are a cost-effective way to heat and cool one room in your home. The Braemar range comes in a number of capacities, to suit small rooms, right up to large open plan living spaces. Installation costs are generally much lower than for ducted systems, making split systems an attractive choice for both budget conscious home owners still wanting efficient, quick heating and cooling or for those applications when ducting isn’t suitable.

The Austral-air series has the new Zoned Energy Rating Label (ZERL), helping consumers make a more energy efficient choice based on the unit’s performance for their location’s climate.

Key Features:

  • Standard White Finish
  • Available in 5 sizes 2.7-8.2kW
  • Anti-Corrosion Coating
  • Wi-Fi Control Built in
  • Blue Fin Advanced Protection
  • Slim Design
  • DRED Demand Response Enabled Device
  • R32 Refrigerant

(ASHV50D1S-SET)

System Name ASHV25D1S-SET ASHV35D1S-SET ASHV50D1S-SET ASHV70D1S-SET ASHV80D1S-SET
Indoor Unit ASHV25D1S ASHV35D1S ASHV50D1S ASHV70D1S ASHV80D1S
Outdoor Unit ACHV25D1S ACHV35D1S ACHV50D1S ACHV70D1S ACHV80D1S
Cooling Capacity (kW) 2.7 3.5 5.2 7.1 8.2
Heating Capacity (kW) 3.0 3.8 5.8 7.8 9.0
Cooling Range (kW) 0.7 - 3.4 0.5 - 4.5 0.8 - 6.3 2.5 - 8.2 3.3 - 9.4
Heating Range (kW) 0.8 - 3.8 0.9 - 4.8 1.0 - 6.5 2.0 - 8.6 3.0 - 10.1
ZERL. Star Rating Cool (Hot/Avg/Cold) 3.5 / 3.0 / 3.5 4.5 / 4.0 / 4.0 3.5 / 3.0 / 3.5 5.5 / 4.5 / 4.5 4.0 / 3.5 / 3.5
ZERL. Star Rating Heat (Hot/Avg/Cold) 3.0 / 2.0 / 1.5 3.0 / 2.5 / 2.0 3.5 / 2.5 / 2.0
AEER/ACOP (kW) 3.73 / 3.88 3.84 / 3.89 3.36 / 3.65 3.66 / 3.86 3.27 / 3.37
Airflow l/s(m3/h) 153 (550) 183 (660) 278 (1000) 375 (1350) 389 (1400)
Power Supply Single Phase, 50Hz, 230V
Nominal Power Input Cool/Heat (kW) 0.72 / 0.77 0.91 / 0.97 1.53 / 1.57 1.92 / 2.00 2.49 / 2.65
Minimum Circuit Breaker Outdoor (A) 10 16 20
Maximum Current Input (A) 7.2 7.4 10.0 12.5 15.0
Sound Pressure Level IDU/ODU (dBA) 40 / 51 43 / 52 47 / 56 53 / 60 53 / 61
Indoor Unit Dimensions (HxWxD) (mm) 260 x 783 x 185 275 x 835 x 200 333 x 943 x 246 333 x 1078 x 246
Outdoor Unit Dimensions (HxWxD) (mm) 555 x 732 x 330 660 x 958 x 402
Outdoor Unit Weight (kg) 24.5 27.5 31.5 42.0 45.5
Refrigerant (Chargeless Length/Additional Charge) R32, 5m, 16g/m
Pipe Sizes (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.70
Piping: Max Height (m) 10 25
Piping: Max Length (m) 15 20 25 40
Ambient Temperature Range (Cool/Heat) (C) -15 to 52 / -15 to 24
SKU ASHV50D1S-SET
Brand Braemar
Shipping Weight 46.5000kg
Shipping Cubic 0.233038000m3
Unit Of Measure ea
