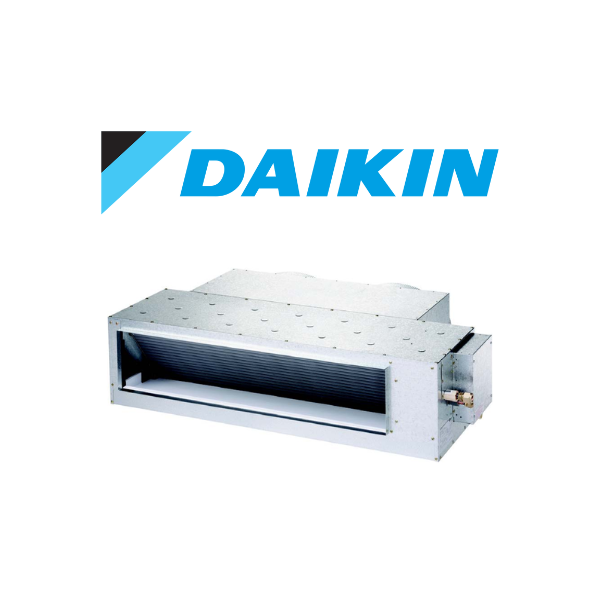

Daikin 16.0kW FXDYQ145MAV1 Multi Indoor Ceiling Concealed Ducted Air Conditioning Unit
Daikin Indoor Multi Ceiling Concealed Ducted Unit
$2,456.36 Excl GST
Daikin 16.0kW FXDYQ145MAV1 Ceiling Concealed Ducted Multi Unit - INDOOR ONLY - Includes BRC1E63 Controller
The FXDYQ-MAV1 series are high static, high sensible ducted units that allow for greater flexibility when designing duct layouts. The indoor unit can also be separated into two segments for convenient handling and facilitate easier installation through openings in the ceiling.
Key Features:
- High Efficiency Hi-X heat exchnager coils that provide even more energy savings.
- High External static pressure allows comprehensive duct layout for various applications.
- Design for indoor units allows installation in limited roof spaces.
- Return air spigots included for ease of installation for FDYXQ80-145MA models.
- Two external static pressure settings for added flexibility.
- Quiet yet powerful supply air fan.
- High strength galvanised steel casing.
(FXDYQ145MAV1)
Indoor Unit Name | FXDYQ80MAV1 | FXDYQ100MAV1 | FXDYQ125MAV1 | FXDYQ145MAV1 |
---|---|---|---|---|
Rated Cooling Capacity (kW) | 8.8 | 11.2 | 13.9 | 16.0 |
Rated Heating Capacity (kW) | 9.9 | 12.5 | 16.0 | 18.4 |
Power Consumption (Cool/Heat) (W) | 415 / 415 | 700 / 700 | 780 / 780 | 880 / 880 |
Casing | Galvanised Steel Plate | |||
Air Flow Rate (H) (l/s) | 510 | 778 | 852 | 957 |
Sound Level (H) dB(A) | 45 | 46 | 48 | 51 |
Unit Dimensions (H x W x D) (mm) | 360 x 1168 x 869 | 360 x 1478 x 899 | ||
Unit Weight (kg) | 45 | 46 | 48 | 51 |
Refrigerant | R410A | |||
Pipe Sizes (Liquid/Gas) (mm) | 9.5 / 15.9 |
SKU | FXDYQ145MAV1 |
Brand | Daikin |
Shipping Weight | 51.0000kg |
Shipping Width | 0.899m |
Shipping Height | 0.360m |
Shipping Length | 1.478m |
Shipping Cubic | 0.478340000m3 |
Unit Of Measure | ea |
Daikin offers a 5-year warranty on all of their Air Conditioners and Controllers.
