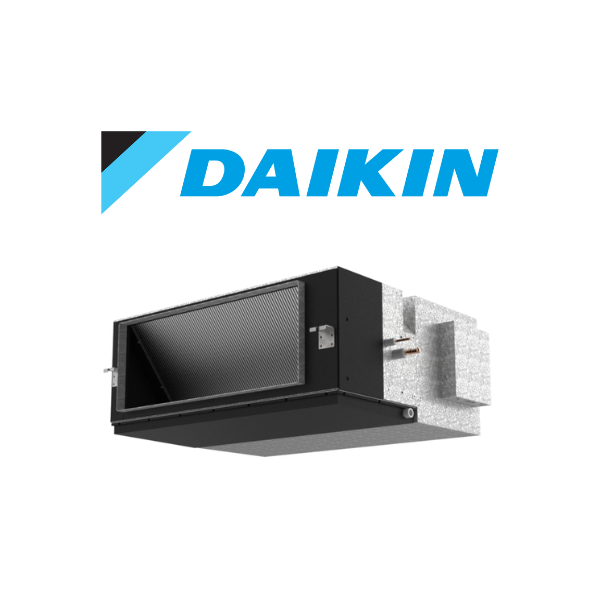

Daikin 28.0kW FXMQ250PV1A Multi Indoor Ceiling Concealed Ducted Air Conditioning Unit
Daikin Indoor Multi Ceiling Concealed Ducted Unit
$5,451.82 Excl GST
Daikin 28.0kW FXMQ250PV1A Ceiling Concealed Ducted Multi Unit - INDOOR ONLY - Includes BRC1E63 Controller
The FXMQ-PV1A series is Daikin’s new range of large capacity ducted VRV units. They feature a height of only 470mm, DC fan motor and ESP of up to 250Pa. Furthermore to facilitate installation they can also be separated into 2 sections for easier handling. The FXMQ-PV1A series is truly efficient yet powerful.
Key Features:
- Each Model is fitted with a high efficiency DC fan motor with adjustable external static pressure to suit your duct design.
- Automatic airflow adjustment feature allows the fan speed to adjust automatically to suit your duct design during comissioning, simplifying the process and saving time.
- To facilitate installation, the FXMQ160P-250P models can be separated into 2 sections for convenient handling and easier installation through openings in the ceiling.
(FXMQ250PV1A)
Indoor Unit Name | FXMQ160PV1A | FXMQ180PV1A | FXMQ200PV1A | FXMQ250PV1A |
---|---|---|---|---|
Rated Cooling Capacity (kW) | 18.0 | 20.0 | 22.4 | 28.0 |
Rated Heating Capacity (kW) | 20.0 | 22.4 | 25.0 | 31.5 |
Power Consumption (Cool/Heat) (W) | 650 / 650 | 640 / 640 | 810 / 810 | |
Casing | Galvanised Steel Plate | |||
Air Flow Rate (HH/H/L) (l/s) | 1120 / 955 / 790 | 1160 / 995 / 820 | 1200 / 1025 / 850 | 1400 / 1200 / 1000 |
Sound Level (HH/H/L) dB(A) | 45 / 41.5 / 38 | 44 / 40.5 / 37 | 46 / 42.5 / 39 | |
Sound Power (H) dB(A) | 73 | 72 | 74 | |
Unit Dimensions (H x W x D) (mm) | 470 x 1133 x 919 | 470 x 1333 x 919 | ||
Unit Weight (kg) | 70 | 79 | 85 | |
Refrigerant | R410A | |||
Pipe Sizes (Liquid/Gas) (mm) | 9.5 / 15.9 | 9.5 / 19.1 | 9.5 / 22.2 |
SKU | FXMQ250PV1A |
Brand | Daikin |
Shipping Weight | 85.0000kg |
Shipping Width | 0.919m |
Shipping Height | 0.470m |
Shipping Length | 1.333m |
Shipping Cubic | 0.575763000m3 |
Unit Of Measure | ea |
Daikin offers a 5-year warranty on all of their Air Conditioners and Controllers.
