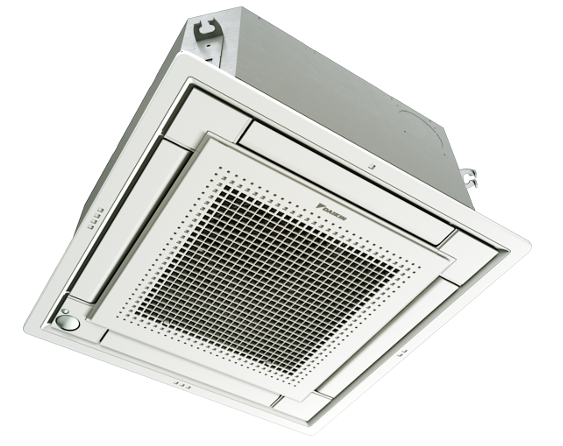

Daikin Compact Cassette FFA25B-CE2V 2.5kW 1 Phase R32 Air Conditioning System
FFA25BVM / RZAC25E2VM Daikin Compact Cassette
$1,757.27 Excl GST

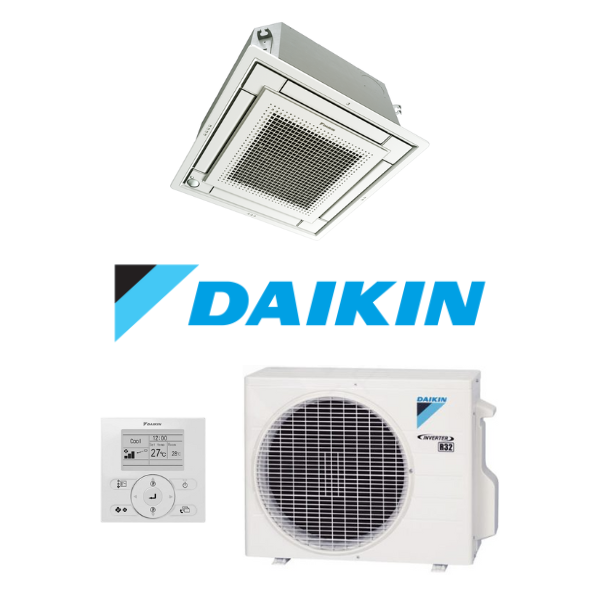

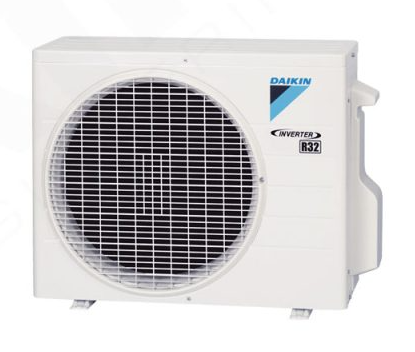

Daikin Compact Cassette FFA25B-CE2V 2.5kW Single Phase R32 Air Conditioner - Inlcudes Wired Wall Controller BRC1E63 and Outdoor Unit RZAC25E2VM
Daikin’s SkyAir Compact Cassette is a powerful, efficient and discreet solution for commercial, retail and office-based applications where both aesthetics and performance are paramount. The Compact Cassette combines the latest technology with innovative functions for high operating efficiency and user comfort, all within a unique design that allows the visible panel to fit flush within standard architectural ceiling panels.
Features:
- Compact Design: Sized to fit inside 600mm wide ceiling grids
- Sensing Technology
- Individual Airflow Direction Control
- Comfort
- Selectable Airflow Pattern
(FFA25B-CE2V)
| System Names | FFA25B-CE2V | FFA35B-CE2V | FFA50B-CE2V | FFA60B-CE2V | FFA71B-CE2V |
|---|---|---|---|---|---|
| Indoor Unit | FFA25BVM | FFA35BVM | FFA50BVM | FFA60BVM | FFA71BVM |
| Outdoor Unit | RZAC25E2VM | RZAC35E2VM | RZAC50E2VM | RZAC60E2VM | RZAC71E2VM |
| Cooling Capacity Rated/Min-Max (kW) | 2.5 (1.2-3.0) | 3.5 (1.3-4.0) | 5.0 (1.5-6.0) | 6.0 (1.5-7.0) | 7.1 (1.5-7.6) |
| Heating Capacity Rated/Min-Max(kW) | 3.2 (1.0-3.7) | 4.2 (1.0-4.3) | 6.0 (1.4-7.0) | 7.1 (1.4-8.0) | 8.0 (1.4-8.4) |
| Power Supply | 1 Phase, 220-230V, 50/60Hz | ||||
| Power Consumption (Cool/Heat) (kW) | 0.54 / 0.75 | 0.88 / 1.09 | 1.11 / 1.55 | 1.50 / 1.90 | 2.00 / 2.25 |
| EER / COP (kW/kW) | 4.63 / 4.27 | 3.98 / 3.85 | 4.50 / 3.87 | 4.00 / 3.74 | 3.55 / 3.56 |
| TCSPF Cooling Commercial Hot/Avg/Cold | 6.05 / 5.85 / 6.10 | 5.69 / 5.66 / 5.98 | 6.17 / 6.15 / 6.49 | 5.90 / 5.98 / 6.36 | 5.34 / 5.44 / 5.83 |
| TCSPF Cooling Residential Hot/Avg/Cold | 5.57 / 4.67 / 4.59 | 5.24 / 4.59 / 4.64 | 5.74 / 5.14 / 5.20 | 5.47 / 4.96 / 5.11 | 4.96 / 4.56 / 4.73 |
| HSPF Heating Commercial Hot/Avg/Cold | 4.75 / 4.52 / 4.14 | 4.65 / 4.33 / 3.87 | 4.87 / 4.56 / 4.12 | 4.72 / 4.41 / 3.98 | 4.53 / 4.23 / 3.84 |
| HSPF Heating Residential Hot/Avg/Cold | 4.75 / 4.39 / 3.93 | 4.64 / 4.13 / 3.58 | 4.87 / 4.34 / 3.84 | 4.71 / 4.19 / 3.70 | 4.52 / 4.02 / 3.58 |
| Indoor Decoration Panel Colour | White | ||||
| Indoor Airflow Rate (H/M/L) (l/s) | 150 / 133 / 108 | 167 / 142 / 108 | 200 / 167 / 125 | 250 / 208 / 158 | 258 / 208 / 158 |
| Indoor Sound Pressure Level (H/M/L) (dBA) | 31 / 28.5 / 25 | 34 / 30.5 / 25 | 39 / 34 / 27 | 44 / 40 / 32 | 44.5 / 40 / 32 |
| Indoor Sound Power Level (dBA) | 48 | 51 | 56 | 60 | |
| Outdoor Unit Colour | Ivory White | ||||
| Compressor Type | Hermatically Sealed Swing Type | ||||
| Compressor Motor Output (kW) | 0.8 | 1.3 | |||
| R32 Refrigerant Amount/Charge (kg) | 0.73 (Charged for 10m) | 1.50 (Charged for 10m) | |||
| Outdoor Sound Pressure Level Cool/Heat (dBA) | 46 / 47 | 48 / 48 | 49 / 52 | 53 / 55 | |
| Outdoor Sound Power Level (dBA) | 59 | 61 | 62 | 64 | 67 |
| Indoor Operating Range Cool/Heat (C) | 14 to 23 / 10 to 30 | ||||
| Outdoor Operating Range Cool/Heat (C) | -10 to 46 / -15 to 18 | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.4 / 9.5 | 6.4 / 12.7 | |||
| Max. Interunit Piping Length (m) | 20 (Equivalent Length 45) | 30 (Equivalent Length 45) | |||
| Max. Installation Height Difference (m) | 15 | 20 | |||
| Heat Insulation | Both Liquid and Gas Piping | ||||
| Indoor Unit Dimensions (HxWxD) (mm) | 260 x 575 x 575 (+63) | ||||
| Indoor Decoration Panel Dimensions (HxWxD) (mm) | 46 x 620 x 620 | ||||
| Outdoor Unit Dimension (HxWxD) (mm) | 550 x 675 x 284 | 695 x 930 x 350 | |||
| Indoor Unit Weight (kg) | 16 | 17.5 | |||
| Indoor Decoration Panel Weight (kg) | 2.8 | ||||
| Outdoor Unit Weight (kg) | 28 | 54 | |||
| SKU | FFA25B-CE2V |
| Brand | Daikin |
| Shipping Weight | 46.8000kg |
| Shipping Width | 0.286m |
| Shipping Height | 0.575m |
| Shipping Length | 0.575m |
| Shipping Cubic | 0.218498000m3 |
| Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
