Best Prices Daikin FDYAN160A-C2V 15.5kW Home Air Conditioner Low Cost Installation Brisbane Sydney

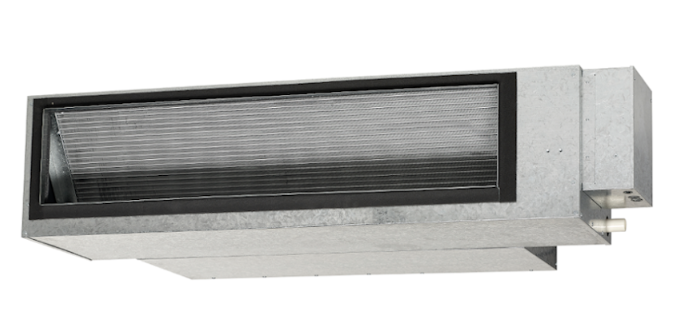

Daikin FDYAN160A-C2V 15.5kW Ducted 1 Phase Air Conditioning System

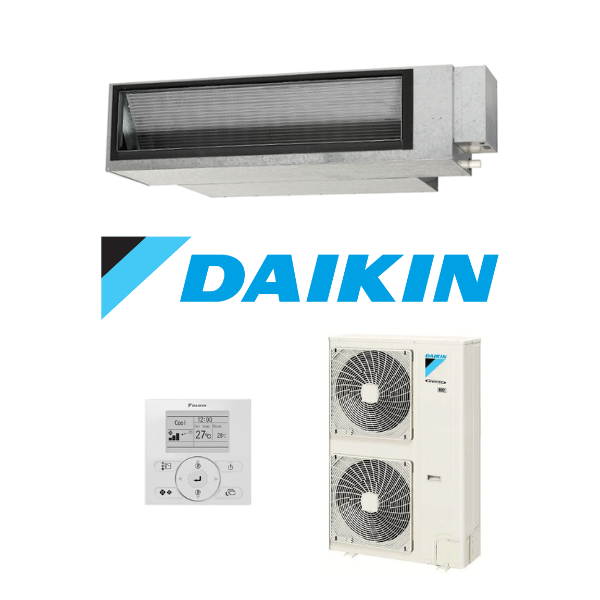

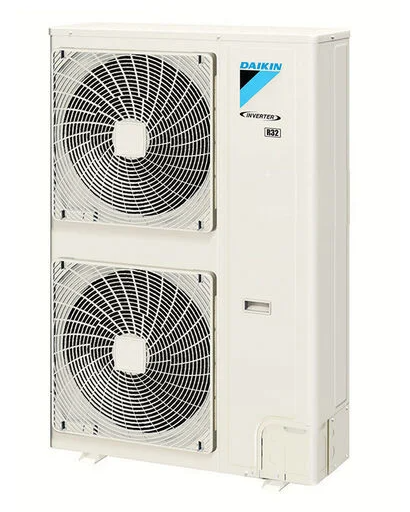

Daikin FDYAN160A-C2V 15.5kW Ducted Standard Inverter Single Phase System - Includes Wall Controller and Outdoor Unit RZA160C2V1

Crafted to offer a space-efficient and high-performance design, Daikins Inverter series is an optimal choice for seamlessly integrating into the confined roof spaces of contemporary residences. Moreover, these models, ranging from 5.0kW to 15.5kW, now come equipped with R22 retrofit capability. This advancement ensures environmental compliance while enhancing the adaptability of the units.

Key Features:

Optimized for energy efficiency.

Attained through the utilization of a reengineered cross-pass heat exchanger, a DC fan motor, and enhanced refrigerant control technology.
Night Quite Mode.

Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.
Demand Respone Enabled Ducted (DRED).

A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.
R22 backwards compatibility.

Offers an economical and user-friendly enhancement option for an existing R22 ducted system, maintaining the field piping (excluding Heating Focus models).
Australian Made.

The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.

(FDYAN160A-C2V)

System	FDYAN50A-C2V	FDYAN60A-C2V	FDYAN71A-C2V	FDYAN85A-C2V	FDYAN100A-C2V	FDYAN125A-C2V	FDYAN140A-C2V	FDYAN160A-C2V
Indoor Unit	FDYAN50AV1	FDYAN60AV1	FDYAN71AV1	FDYAN85AV1	FDYAN100AV1	FDYAN125AV1	FDYAN140AV1	FDYAN160AV1
Outdoor Unit	RZA50C2V1	RZA60C2V1	RZA71C2V1	RZA85C2V1	RZA100C2V1	RZA125C2V1	RZA140C2V1	RZA160C2V1
Rated Cooling Capacity (kW)	5.0	6.0	7.1	8.5	10.0	12.5	14.0	15.5
Rated Heating Capacity (kW)	6.0	7.0	7.5	10.0	12.5	15.0	16.5	18.0
Power Supply	1 Phase, 220-240V, 50Hz
Power Input (Rated) Cool/Heat (kW)	1.35 / 1.62	1.78 / 1.95	2.20 / 1.93	2.53 / 2.80	3.10 / 3.35	3.94 / 4.00	4.30 / 4.50	4.95 / 4.90
EER / COP	3.70 / 3.70	3.37 / 3.59	3.23 / 3.89	3.36 / 3.57	3.23 / 3.73	3.17 / 3.75	3.26 / 3.67	3.13 / 3.67
TCSPF (Residential) Hot/Avg/Cold	4.42 / 3.72 / 3.65	4.35 / 3.75 / 3.75	4.42 / 3.86 / 3.92	4.28 / 3.84 / 3.89	4.28 / 3.87 / 3.96	4.25 / 3.90 / 4.01	4.19 / 3.86 / 3.96	4.05 / 3.76 / 3.86
HSPF (Residential) Hot/Avg/Cold	4.51 / 4.02 / 3.49	4.46 / 3.76 / 3.15	4.17 / 3.85 / 3.41	3.97 / 3.67 / 3.32	3.85 / 3.48 / 3.04	4.31 / 3.31 / 2.77	3.90 / 3.51 / 3.05	3.87 / 3.53 / 3.12
Airflow Rate (Nominal/Max) (L/s)	315 / 370	340 / 400	425 / 566	580 / 600	680 / 800	755 / 840	900 / 1000	950 / 1120
Indoor Sound Level @1.5m Cool/Heat (dBA)	33.3 / 45.0	34.1 / 44.0	37.3 / 46.0	42.0 / 45.0	43.5 / 44.0	44.2 / 46.0	46.6 / 47.9	47.9 / 50.7
Piping Length (m)	50
Indoor Fan Speeds	H / M / L
Indoor Unit Dimensions (H x W x D) (mm)	300 x 1210 x 900					360 x 1520 x 935
Outdoor Unit Dimension (H x W x D) (mm)	595 x 845 x 300			990 x 940 x 320			1430 x 940 x 320
Indoor Unit Weight (kg)	37		40		45	55		56
Outdoor Unit Weight (kg)	45			69		78	93	99
Compressor Type	Hermetically Sealed Swing Type
Refrigerant	R32
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 12.7		9.52 / 15.88
Supply Air Opening (mm) HxW	185 x 852					245 x 1152
Return Air Opening (mm)	1 x 400 (Oval)				2 x 350 (Oval)	2 x 400 (Oval)
Outdoor Operating Range Cool/Heat (C)	-5 to 46 / -15 to 16
EPA Sound Power Level (dBA)	68			70	71	72	73	75
Outdoor Sound Level @1m Cool/Heat (dBA)	48 / 51			51 / 54	52 / 54	53 / 56	54 / 56	56 / 58
