Best Prices Daikin FDYBA50A-G2V 5.0kW Air Conditioner Low Cost Installation Brisbane Sydney

Daikin FDYBA50A-G2V 5.0kW Bulkhead 1 Phase Air Conditioning System

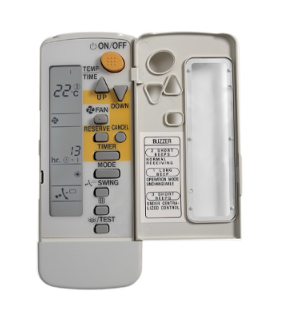

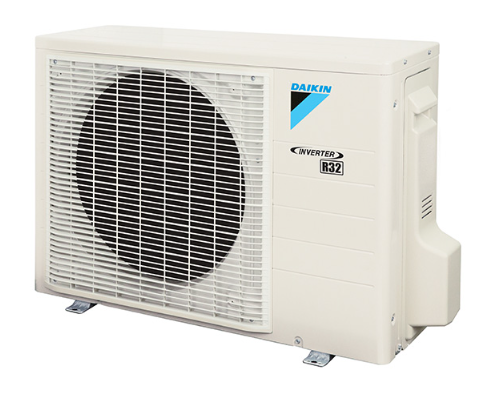

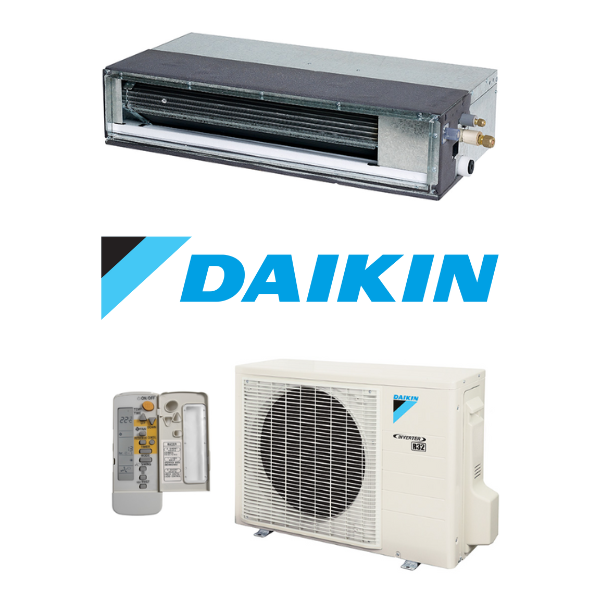

Daikin FDYBA50A-G2V 5.0kW Bulkhead Single Phase System - Includes Wireless Remote Controller and Outdoor Unit RZAC50G2V1

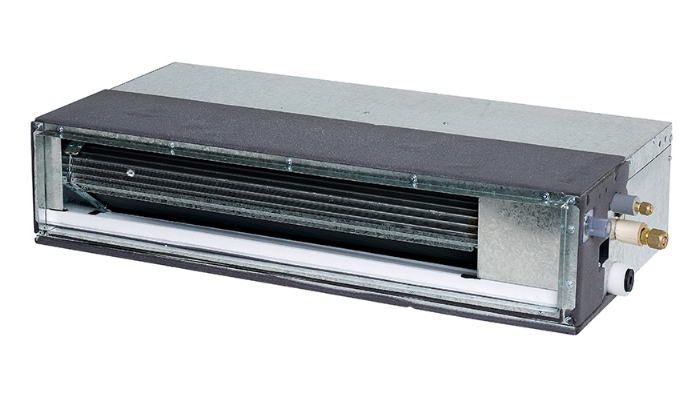

The Bulkhead series is the perfect selection for air conditioning spaces that demand a subtle installation approach. The indoor unit seamlessly integrates into the ceiling, with only the suction air and discharge grilles visible within your living space, offering ample room for furniture, decor, and fixtures. This discreet Bulkhead range operates almost silently, preserving the tranquility and aesthetics of your interior while delivering optimal climate control.

Key Features:

Compact Performance
Delivering peak performance within a compact, 450mm deep package, this model is ideal for wardrobe installations.

Quiet Operation
The noise levels are exceptionally discreet, operating at a whisper-quiet 19dBA (low fan speed, 35 Class Model).

Built-in condensate pump
The DC condensate pump is included as a standard feature, offering a 750mm lift capacity.

3D Auto Swing Grille (Optional)

Motorized louvres, both vertically and horizontally, are installed to facilitate 3-D airflow distribution, ensuring that air circulates effectively to all corners of the room.

* Please note that for the 25 Class, you should use the BDG20A09A1 model, for the 35-50 Class, the BDG20A15A1 is recommended, and for the 60-71 Class, the BDG20A20A1 model is suitable. These options are exclusively compatible with the BRC1E63 controller.

Auto Clean Air filter module (Optional)

This module effectively maintains the internal filter's cleanliness by gathering and storing dust in a user-friendly vacuum port for hassle-free removal.

* Please note that for the 25 Class, the appropriate model is BAE20A62, for the 35-50 Class, BAE20A82 is recommended, and for the 60-71 Class, BAE20A102 is the suitable choice. These modules increase the depth by 188mm and are exclusively compatible with the BRC1E63 controller.

(FDYBA50A-G2V)

System	FDYBA25A-G2V	FDYBA35A-G2V	FDYBA50A-G2V	FDYBA60A-G2V	FDYBA71A-G2V
Indoor Unit	FDYBA25AV1	FDYBA35AV1	FDYBA50AV1	FDYBA60AV1	FDYBA71AV1
Outdoor Unit	RZAC25G2V1	RZAC35G2V1	RZAC50G2V1	RZAC60G2V1	RZAC71G2V1
Rated Cooling Capacity (kW)	2.5	3.5	5.0	6.0	7.1
Rated Heating Capacity (kW)	3.5	4.0	6.0	7.0	8.0
Power Supply	1 Phase, 220-240V, 50Hz
Power Input (Rated) Cool/Heat (kW)	0.60 / 0.97	1.02 / 1.11	1.37 / 1.73	1.70 / 1.80	2.12 / 2.22
EER / COP	4.17 / 3.61	3.45 / 3.60	3.65 / 3.47	3.53 / 3.89	3.35 / 3.60
TCSPF (Residential) Hot/Avg/Cold	4.82 / 4.11 / 4.04	4.37 / 3.88 / 3.92	5.09 / 4.20 / 4.19	5.21 / 4.38 / 4.45	4.61 / 4.26 / 4.41
HSPF (Residential) Hot/Avg/Cold	4.29 / 3.64 / 3.05	4.53 / 4.06 / 3.69	4.76 / 4.12 / 3.58	5.28 / 4.58 / 3.98	6.09 / 4.13 / 3.28
Airflow Rate (Nominal) (L/s)	150	195	240	325
Indoor Sound Level @1.5m Discharge (dBA)	41.6	43.1	45.3	47.7
Indoor Sound Level @1.5m Suction (dBA)	40.8	38.9	41.2	46.2
Indoor Sound Level @1.5m Casing Breakout (dBA)	30.1	31.6	33.8	35.6
Piping Length (m)	20		30
Indoor Fan Speeds	5 Steps, Quiet and Automatic
Indoor Unit Dimensions (H x W x D) (mm)	200 x 700 x 450	200 x 900 x 450		200 x 1100 x 450
Outdoor Unit Dimension (H x W x D) (mm)	550 x 675 x 284		595 x 845 x 300		695 x 930 x 350
Indoor Unit Weight (kg)	18	21		24
Outdoor Unit Weight (kg)	28		64		128
Compressor Type	Hermetically Sealed Swing Type
Refrigerant	R32
Pipe Sizes (Liquid/Gas) (mm)	6.4 / 9.5		6.4 / 12.7
Supply Air Opening (Flange) (mm) HxW	153 x 660	153 x 860		153 x 1060
Return Air Opening (mm)	163 x 575	163 x 775		163 x 975
Outdoor Operating Range Cool/Heat (C)	-10 to 50 / -15 to 18
EPA Sound Power Level (dBA)	60		62	63	67
Outdoor Sound Level @1m Cool/Heat (dBA)	45 / 48	47 / 48	47 / 50	48 / 51	53 / 55
