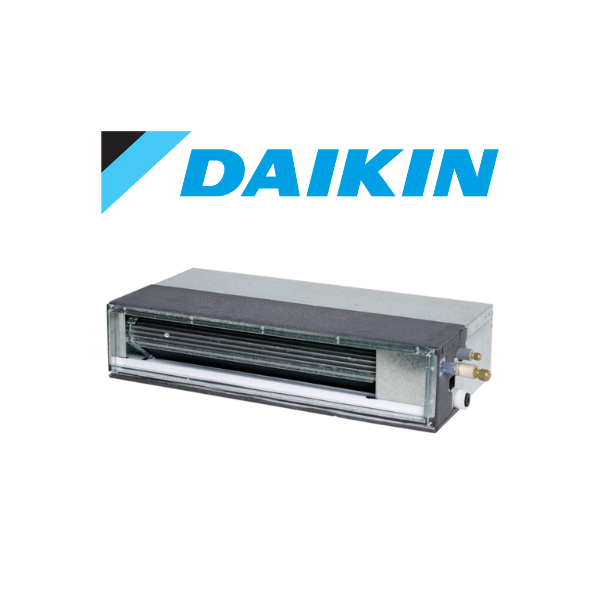

Daikin FXDQ32TV1C 3.6kW Indoor Multi Compact Bulkhead Ducted Air Conditioning Unit
Daikin Indoor Multi Compact Bulkhead Ducted Unit
$1,604.54 Excl GST
Daikin FXDQ32TV1C 3.6kW Indoor Multi Compact Bulkhead Ducted Air Conditioning Unit
The FXDQ-TV1C series is a compact, light weight, low static bulkhead unit designed to suit residential apartment applications. It's ultra compact nature of only 450mm deep allows for easy installation into drop ceilings and wardrobes. This compact bulkhead also comes with a built-in drain pump with 750mm lift and a removable return air filter.
Key Features:
- DC Fan Motor / DC Drain Pump
- Slim and Compact Design
- Air Filter Included
- Auto and 5-Step Airflow Control
(FXDQ32TV1C)
Indoor Unit Name | FXDQ20TV1C | FXDQ25TV1C | FXDQ32TV1C | FXDQ40TV1C | FXDQ50TV1C | FXDQ63TV1C |
---|---|---|---|---|---|---|
Rated Cooling Capacity (kW) | 2.2 | 2.8 | 3.6 | 4.5 | 5.6 | 7.1 |
Rated Heating Capacity (kW) | 2.5 | 3.2 | 4.0 | 5.0 | 6.3 | 8.0 |
Power Consumption (Cool/Heat) (W) | 30 / 25 | 37 / 32 | 50 / 45 | 75 / 70 | ||
Casing | Galvanised Steel Plate | |||||
Air Flow Rate (l/s) | 135 | 150 | 210 | 250 | 325 | |
Sound Level (HH/H/L) dB(A) | 33 / 30 / 28 | 33 / 30.5 / 28 | 34 / 31.5 / 29 | 35 / 32.5 / 30 | 37 / 35 / 33 | |
Unit Dimensions (H x W x D) (mm) | 200 x 700 x 450 | 200 x 900 x 450 | 200 x 1100 x 450 | |||
Unit Weight (kg) | 18 | 21 | 24 | |||
Refrigerant | R410A | |||||
Pipe Sizes (Liquid/Gas) (mm) | 6.4 / 12.7 | 9.5 / 15.9 |
SKU | FXDQ32TV1C |
Brand | Daikin |
Shipping Weight | 18.0000kg |
Shipping Width | 0.450m |
Shipping Height | 0.200m |
Shipping Length | 0.700m |
Shipping Cubic | 0.063000000m3 |
Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
