Best Prices Daikin Premium FDYQ250LC-TAY 24.0kW Air Conditioner Low Cost Installation Brisbane

Daikin Premium FDYQ250LC-TAY 24.0kW Heat Focused Ducted 3 Phase Air Conditioning System

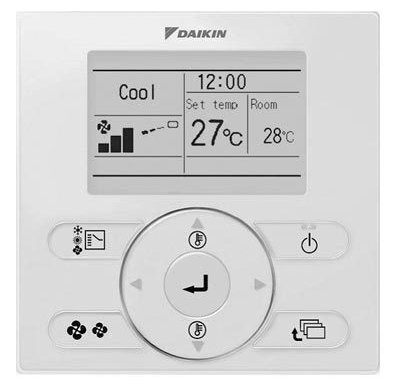

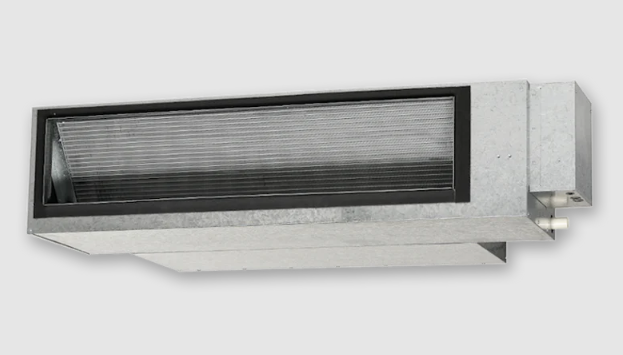

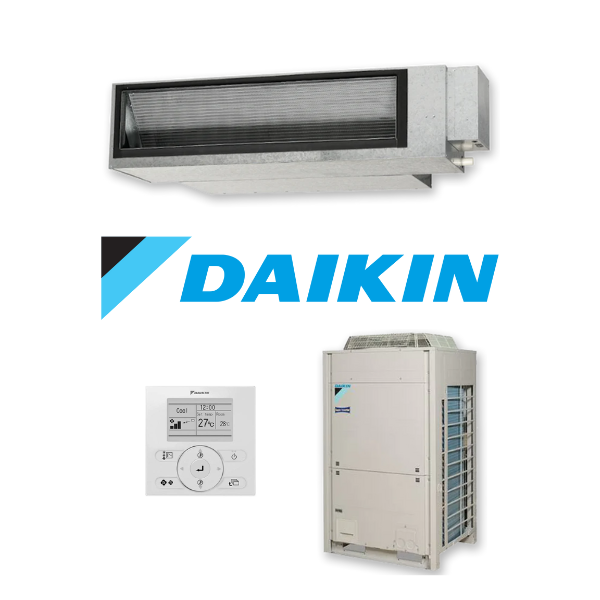

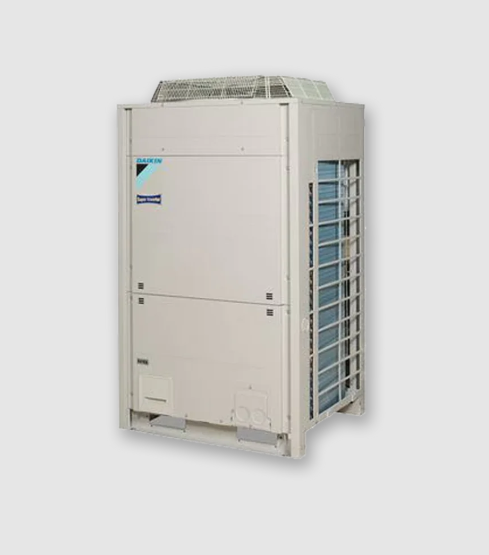

Daikin Premium FDYQ250LC-TAY 24.0kW Heating Focused Ducted Three Phase System - Includes Wall Controller and Outdoor Unit RZYQ10TAY1

The Daikin Premium Inverter offers exceptional comfort quickly and efficiently. It is designed to provide excellent energy efficiency with flexible design options. The Premium Inverter Ducted range is perfect for discreetly providing air-conditioned comfort across your entire home.

Key Features:

Industry leading energy performance.

Attained through the utilization of a reengineered cross-pass heat exchanger, a DC fan motor, and enhanced refrigerant control technology.
Heating focused.

The Heating Focus models offer a range of 18.0 to 24.0kW heating capacity, specifically designed to provide enhanced heating performance. These models are particularly well-suited for addressing the colder climates experienced in various parts of Australia.
Night Quite Mode.

Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.
Demand Respone Enabled Ducted (DRED).

A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.
R22 backwards compatibility.

Offers an economical and user-friendly enhancement option for an existing R22 ducted system, maintaining the field piping (excluding Heating Focus models).
Australian Made.

The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.

(FDYQ250LC-TAY)

System Names	FDYQ180LC-T2Y	FDYQ200LC-TY	FDYQ250LC-TY	FDYQ180LC-TA2Y	FDYQ200LC-TAY	FDYQ250LC-TAY
Indoor Unit	FDYQ180LCV1	FDYQ200LCV1	FDYQ250LCV1	FDYQ180LCV1	FDYQ200LCV1	FDYQ250LCV1
Outdoor Unit	RZYQ7T2Y1	RZYQ8TY1	RZYQ10TY1	RZYQ7TA2Y1	RZYQ8TAY1	RZYQ10TAY1
Edition	Premium - Standard			Premium - Heating Focus
Rated Cooling Capacity (kW)	18.0	20.0	24.0	18.0	20.0	24.0
Rated Heating Capacity (kW)	20.0	22.4	26.8	20.0	22.4	26.8
Power Supply	3 Phase, 380-415V, 50Hz
Power Input (Rated) Cool/Heat (kW)	5.61 / 5.81	6.08 / 6.17	7.47 / 8.14	5.60 / 5.81	6.08 / 6.17	7.47 / 8.14
EER / COP	3.21 / 3.44	3.29 / 3.63	3.21 / 3.29	3.21 / 3.44	3.29 / 3.63	3.21 / 3.29
TCSPF (Residential) Hot/Avg/Cold	3.80 / 3.26 / 3.22	3.87 / 3.35 / 3.32	3.98 / 3.50 / 3.51	3.79 / 3.23 / 3.18	3.86 / 3.32 / 3.29	3.97 / 3.48 / 3.48
HSPF (Residential) Hot/Avg/Cold	3.21 / 3.15 / 3.02	3.42 / 3.35 / 3.20	3.60 / 3.37 / 3.15	3.21 / 3.15 / 3.02	3.42 / 3.35 / 3.29	3.60 / 3.37 / 3.15
Airflow Rate (Nominal/Max) (L/s)	1160 / 1200	1200 / 1300	1400 / 1600	1160 / 1200	1200 / 1300	1400 / 1600
Indoor Sound Level @1.5m Cool/Heat (dBA)	45.0 / 45.0	44.0 / 44.0	46.0 / 46.0	45.0 / 45.0	44.0 / 44.0	46.0 / 46.0
Piping Length (m)	150			165
Indoor Fan Speeds	H / M / L
Indoor Unit Dimensions (H x W x D) (mm)	470 x 1200 x 997	470 x 1400 x 997		470 x 1200 x 997	470 x 1400 x 997
Outdoor Unit Dimension (H x W x D) (mm)	1657 x 930 x 765
Indoor Unit Weight (kg)	70	79	85	70	79	85
Outdoor Unit Weight (kg)	192		203	185		200
Compressor Type	Hermetically Sealed Scroll Type
Refrigerant	R410A
Pipe Sizes (Liquid/Gas) (mm)	9.52 / 19.1		9.52 / 22.2	9.52 / 19.1		9.52 / 22.2
Supply Air Opening (mm) HxW	350 x 918	350 x 1118		350 x 918	350 x 1118
Return Air Opening (mm)	393 x 918 (Flange)	393 x 1118 (Flange)		393 x 918 (Flange)	393 x 1118 (Flange)
Outdoor Operating Range Cool/Heat (C)	-5 to 49 / -20 to 16
EPA Sound Power Level (dBA)	-			76		78
Outdoor Sound Level @1m Cool/Heat (dBA)	56 / 56		57 / 57	56 / 56		57 / 57
