Daikin Premium Slimline FBA50BA-VC2V 5.0kW Ducted 1 Phase Air Conditioning System

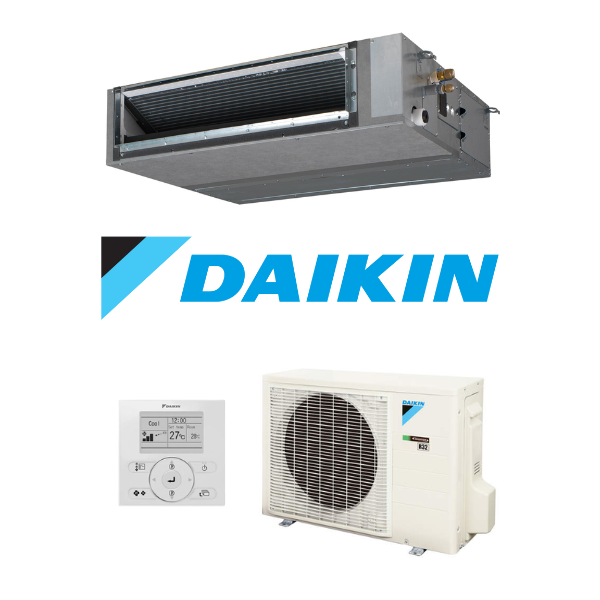

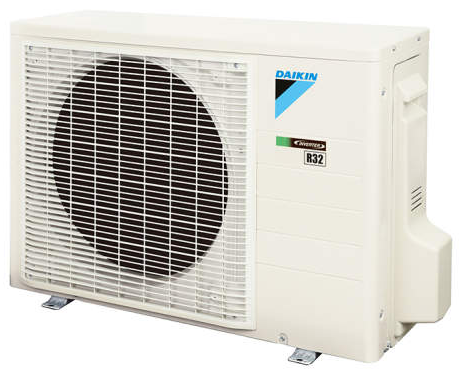

Daikin Premium Slimline FBA50BA-VC2V 5.0kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit RZAV50C2V1

Tailored for installations where ceiling space is limited, our Slim-Line Ducted series offers exceptional adaptability and creative design possibilities. Whether you have restricted ceiling room or require an underfloor solution, this ducted system effectively addresses the demands of contemporary commercial spaces and medium-density apartment projects.

Key Features:

Automatic Airflow Adjustment - Enables automatic adjustment of fan speed to perfectly align with your duct design, ensuring optimal airflow distribution.
R22 Retrofit Capability - Offers a cost-effective and hassle-free upgrade option for your current R22 ducted system, all while preserving the existing field piping.
Design Flexibility - Equipped with a DC fan featuring a static pressure of 150Pa, and offering up to 85 meters of available pipe run (classified within the 100-140 Class range) to accommodate your design layout.

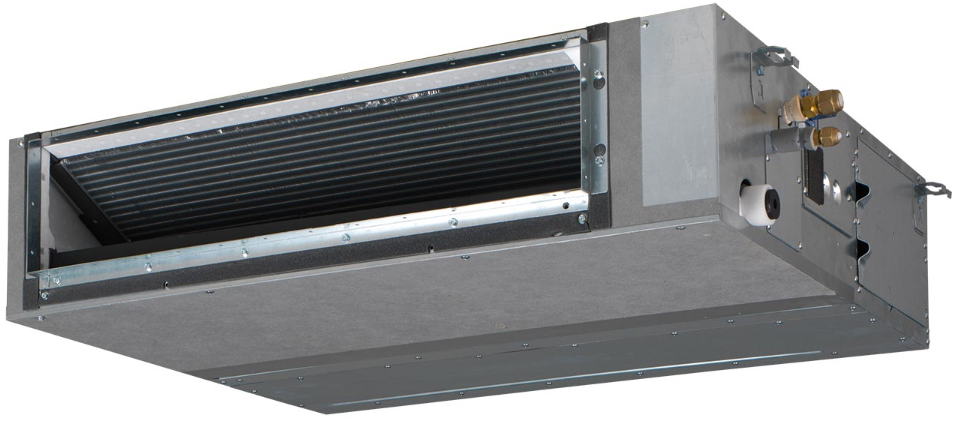

Slim-Line Indoor - The industry-leading low-profile design, standing at a height of 245mm, guarantees ample clearance in the narrowest of roof spaces.
Built-in Condensate Pump - The DC condensate pump comes standard with an 850mm lift capability.
Flexible Return Air - The choice between a rear or bottom suction return provides increased installation flexibility.

(FBA50BA-VC2V)

System	FBA50BA-VC2V	FBA60BA-VC2V	FBA71B-VC2V	FBA85B-VC2V	FBA100B-VF2V	FBA125B-VF2V	FBA140B-VF2V	FBA71B-CC2V	FBA85B-CC2V
Indoor Unit	FBA50BAVMA	FBA60BAVMA	FBA71BVMA	FBA85BVMA	FBA100BVMA	FBA125BVMA	FBA140BVMA	FBA71BVMA	FBA85BVMA
Outdoor Unit	RZAV50C2V1	RZAV60C2V1	RZAV71C2V1	RZAV85C2V1	RZAV100F2V1	RZAV125F2V1	RZAV140F2V1	RZAC71C2V1	RZAC85C2V1
Rated Cooling Capacity (kW)	5.0	6.0	7.1	8.5	10.0	12.5	14.0	7.1	8.5
Rated Heating Capacity (kW)	6.0	7.1	8.0	10.0	12.0	15.0	16.5	8.0	10.0
Edition	Premium Inverter							Standard Inverter
Power Supply	1 Phase, 220-240V, 50Hz
Power Input (Rated) Cool/Heat (kW)	1.37 / 1.41	1.67 / 1.71	2.02 / 1.99	2.30 / 2.50	2.79 / 2.92	3.68 / 3.88	4.28 / 4.52	2.15 / 2.30	2.64 / 2.95
EER / COP	3.65 / 4.26	3.59 / 4.15	3.51 / 4.02	3.70 / 4.00	3.58 / 4.11	3.40 / 3.87	3.27 / 3.65	3.30 / 3.48	3.22 / 3.39
TCSPF (Residential) Hot/Avg/Cold	4.63 / 3.87 / 3.83	4.58 / 3.92 / 3.91	4.52 / 3.97 / 4.00	4.79 / 4.26 / 4.31	5.55 / 4.92 / 5.07	5.03 / 4.62 / 4.76	4.90 / 4.53 / 4.69	4.18 / 3.67 / 3.69	4.32 / 3.87 / 3.95
HSPF (Residential) Hot/Avg/Cold	5.01 / 4.57 / 4.11	4.94 / 4.47 / 3.96	4.49 / 4.14 / 3.71	4.64 / 4.27 / 3.87	5.57 / 4.75 / 4.18	5.32 / 4.49 / 3.88	5.24 / 4.35 / 3.77	3.96 / 3.68 / 3.42	4.24 / 3.83 / 3.49
Airflow Rate (Nominal) (L/s)	300		383	533		600		383	533
Indoor Sound Level @1.5m (dBA)	35		38			40		38
Piping Length (m)	50		75		85			50
Indoor Fan Speeds	H / M / L
Indoor Unit Dimensions (H x W x D) (mm)	245 x 1000 x 800			245 x 1400 x 800				245 x 1000 x 800	245 x 1400 x 800
Outdoor Unit Dimension (H x W x D) (mm)	595 x 845 x 300		990 x 940 x 320		870 x 1100 x 460			595 x 845 x 300	990 x 940 x 320
Indoor Unit Weight (kg)	37			47				37	47
Outdoor Unit Weight (kg)	45		69	78	93	95		45	69
Compressor Type	Hermetically Sealed Swing Type
Refrigerant	R32
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 12.7		9.5 / 15.9
Supply Air Opening (mm) HxW	176 x 792			176 x 1192				176 x 792	176 x 1192
Return Air Opening (Flange) (mm)	208 x 952			208 x 1352				208 x 952	208 x 1352
Outdoor Operating Range Cool/Heat (C)	-5 to 50 / -15 to 16							-5 to 46 / -15 to 16
EPA Sound Power Level (dBA)	68		67	71	68	69	70	68	70
Outdoor Sound Level @1m Cool/Heat (dBA)	48 / 51		48 / 50	52 / 53	49 / 50	50 / 51	52 / 53	48 / 51	51 / 54
