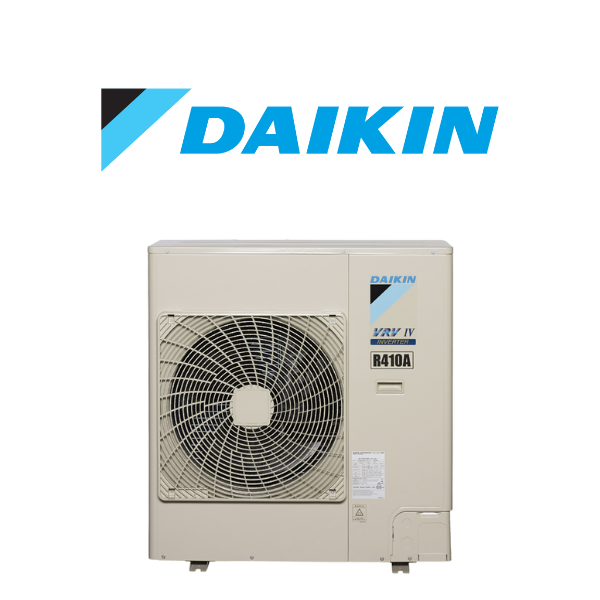

Daikin RXYMQ5B2VM 14.0kW Multi Outdoor Only Air Conditioning Unit

Daikin RXYMQ5B2VM Outdoor Multi Unit

$7,907.00 Incl GST
$7,188.18 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 7:00 AM and will recommence on 2nd January 2025 at 8:00 AM.

Daikin RXYMQ5B2VM 14.0kW VRV IV-S Outdoor Multi Air Conditioning Unit

Daikin's VRV IV-S multi split air conditioning system incorporates the latest technology from our VRV commercial air conditioners including remarkable energy efficiency, quiet operations and long piping runs of up to 100m (24kW Model) for flexible condenser placement.

With the size of the Australian residential properties reducing over time, the compact size and horizontal discharge design of the VRV IV-S outdoor unit makes it an ideal solution for the modern home.

Features:

  • Compact Footprint: Available in a wide range of capacities whilst maintaining a compact installation footprint with long piping runs of up to 100m (24kW Model).
  • Ultimate Versatility: As many as 14 indoors can be connected, available indoors include bulkheads and ducted units.
  • Comfort for Everyone: Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants.
  • Night Time Quiet Mode: Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
  • Intelligent Comfort: Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.
  • Energy Efficient: Running costs are kept low as only rooms requiring air conditioning can be switch on independently.

(RXYMQ5B2VM)

System Name  RXYMQ3A2V4A  RXYMQ4A2V4A  RXYMQ5B2VM  RXYMQ6B2VM  RXYMQ8AY1  RXYMQ9AY1
Power Supply  1 Phase, 220 ~ 240V, 50Hz  3 Phase, 380 ~ 415V, 50Hz
Cooling Capacity (kW)  9.0  11.2  14.0  16.0  22.4  24.0
Heating Capacity (kW)  10.0  12.5  14.0  16.0  25.0  26.0
MAX Connectable Indoor Units  5  6  8  9  13  14
Refrigerant Type  R410A
Sound Level (Cool/Heat)  51 / 52  52 / 54  53 / 54  55 / 56  57 / 58  58 / 59
Sound Power Level (dBA)  69  70  74  76  75  76
Max Pipe Length (Total / Per Room) (m)  50  70  100
Outdoor Operating Range (Cooling / Heating)  -5 ~ 46 / -20 ~ 15.5
Outdoor Dimensions (HxWxD) (mm)  990 x 940 x 320  1430 x 940 x 320
Outdoor Weight (kg)  71  78  80  138
SKU RXYMQ5B2VM
Brand Daikin
Shipping Weight 78.0000kg
Shipping Width 0.320m
Shipping Height 0.990m
Shipping Length 0.940m
Shipping Cubic 0.297792000m3
Unit Of Measure ea

Daikin offers a 5-year warranty for all of their Air conditioners and Controllers.
