Daikin VAM1000GJVE277.8LSERV - Air Conditioning System

Daikin

Price On Application

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

Daikin's HRV (Heat Reclaim Ventilation) recovers thermal energy lost through ventilation and holds down room temperature changes caused by ventilation, thereby maintaining a comfortable and clean environment. This also curbs the load on the air conditioning system and conserves energy.



Efficient ventilation is a key element of building regulations. Daikin’s heat recovery ventilation modules can be applied as standalone units or incorporated within the air conditioning system. Temperature and humidity are exchanged between the supply and exhaust air, recovering potential energy losses and reducing the air conditioning loads. The HRV modules feature a high efficiency VAM heat exchanger which enables the exchange of both sensible and latent heat energy and substantially increasing the energy transfer capacity.

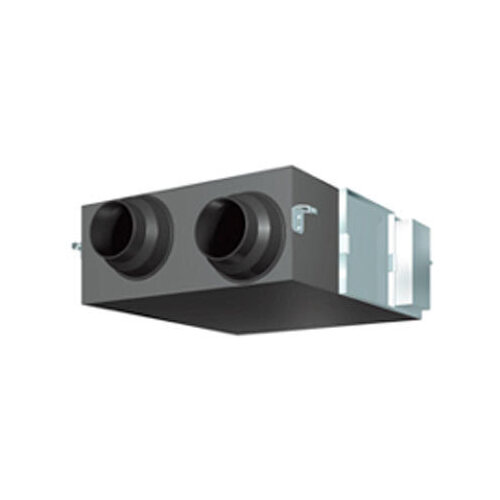

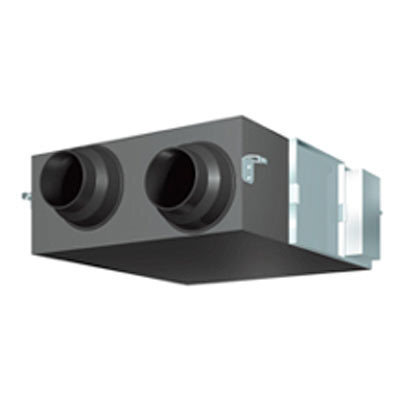

The Daikin VAM1000GJVE has an airflow of 277.8L/s (1000m3/h) with a temperature exchange efficiency rating from 78% - 81%.



(VAM1000GJVE277.8LSERV)

     MODEL VAM1000GJVE
Power Supply Ø, V, Hz 1, 220 - 240 / 220, 50 / 60
Temp. Exchange Efficience (%) [50Hz/60Hz] Ultra-High 78
High 78
Low 80.5
Enthalpy Exchange Efficiency (%) [50Hz/60Hz] For Heating Ultra-High 70
High 70
Low 72.5
For Cooling Ultra-High 64
High 64
Low 68.5
Sound Level dB(A) [50Hz/60Hz] Heat Exchange Mode Ultra-High 39.5 - 41.5
High 37.5 - 39.5
Low 35 - 37.5
Bypass Mode Ultra-High 40.5 - 42.5
High 38.5 - 40.5
Low 36 - 38.5
Casing   Galvanized Steel Plate
Insulation Material   Self-extinguishable Polyurethane Foam
Dimensions (HxWxD) mm 387 x 1,111 x 1,214
Weight kg 67
Heat Exchange System   Air to air cross tow total heat exchange
Heat Exchange Element Material   Specially processed nonflammable paper
Air Filter   Multidirectional Fibrous Fleeces
Fan Type   Sirroco Fan
Air Flow Rate (m3/h) [50 Hz/60 Hz] Ultra-High 1,000
High 1,000
Low 860
External Static Pressure (Pa) [50Hz/60Hz] Ultra-High
SKU VAM1000GJVE277.8LSERV
Brand Daikin
Shipping Weight 67.0000kg
Shipping Width 1.111m
Shipping Height 0.387m
Shipping Length 1.214m

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
