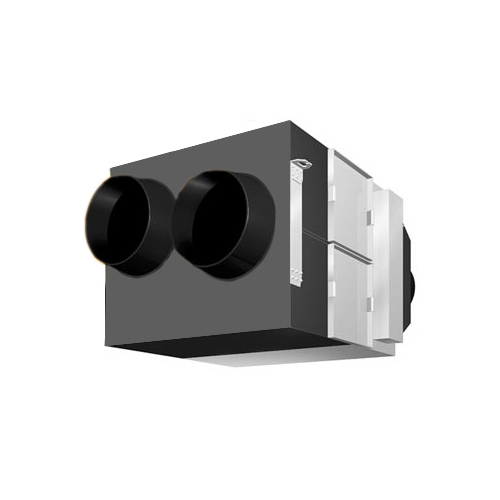

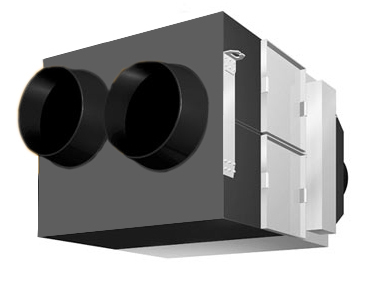

Daikin VAM1500GJVE416.7LSERV - Air Conditioning System

Daikin

Price On Application

Daikin's HRV (Heat Reclaim Ventilation) recovers thermal energy lost through ventilation and holds down room temperature changes caused by ventilation, thereby maintaining a comfortable and clean environment. This also curbs the load on the air conditioning system and conserves energy.



Efficient ventilation is a key element of building regulations. Daikin's heat recovery ventilation modules can be applied as standalone units or incorporated within the air conditioning system. Temperature and humidity are exchanged between the supply and exhaust air, recovering potential energy losses and reducing the air conditioning loads. The HRV modules feature a high efficiency VAM heat exchanger which enables the exchange of both sensible and latent heat energy and substantially increasing the energy transfer capacity.



The Daikin VAM1500GJVE has an airflow of 416.7L/s (1500m3/h) with a temperature exchange efficiency rating from 72% - 76%.



(VAM1500GJVE416.7LSERV)

     MODEL VAM1500GJVE
Power Supply Ø, V, Hz 1, 220 - 240 / 220, 50 / 60
Temp. Exchange Efficience (%) Ultra-High 72
High 72
Low 75.5
Enthalpy Exchange Efficiency (%) For Heating Ultra-High 65
High 65
Low 67
For Cooling Ultra-High 61
High 61
Low 64
Sound Level dB(A) Heat Exchange Mode Ultra-High 39.5 - 41.5
High 37.5 - 39.5
Low 35 - 37.5
Bypass Mode Ultra-High 41 - 43
High 39.5 - 41
Low 36.5 - 38
Casing   Galvanized Steel Plate
Insulation Material   Self-extinguishable Polyurethane Foam
Dimensions (HxWxD) mm 785 x 1619 x 832
Weight kg 129
Heat Exchange System   Air to air cross tow total heat exchange
Heat Exchange Element Material   Specially processed nonflammable paper
Air Filter   Multidirectional Fibrous Fleeces
Fan Type   Sirroco Fan
Air Flow Rate  (m3/h) Ultra-High 1,500
High 1,500
Low
SKU VAM1500GJVE416.7LSERV
Brand Daikin
Shipping Weight 129.0000kg
Shipping Width 1.619m
Shipping Height 0.785m
Shipping Length 0.832m

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
