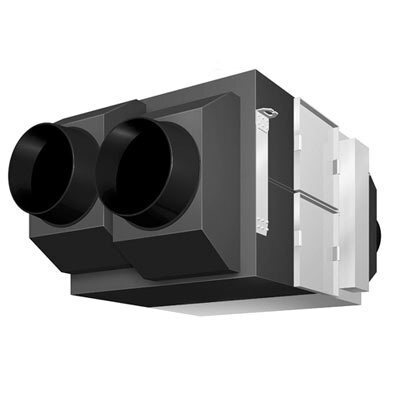

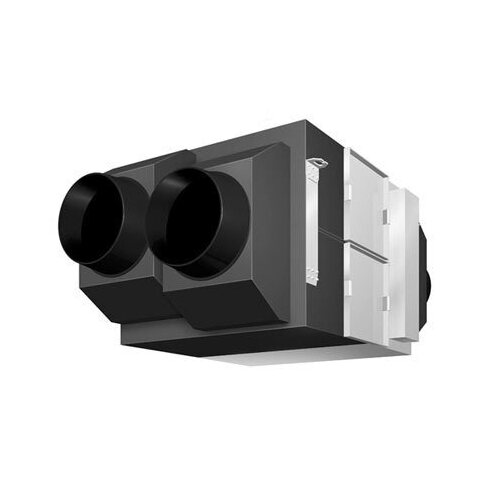

Daikin VAM2000GJVE555.6LSERV - Air Conditioning System

Daikin

Price On Application

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

Daikin's HRV (Heat Reclaim Ventilation) recovers thermal energy lost through ventilation and holds down room temperature changes caused by ventilation, thereby maintaining a comfortable and clean environment. This also curbs the load on the air conditioning system and conserves energy.



Efficient ventilation is a key element of building regulations. Daikin's heat recovery ventilation modules can be applied as standalone units or incorporated within the air conditioning system. Temperature and humidity are exchanged between the supply and exhaust air, recovering potential energy losses and reducing the air conditioning loads. The HRV modules feature a high efficiency VAM heat exchanger which enables the exchange of both sensible and latent heat energy and substantially increasing the energy transfer capacity.



The Daikin VAM2000GJVE has an airflow of 555.6L/s (2000m3/h) with a temperature exchange efficiency rating from 77% - 81%.



(VAM2000GJVE555.6LSERV)

     MODEL VAM2000GJVE
Power Supply Ø, V, Hz 1, 220 - 240 / 220, 50 / 60
Temp. Exchange Efficience (%) [50Hz/60Hz] Ultra-High 77
High 77
Low 79
Enthalpy Exchange Efficiency (%) [50Hz/60Hz] For Heating Ultra-High 72
High 72
Low 75
For Cooling Ultra-High 62
High 62
Low 66
Sound Level dB(A) [50Hz/60Hz] Heat Exchange Mode Ultra-High 41.5 - 43.5
High 39 - 43
Low 36 - 39
Bypass Mode Ultra-High 43 - 45.5
High 40.5 - 45
Low 37.5 - 39.5
Casing   Galvanized Steel Plate
Insulation Material   Self-extinguishable Polyurethane Foam
Dimensions (HxWxD) mm 785 x 1,619 x 1,214
Weight kg 157
Heat Exchange System   Air to air cross tow total heat exchange
Heat Exchange Element Material   Specially processed nonflammable paper
Air Filter   Multidirectional Fibrous Fleeces
Fan Type   Sirroco Fan
Air Flow Rate (L/h) [50 Hz/60 Hz] Ultra-High 2,000
High 2,000
Low 1,720
External Static Pressure (Pa) [50Hz/60Hz] Ultra-High 116
SKU VAM2000GJVE555.6LSERV
Brand Daikin
Shipping Weight 157.0000kg
Shipping Width 1.619m
Shipping Height 0.785m
Shipping Length 1.214m

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
