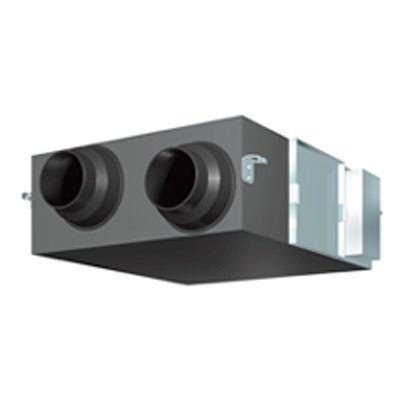

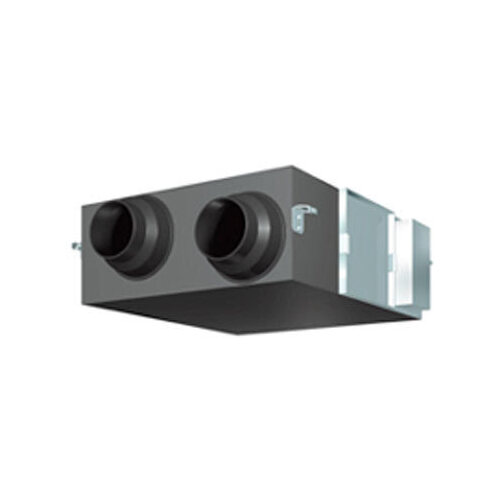

Daikin VAM250GJVE69.4LSERV - Air Conditioning System

Daikin

Price On Application

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

Daikin's HRV (Heat Reclaim Ventilation) recovers thermal energy lost through ventilation and holds down room temperature changes caused by ventilation, thereby maintaining a comfortable and clean environment. This also curbs the load on the air conditioning system and conserves energy.



Efficient ventilation is a key element of building regulations. Daikin's heat recovery ventilation modules can be applied as standalone units or incorporated within the air conditioning system. Temperature and humidity are exchanged between the supply and exhaust air, recovering potential energy losses and reducing the air conditioning loads. The HRV modules feature a high efficiency VAM heat exchanger which enables the exchange of both sensible and latent heat energy and substantially increasing the energy transfer capacity.



The Daikin VAM250GJVE has an airflow of 69.4L/s (250m3/hour) with a temperature exchange efficiency rating from 75% - 79%.

(VAM250GJVE69.4LSERV)

     MODEL VAM250GJVE
Power Supply Ø, V, Hz 1, 220 - 240 / 220, 50 / 60
Temp. Exchange Efficience (%) [50Hz/60Hz] Ultra-High 75
High 75
Low 79
Enthalpy Exchange Efficiency (%) [50Hz/60Hz] For Heating Ultra-High 71
High 71
Low 74
For Cooling Ultra-High 63
High 63
Low 66
Sound Level dB(A) [50Hz/60Hz] Heat Exchange Mode Ultra-High 27 - 29
High 26 - 27.5
Low 21 - 22
Bypass Mode Ultra-High 28.5 - 30.5
High 27.5 - 29
Low 22.5 - 23
Casing   Galvanized Steel Plate
Insulation Material   Self-extinguishable Polyurethane Foam
Dimensions (HxWxD) mm 278 x 810 x 551
Weight kg 24
Heat Exchange System   Air to air cross tow total heat exchange
Heat Exchange Element Material   Specially processed nonflammable paper
Air Filter   Multidirectional Fibrous Fleeces
Fan Type   Sirroco Fan
Air Flow Rate (L/h) [50 Hz/60 Hz] Ultra-High 250
High 250
Low 155
External Static Pressure (Pa) [50Hz/60Hz] Ultra-High 70
SKU VAM250GJVE69.4LSERV
Brand Daikin
Shipping Weight 24.0000kg
Shipping Width 0.810m
Shipping Height 0.278m
Shipping Length 0.511m

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
