Fujitsu SET-AGTG09KVCA 2.5kW Air Conditioning System

AGTG09KVCA / AOTG09KVCA Fujitsu

$1,720.00 Incl GST
$1,563.64 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

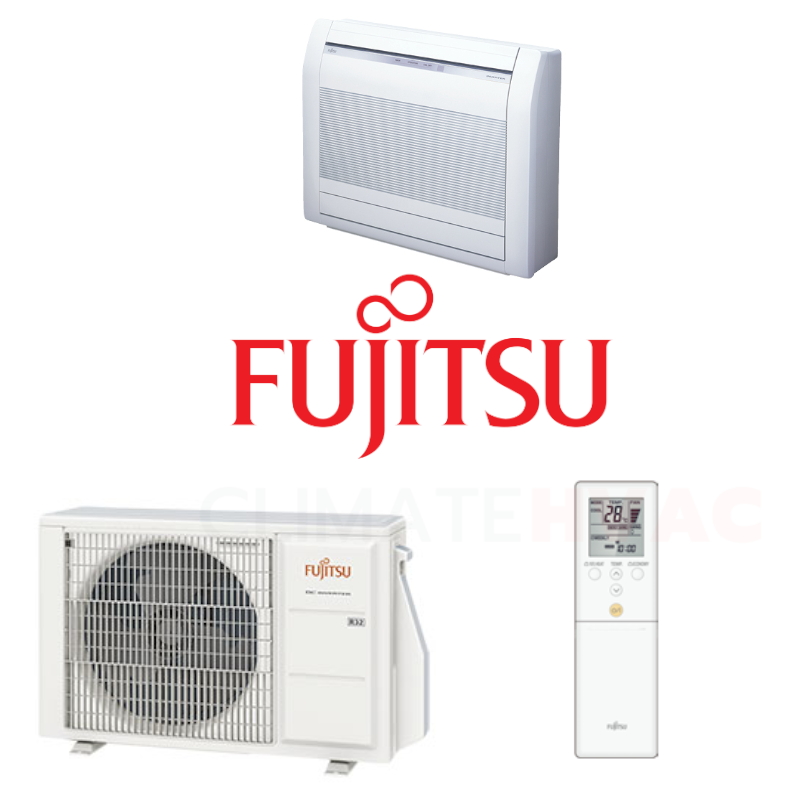

Fujitsu AGTG09KVCA 2.5kW R32 Floor Console System - Includes Outdoor Unit AOTG09KVCA

Implemented core technology provides easy-to-use product operations that realize a comfortable space.

Features:

  • Auto Shut Louvre
  • Automatic Air Flow Adjustment
  • Auto Restart

(SET-AGTG09KVCA)

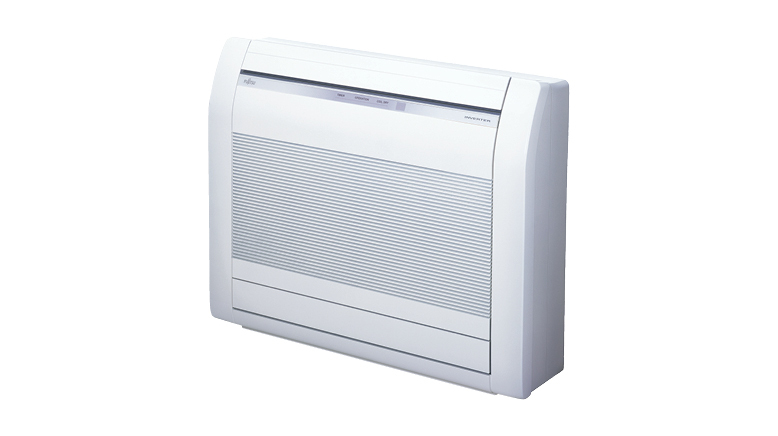

Indoor Unit AGTG09KVCA

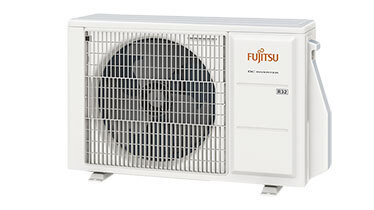

Outdoor Unit AOTG09KVCA
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 2.5
Heat (kW) 3.5
Capacity Range
Cool (kW) 0.9 ~ 3.5
Heat (kW) 0.9 ~ 5.3
Power Input (Rated)
Cool (kW) 0.53
Heat (kW) 0.85
Max Power
Cool (kW) 1.3
Heat (kW) 1.7
Running Current
Cool (A) 3.00
Heat (A) 4.00
EER / COP 4.70 / 4.27
Energy Star Ratings
Cool 5.5 / 5.0 / 5.0
Heat 3.0 / 3.0 / 2.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 7.172 / 6.564 / 6.884
HSPF (Hot/Average/Cold) 4.950 / 4.511 / 4.030
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 8.124 / 8.594 / 9.852
HSPF (Hot/Average/Cold) 4.948 / 4.679 / 4.269
Dimensions (HxWxD)
Indoor (mm) 600 x 740 x 200
Outdoor (mm) 542 x 799 x 290
Weight
Indoor (kg) 14
Outdoor (kg) 31
Refrigerant Type R32
Refrigerant Amount (kg) -
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 20
Max Level Difference
(m) 15
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 9.52
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 158
Heat (l/s) 167
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 40 / 22
Heat (dBA) 41 / 22
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 43
Heat (dBA) 47
Outdoor EPA Sound Power Level (H)
(dBA) 58
SKU SET-AGTG09KVCA
Brand Fujitsu
Shipping Weight 45.0000kg
