Fujitsu SET-AGTG12KVCA 3.5kW Air Conditioning System

AGTG12KVCA / AOTG12KVCA Fujitsu

$1,850.00 Incl GST
$1,681.82 Excl GST
In Stock

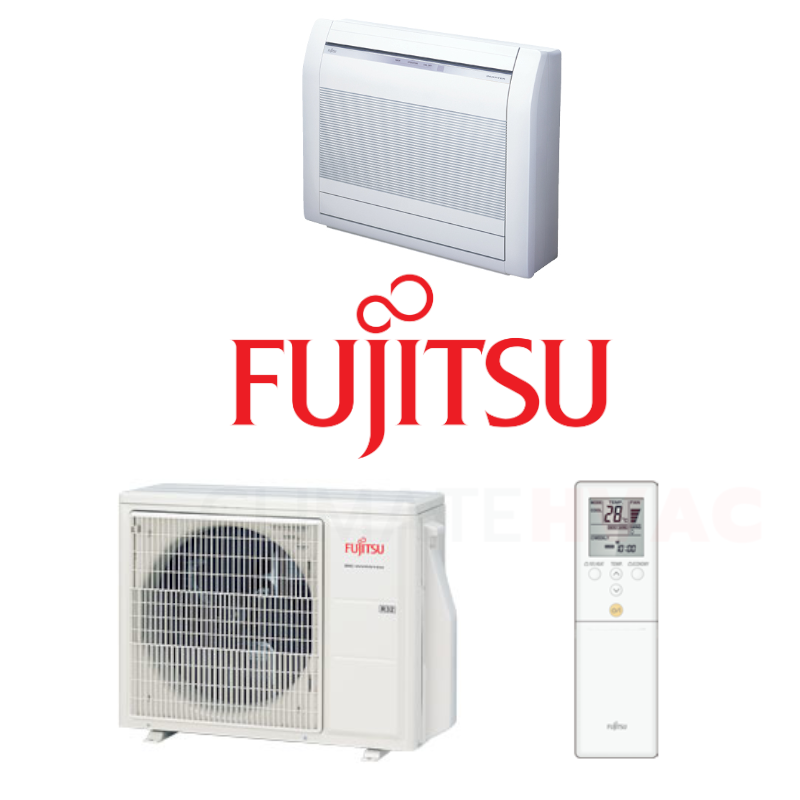

Fujitsu AGTG12KVCA 3.5kW R32 Floor Console System - Includes Outdoor Unit AOTG12KVCA

Implemented core technology provides easy-to-use product operations that realize a comfortable space.

Features:

  • Auto Shut Louvre
  • Automatic Air Flow Adjustment
  • Auto Restart

(SET-AGTG12KVCA)

Indoor Unit AGTG12KVCA

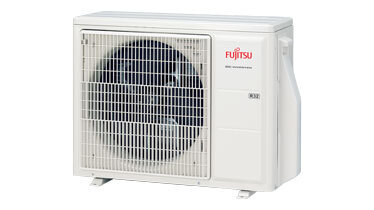

Outdoor Unit AOTG12KVCA
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 3.5
Heat (kW) 4.5
Capacity Range
Cool (kW) 0.9 ~ 4.3
Heat (kW) 0.9 ~ 6.1
Power Input (Rated)
Cool (kW) 0.85
Heat (kW) 1.11
Max Power
Cool (kW) 2.1
Heat (kW) 2.1
Running Current
Cool (A) 4.10
Heat (A) 4.10
EER / COP 4.10 / 4.05
Energy Star Ratings
Cool 4.5 / 4.0 / 4.5
Heat 3.0 / 2.5 / 2.0
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 6.373 / 5.898 / 6.224
HSPF (Hot/Average/Cold) 4.753 / 4.316 / 3.841
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 7.338 / 7.901 / 9.357
HSPF (Hot/Average/Cold) 4.752 / 4.485 / 4.080
Dimensions (HxWxD)
Indoor (mm) 600 x 740 x 200
Outdoor (mm) 632 x 799 x 290
Weight
Indoor (kg) 14
Outdoor (kg) 38
Refrigerant Type R32
Refrigerant Amount (kg) -
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 20
Max Level Difference
(m) 15
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 9.52
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 158
Heat (l/s) 181
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 40 / 22
Heat (dBA) 43 / 22
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 44
Heat (dBA) 49
Outdoor EPA Sound Power Level (H)
(dBA) 58
SKU SET-AGTG12KVCA
Brand Fujitsu
Shipping Weight 52.0000kg
