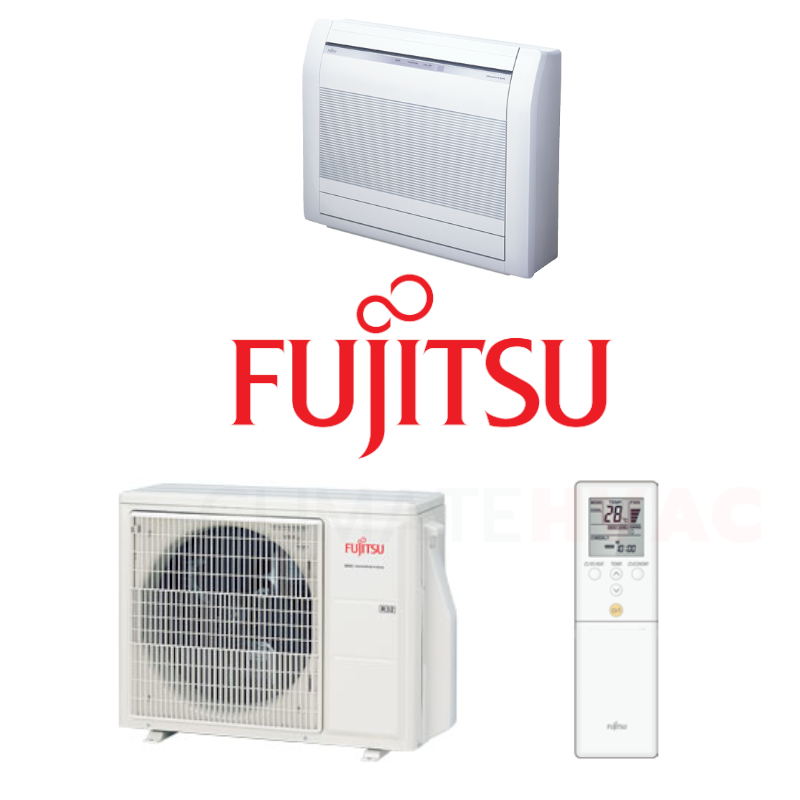

Fujitsu SET-AGTG14KVCA 4.2kW Air Conditioning System

AGTG14KVCA / AOTG14KVCA Fujitsu

$2,056.00 Incl GST
$1,869.09 Excl GST
In Stock


Fujitsu AGTG14KVCA 4.2kW R32 Floor Console System - Includes Outdoor Unit AOTG14KVCA

Implemented core technology provides easy-to-use product operations that realize a comfortable space.

Features:

  • Auto Shut Louvre
  • Automatic Air Flow Adjustment
  • Auto Restart

(SET-AGTG14KVCA)

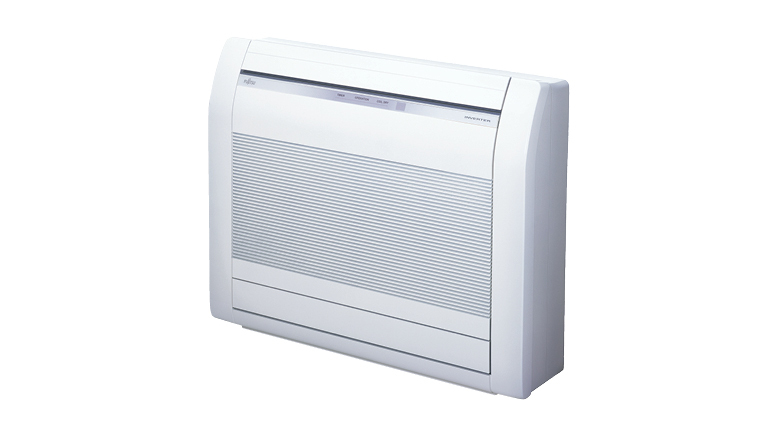

Indoor Unit AGTG14KVCA

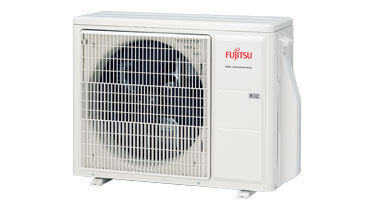

Outdoor Unit AOTG14KVCA
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 4.2
Heat (kW) 5.2
Capacity Range
Cool (kW) 0.9 ~ 5.2
Heat (kW) 0.9 ~ 6.5
Power Input (Rated)
Cool (kW) 1.10
Heat (kW) 1.41
Max Power
Cool (kW) 2.1
Heat (kW) 2.1
Running Current
Cool (A) 4.80
Heat (A) 6.10
EER / COP 3.80 / 3.70
Energy Star Ratings
Cool 4.0 / 4.0 / 4.0
Heat 3.0 / 2.5 / 2.0
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.975 / 5.579 / 5.933
HSPF (Hot/Average/Cold) 4.669 / 4.111 / 3.546
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 6.754 / 7.227 / 8.349
HSPF (Hot/Average/Cold) 4.678 / 4.340 / 3.854
Dimensions (HxWxD)
Indoor (mm) 600 x 740 x 200
Outdoor (mm) 632 x 799 x 290
Weight
Indoor (kg) 14
Outdoor (kg) 38
Refrigerant Type R32
Refrigerant Amount (kg) -
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 20
Max Level Difference
(m) 15
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 9.52
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 181
Heat (l/s) 181
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 44 / 22
Heat (dBA) 43 / 22
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 47
Heat (dBA) 49
Outdoor EPA Sound Power Level (H)
(dBA) 62
SKU SET-AGTG14KVCA
Brand Fujitsu
Shipping Weight 52.0000kg
