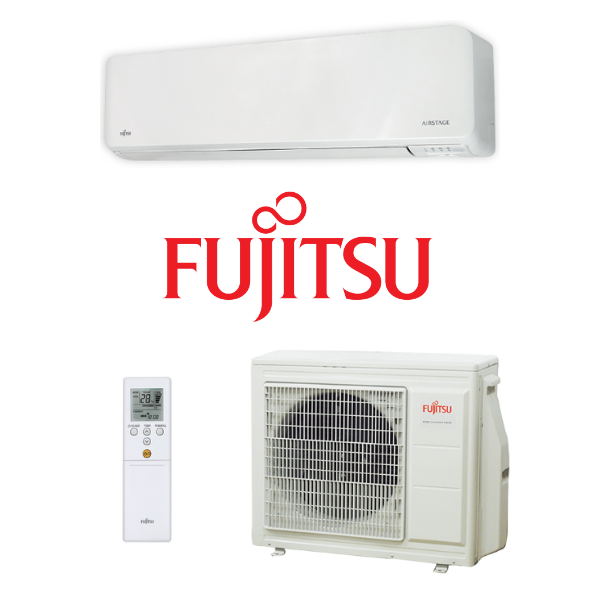

Fujitsu Lifestyle SET-ASTG18KMTC 5.0kW Wall Split Air Conditioning System

ASTG18KMTC / AOTG18KMTC Fujitsu Wall Split

$1,660.00 Incl GST
$1,509.09 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

Fujitsu SET-ASTG18KMTC 5.0kW Reverse Cycle Split System with R32 Gas - Includes Outdoor Unit AOTG18KMTC

Ideal for mid-sized rooms. With energy management features such as Human Sensor Control, economy mode, and weekly timers, the Lifestyle range makes indoor comfort easy and cost-effective. Energy-efficient, wall mounted split system units in cooling only and reverse cycle. A stylish design, along with efficient features like Human Sensor Control and Economy mode have been combined in the Lifestyle wall mounted split system air conditioning range to offer user flexibility and total control around the comfort of their home.

Features:

  • With All DC, electricity loss is decreased and power consumption reduced.
  • Auto Changeover
  • Automatic Air Flow Adjustment
  • Blue Fin Heat Exchanger
  • Human sensor detects movement of people within the conditioned room.
  • Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable.
  • R32 Gas

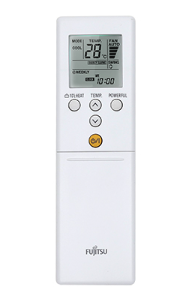

  • Wireless Remote Controller Included

(SET-ASTG18KMTC)

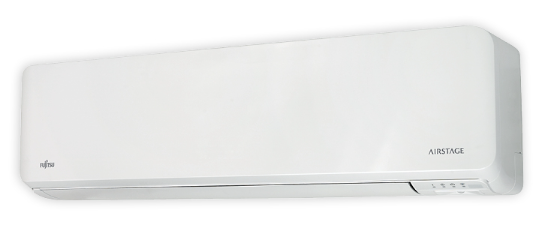

Indoor Unit ASTG18KMTC

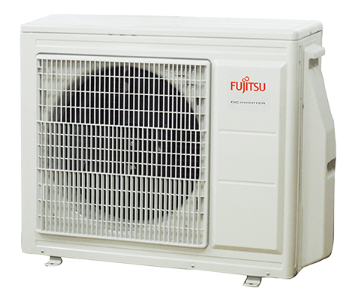

Outdoor Unit AOTG18KMTC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 5.0
Heat (kW) 6.0
Capacity Range
Cool (kW) 1.0 ~ 6.5
Heat (kW) 1.1 ~ 8.7
Power Input (Rated)
Cool (kW) 1.16
Heat (kW) 1.28
Input Power Range
Cool (kW) 0.24 ~ 1.68
Heat (kW) 0.14 ~ 2.42
Running Current
Cool (A) 5.10
Heat (A) 5.60
EER / COP 4.31 / 4.69
Energy Star Ratings
Cool 4.5 / 4.5 / 4.5
Heat 3.0 / 2.5 / 2.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 6.460 / 6.102 / 6.472
HSPF (Hot/Average/Cold) 4.704 / 4.480 / 4.092
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 7.156 / 7.555 / 8.512
HSPF (Hot/Average/Cold) 4.684 / 4.533 / 4.216
Dimensions (HxWxD)
Indoor (mm) 280 x 980 x 240
Outdoor (mm) 716 x 820 x 315
Weight
Indoor (kg) 12.5
Outdoor (kg) 42
Refrigerant Type R32
Refrigerant Amount (kg) 1.32
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 30
Max Level Difference
(m) 25
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 12.70
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 283
Heat (l/s) 283
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 46 / 29
Heat (dBA) 46 / 29
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 47
Heat (dBA) 48
Outdoor EPA Sound Power Level (H)
(dBA) 59
SKU SET-ASTG18KMTC
Brand Fujitsu
Shipping Weight 54.5000kg
Shipping Cubic 0.250799000m3
Unit Of Measure ea
