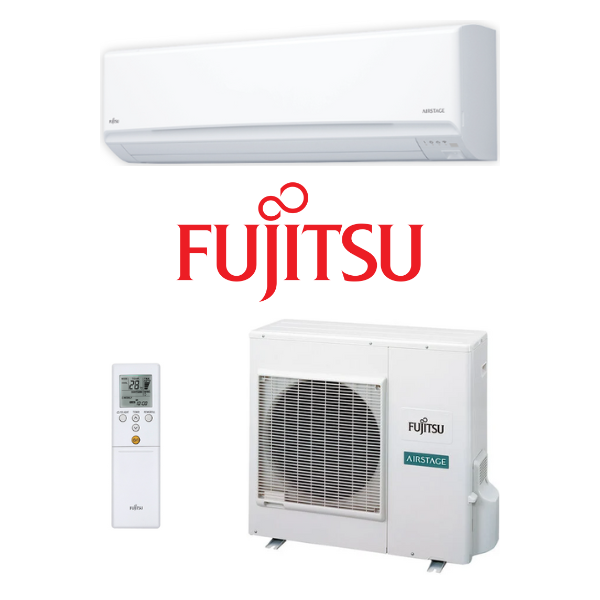

Fujitsu Lifestyle SET-ASTH34KMTD 9.5kW Wall Split Air Conditioning System

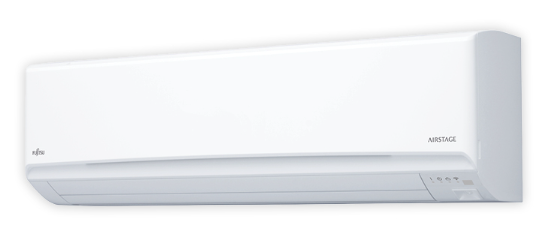

ASTH34KMTD / AOTH34KMTD Fujitsu Wall Split
$2,793.64 Excl GST
Dear Customers, our online sales will close on 23rd December 2024 at 7:00 AM and will recommence on 2nd January 2025 at 8:00 AM.

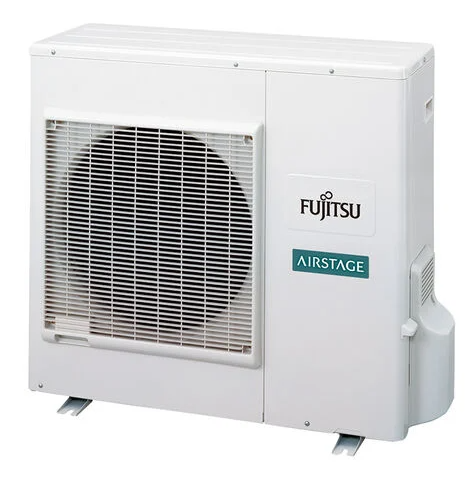

Fujitsu SET-ASTH34KMTD 9.5kW Reverse Cycle Split System with R32 Gas - Includes Outdoor Unit AOTH34KMTD
Ideal for large rooms. With energy management features such as Human Sensor Control, economy mode, and weekly timers, the Lifestyle range makes indoor comfort easy and cost-effective. Energy-efficient, wall mounted split system units in cooling only and reverse cycle. A stylish design, along with efficient features like Human Sensor Control and Economy mode have been combined in the Lifestyle wall mounted split system air conditioning range to offer user flexibility and total control around the comfort of their home.
Features:
- 7 Models from 2.5kW to 9.5kW
- Compact and Modern Aesthetic
- Award-Winning design
- R32 refrigerant
- Cooling operation range up to 50C ambient temperature

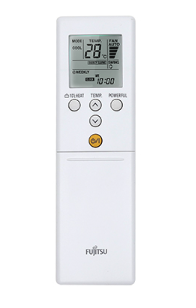

- Includes Wireless Remote Controller
(SET-ASTH34KMTD)
| System Names | SET-ASTG09KMTC | SET-ASTG12KMTC | SET-ASTH18KMTD | SET-ASTH22KMTD | SET-ASTH24KMTD | SET-ASTH30KMTD | SET-ASTH34KMTD | |
|---|---|---|---|---|---|---|---|---|
| Indoor Units | ASTG09KMTC | ASTG12KMTC | ASTH18KMTD | ASTH22KMTD | ASTH24KMTD | ASTH30KMTD | ASTH34KMTD | |
| Outdoor Units | AOTG09KMTC | AOTG12KMTC | AOTH18KMTD | AOTH22KMTD | AOTH24KMTD | AOTH30KMTD | AOTH34KMTD | |
| Power Source (V/Ph/Hz) | 220-240 / 1 / 50 | |||||||
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 6.0 | 7.1 | 8.5 | 9.5 | |
| Rated Heating Capacity (kW) | 3.2 | 3.7 | 6.0 | 7.2 | 8.0 | 9.0 | 10.3 | |
| EER / COP | 4.71 / 4.84 | 3.93 / 4.68 | 4.31 / 4.69 | 3.80 / 4.24 | 3.41 / 4.19 | 3.41 / 3.77 | 3.49 / 3.39 | |
| Outdoor Sound Power (dBA) | 55 | 59 | 59 | 61 | 66 | 65 | 70 | |
| Indoor dimensions (H x W x D) (mm) | 270 x 834 x 222 | 280 x 980 x 240 | 340 x 1150 x 280 | |||||
| Outdoor dimension (H x W x D) (mm) | 542 x 799 x 290 | 716 x 820 x 315 | 788 x 940 x 320 | 998 x 940 x 320 | ||||
| Indoor Weight (kg) | 10 | 12.5 | 16.5 | |||||
| Outdoor Weight (kg) | 32 | 41 | 53 | 62 | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 9.52 / 15.88 | |||||
| Pipe Length (m) (Max / Precharged) | 20 (15) | 30 (15) | 50 (20) | 50 (25) | ||||
| Max Height Difference (m) | 15 | 25 | 30 | |||||
| Operation Range Cooling (Min to Max CDB) | -10 to 46 | -10 to 50 | ||||||
| Operation Range Heating (Min to Max CDB) | -15 to 24 | |||||||
| Refrigerant Type/Amount (g) | R32 / 850 | R32 / 1270 | R32 / 1700 | R32 / 2300 | ||||
| SKU | SET-ASTH34KMTD |
| Brand | Fujitsu |
| Shipping Weight | 78.5000kg |
| Shipping Cubic | 0.409678000m3 |
| Unit Of Measure | ea |
