Hisense AUD-140UX4RSH1-SET 14.0kW Ducted 1 Phase Air Conditioning System

Hisense-AUD-140UX4RSH1-SET

Hisense-AUD-140UX4RSH1-SET

Hisense-AUD-140UX4RSH1-SET

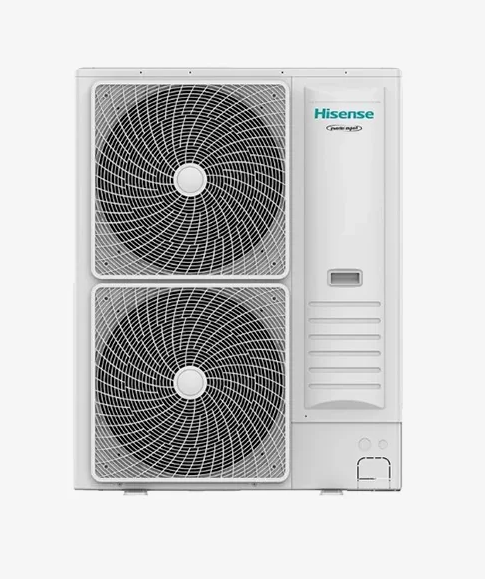

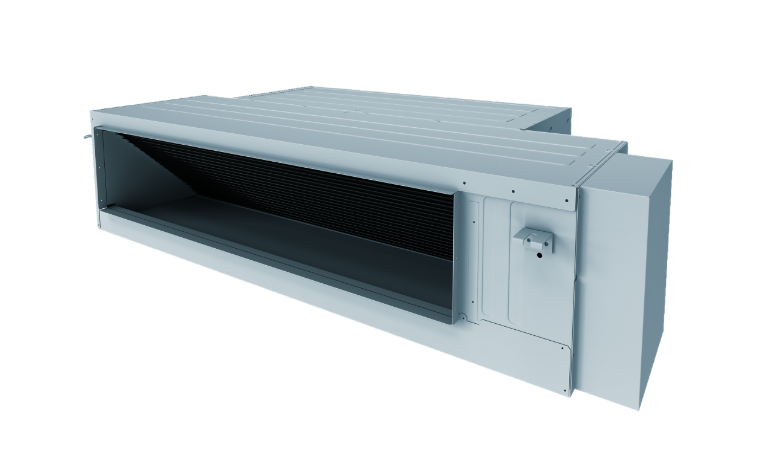

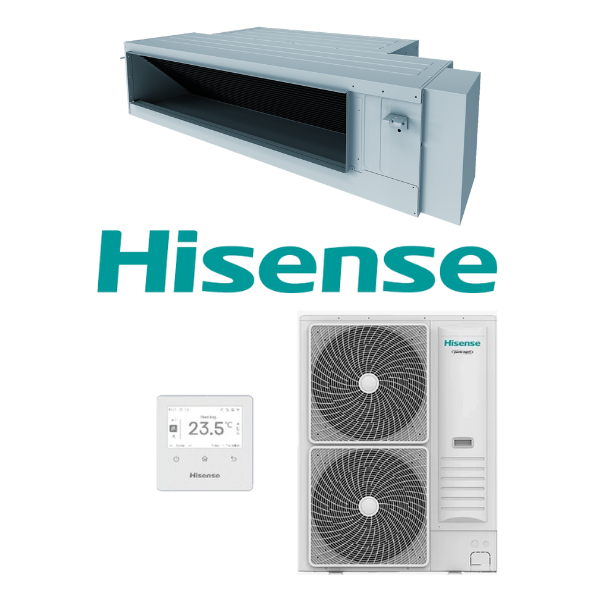

Hisense AUD-140UX4RSH1-SET 14.0kW Ducted Single Phase System - Includes Programmable Zone Controller and Outdoor Unit AUW-140U4RH1

Zone Control– Capability to control or customise the air conditioning in different zones or rooms.
Large Airflow- Experience high airflow pressure with various piping options.
Wi-Fi Control– Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
Easy Installation– The design allows for convenient installation and maintenance.

(AUD-140UX4RSH1-SET)

System	AUD-85XR4RSH1-SET	AUD-100XR4RSH1-SET	AUD-125UX4RSH1-SET	AUD-140UX4RSH1-SET	AUD-160UX4RSH1-SET
Indoor Unit	AUD-85XR4RSH1	AUD-100XR4RSH1	AUD-125XR4RSH1	AUD-140XR4RSH1	AUD-160XR4RSH1
Outdoor Unit	AUW-85U4RK1	AUW-100U4RK1	AUW-125U4RH1	AUW-140U4RH1	AUW-160U4RH1
Rated Cooling Capacity (kW)	8.5	10.0	12.5	14.0	16.0
Rated Heating Capacity (kW)	10.0	11.0	15.0	17.0	18.9
Rated Input Power Cool/Heat (kW)	2.54 / 2.60	3.03 / 2.90	3.61 / 3.78	4.09 / 4.25	4.78 / 4.87
Rated Input Current Cool/Heat (A)	11.4 / 11.5	13.6 / 13.0	16.2 / 16.9	18.3 / 19.0	21.2 / 21.6
Power Supply	1 Phase, 220-240V, 50Hz
EER / COP	3.35 / 3.85	3.30 / 3.79	3.60 / 4.10	3.55 / 4.00	3.35 / 3.88
Airflow (H/M/L) (L/s)	800 / 640 / 555		1020 / 810 / 710		1120 / 920 / 780
External Static Pressure (Pa)	250
Indoor Sound Pressure Level @1.5m (H/M/L) (dBA)	50 / 47 / 44		56 / 53 / 49		58 / 55 / 51
Indoor Unit Net Dimensions (HxWxD) (mm)	360 x 1520 x 820
Indoor Unit Shipping Dimensions (HxWxD) (mm)	440 x 1650 x 1055
Outdoor Unit Net Dimensions (HxWxD) (mm)	750 x 900 x 340		1460 x 975 x 330
Outdoor Unit Shipping Dimensions (HxWxD) (mm)	820 x 1060 x 450		1590 x 1040 x 435
Indoor Unit Net Weight (kg)	60
Outdoor Unit Net Weight (kg)	57.5		98
Refrigerant Type	R32
Pipe Sizes (Liquid/Gas) (mm)	9.52 / 15.88
Supply Air Opening (mm) HxW	245 x 1152
Return Air Opening (mm) HxW	2 x 400 (Oval)
Operating Range Cool/Heat (C)	-10 to 46 / -15 to 24		-10 to 50 / -15 to 24
Outdoor Sound Pressure Level @1m (dBA)	60		62
Outdoor Sound Power Level (dBA)	69		77
Maximum Pipe Length (m)	50		75
Maximum Height Drop (m)	30

SKU	AUD-140UX4RSH1-SET
Brand	Hisense
Shipping Weight	164.0000kg
Shipping Cubic	1.485246000m3
Unit Of Measure	ea
