LG UBN24RKIT 6.8kW Ducted Slim Air Conditioning System

UBN24R / UU24WR LG Ducted

$2,618.00 Incl GST
$2,380.00 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

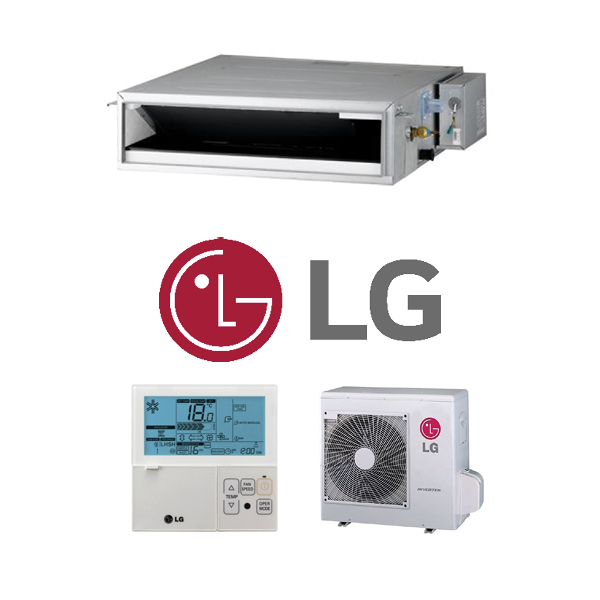

LG UBN24R 6.8kW Slim Ducted Split Air Conditioner - Includes Outdoor Unit UU24WR

The Ultimate combination of Stylish Design and Smart Technology. Designed for the way you live, our ducted air conditioners can be installed in a new home or tailored to an existing one. Our ducted units can typically be installed discreetly in residential houses - so you can create a space that’s cool, comfortable and stylish.

Features:

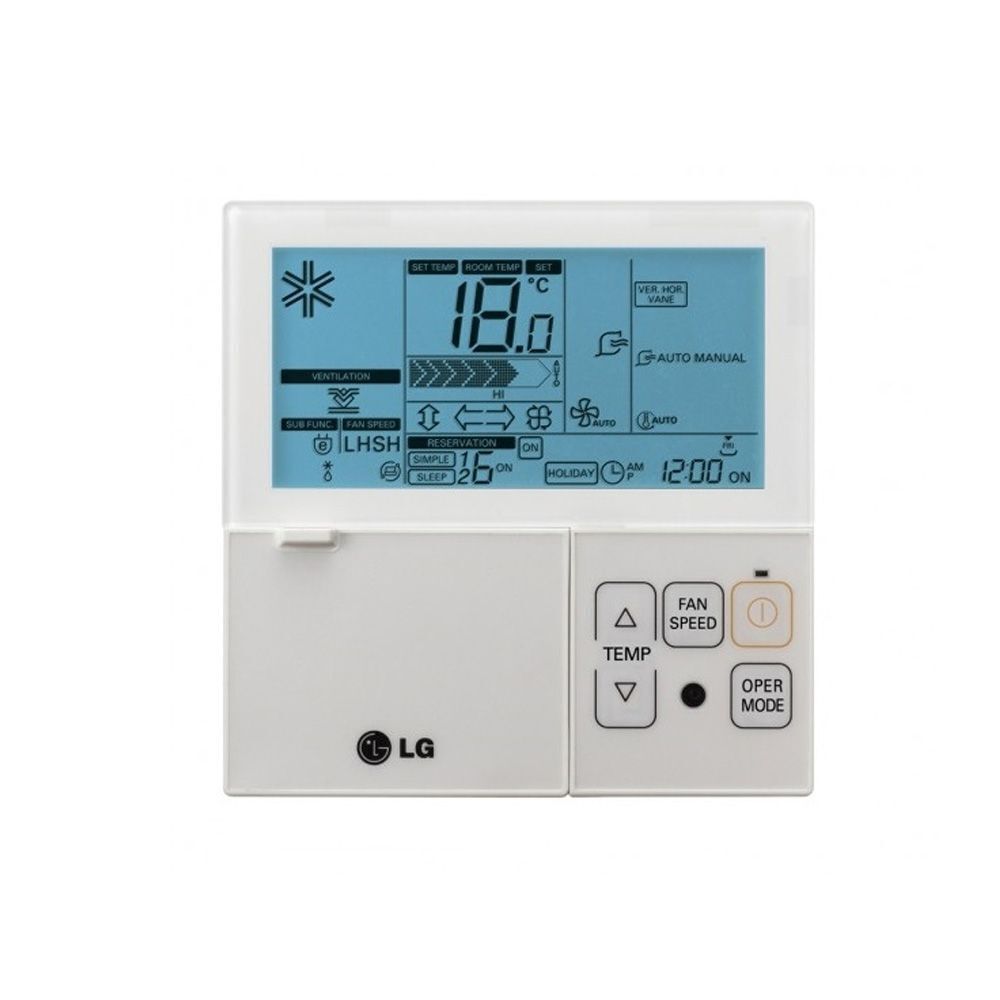

  • Optional Wi-Fi Control
  • Improved Energy Efficiency
  • Zone Control

(UBN24RKIT)

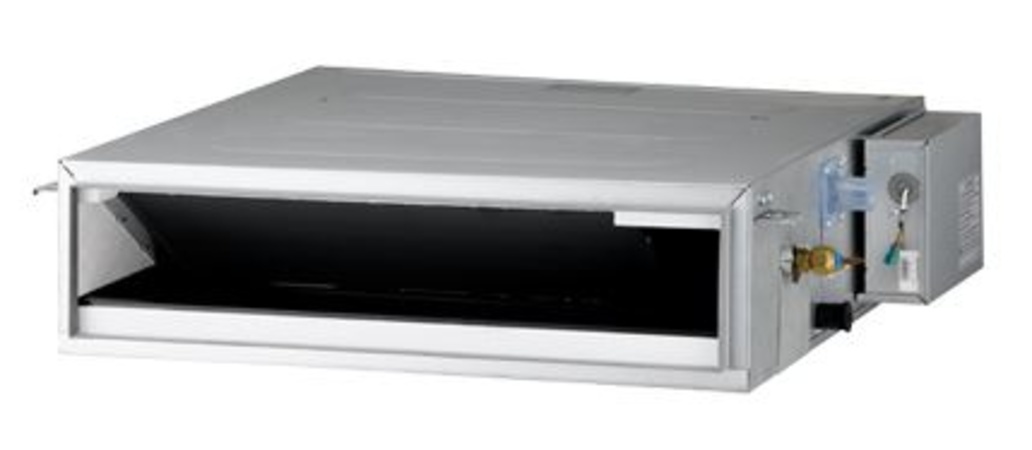

Indoor Unit UBN24R

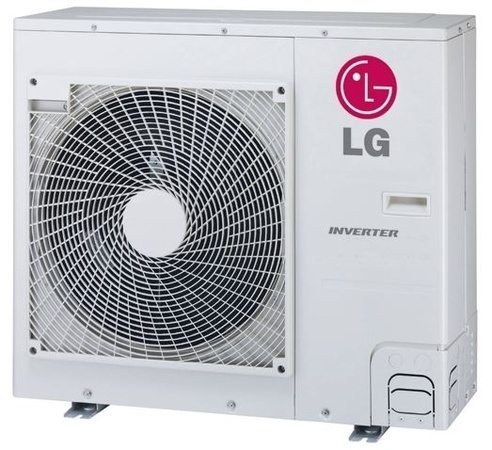

Outdoor Unit UU24WR
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 6.8
Heat (kW) 7.5
Capacity Range
Cool (kW) 2.8 ~ 7.8
Heat (kW) 3.2 ~ 8.3
Power Input (Rated)
Cool (kW) 2.10
Heat (kW) 2.20
Running Current
Cool (A) 9.00
Heat (A) 9.80
EER/COP 3.28 / 3.40
AEER/ACOP 3.26 / 3.38
Dimensions (HxWxD)
Indoor (mm) 270 x 900 x 700
Outdoor (mm) 834 x 950 x 330
Weight
Indoor (kg) 24.2
Outdoor (kg) 56.1
Refrigerant Type R32
Refrigerant Amount (kg) 1.60
Pre-Charged to Pipe (m) 7.5
Max Pipe Length (m) 50
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Drain Size (mm) OD 32 / ID 25
Air Connection Size
Supply (mm) 200 x 857
Return (mm) 231 x 850
Ambient Temperature
Cool (°C) -15 ~ 48
Heat (°C) -18 ~ 18
Indoor Airflow Rate
(l/s) 170 ~ 396
Max External Static Pressure (Pa) 150
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 35 / 34 / 32
Heat (dBA) 35 / 34 / 32
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 48
Heat (dBA) 52
Outdoor EPA Sound Power Level (H)
(dBA) 67
SKU UBN24RKIT
Brand LG
Shipping Weight 80.3000kg
