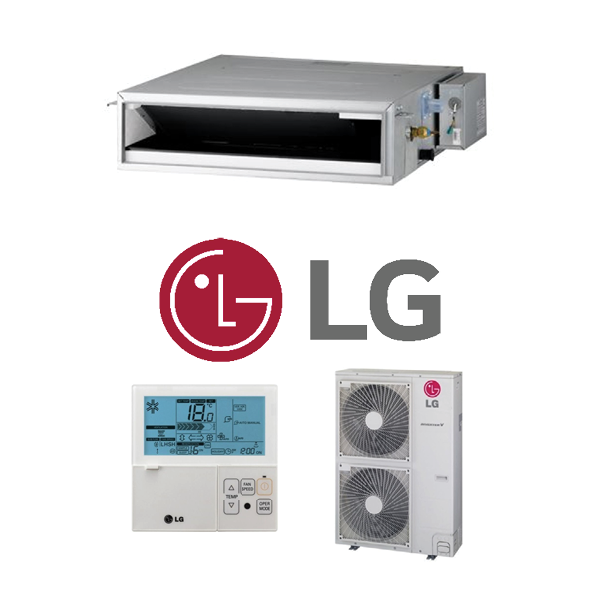

LG UBN36RKIT 9.5kW Ducted Slim Air Conditioning System

UBN36R / UU36WR LG Ducted

$3,685.00 Incl GST
$3,350.00 Excl GST
In Stock


LG UBN36R 9.5kW Slim Ducted Split Air Conditioner - Includes Outdoor Unit UU36WR

The Ultimate combination of Stylish Design and Smart Technology. Designed for the way you live, our ducted air conditioners can be installed in a new home or tailored to an existing one. Our ducted units can typically be installed discreetly in residential houses - so you can create a space that’s cool, comfortable and stylish.

Features:

  • Optional Wi-Fi Control
  • Improved Energy Efficiency
  • Zone Control

(UBN36RKIT)

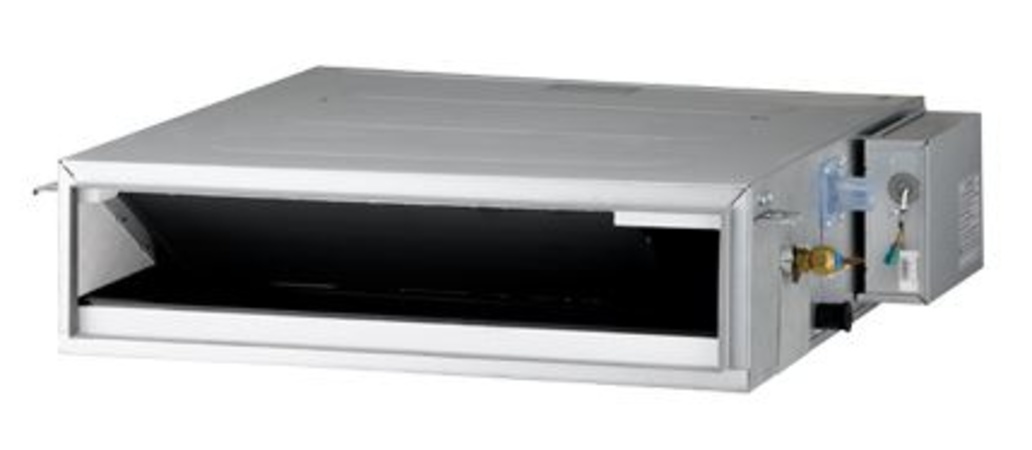

Indoor Unit UBN36R

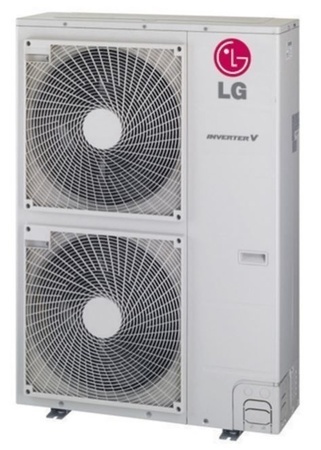

Outdoor Unit UU36WR
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 9.5
Heat (kW) 10.8
Capacity Range
Cool (kW) 4.5 ~ 13.0
Heat (kW) 5.0 ~ 13.7
Power Input (Rated)
Cool (kW) 2.43
Heat (kW) 2.85
Running Current
Cool (A) 10.60
Heat (A) 12.40
EER/COP 3.91 / 3.79
AEER/ACOP 3.83 / 3.72
Dimensions (HxWxD)
Indoor (mm) 270 x 1250 x 700
Outdoor (mm) 1380 x 950 x 330
Weight
Indoor (kg) 38.5
Outdoor (kg) 87.5
Refrigerant Type R32
Refrigerant Amount (kg) 3.00
Pre-Charged to Pipe (m) 7.5
Max Pipe Length (m) 85
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Drain Size (mm) OD 32 / ID 25
Air Connection Size
Supply (mm) 200 x 1206
Return (mm) 230 x 1205
Ambient Temperature
Cool (°C) -15 ~ 48
Heat (°C) -18 ~ 18
Indoor Airflow Rate
(l/s) 343 ~ 643
Max External Static Pressure (Pa) 150
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 36 / 34 / 33
Heat (dBA) 36 / 34 / 33
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 52
Heat (dBA) 54
Outdoor EPA Sound Power Level (H)
(dBA) 66
SKU UBN36RKIT
Brand LG
Shipping Weight 126.0000kg
