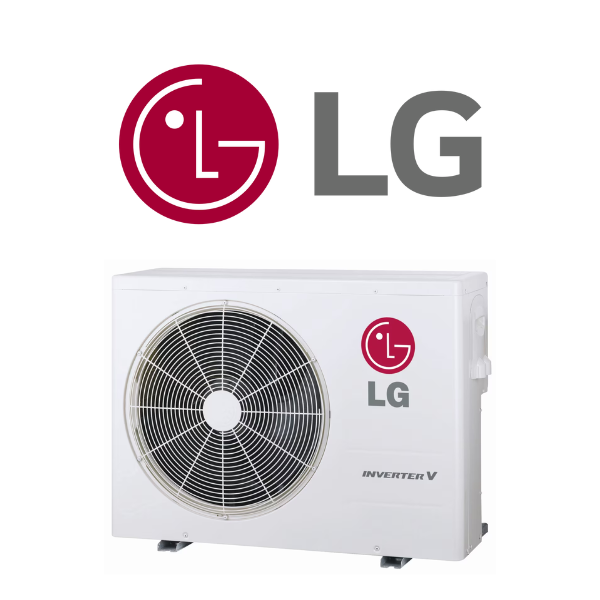

LG UHXM55MA2 5.3kW Outdoor Multi Air Conditioning Unit (3 Ports)

LG UHXM55MA2 5.3kW Outdoor Multi Unit (3 Ports)

Easy & efficient installation of outdoor unit will provide the best solution for small offices and shops in addition to apartments. Using LG inverter technology, LG Multi achieves a wide range of capacity which is from 25% ~ 120% in cooling mode and from 25% ~ 120% in heating mode to facilitate faster cooling and heating. The LG multi system achieves operation up to Max. ambient conditions of 46oC in cooling mode and down to -10 oC in heating mode.

Key Features

BLDC (Brushless Direct Current motor) Compressor
Optimised Heat Exchanger Path
Wide Operating Conditions
Improved Grille and Fan

(UHXM55MA2)

Outdoor Unit Name	UHXM55MA2	UHXM70MA2	UHXM90MA1
Cooling Capacity (kW)	5.3	7.0	8.8
Heating Capacity (kW)	6.3	8.4	10.1
Power Input Cool/Heat (kW)	1.29 / 1.53	1.67 / 1.80	2.20 / 2.20
Running Current Cool/Heat (A)	6.0 / 7.0	7.2 / 8.1	9.9 / 9.8
EER / COP	4.57 / 4.15	4.59 / 4.59	4.26 / 4.58
Airflow Rate I/s	517	500
Sound Pressure Cool/Heat dBA	50 / 52	51 / 53
Unit Dimensions (HxWxD) (mm)	655 x 870 x 320	834 x 950 x 330
Unit Weight (kg)	45	64
Refrigerant Type/Charge (g)	R410A / 1700	R410A / 3200
Refrigerant Additional Charge (g/m)	20
Operation Range Cool/Heat Min-Max CDB	-10 to 48 / -18 to 18
Circuit Breaker (A)	20	25
Piping Length Total/Per Branch (m)	50 / 25	70 / 25	75 / 25
Piping Elevation Difference (m)	IDU-ODU 15 / ODU-IDU 7.5
Pipe Sizes (mm) (Liquid/Gas)	(6.35 + 9.52)x3	(6.35 + 9.52)x4	(6.35 + 9.52)x5

SKU	UHXM55MA2
Brand	LG
Shipping Weight	45.0000kg
Shipping Width	0.320m
Shipping Height	0.655m
Shipping Length	0.870m
Shipping Cubic	0.182352000m3
Unit Of Measure	ea
