Best Prices Mitsubishi Electric GK-3509SA-AUS - Air Conditioner Low Cost Installation Brisbane

Mitsubishi Electric GK-3509SA-AUS Air Curtain Front Inlet (900mm 650 I/s) - Industrial & Light Commercial

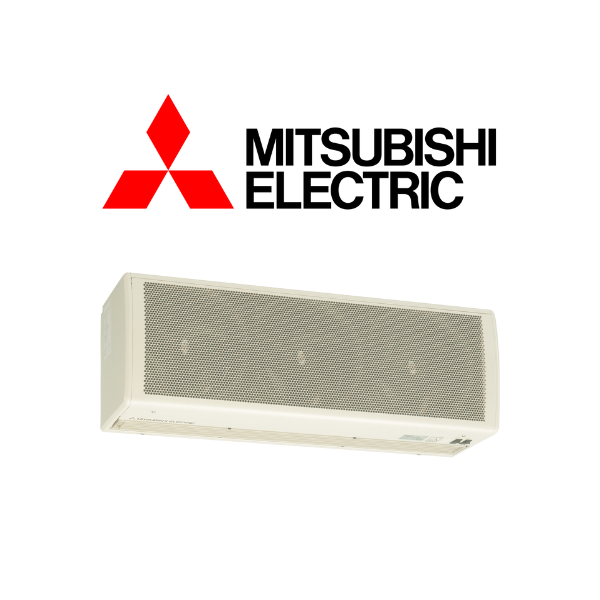

Mitsubishi Electric Front Inlet Air Curtain - GK-3509SA-AUS

Mitsubishi Electric air curtains are the perfect way to provide your premises with a comfortable, clean and hygienic environment while saving energy with a quiet, efficient and powerful operation. The air curtain not only insulates temperature efficiently (i.e. preventing loss of cool air during cooling and heat loss during heating) it can protect your premises from unpleasant elements found in the external environment.

Key Features:

Adjustable Airflow Angle
Flexible Installation
Rectification plate
Shut-Out
Sustains Temperature
Zoning in open spaces

(GK-3509SA-AUS)

System Name	GK-3509SA-AUS	GK-3512SA-AUS
Air Volume (Hi/Lo) (l/s)	600-615 / 497-564	800-867 / 663-752
Air Volume (Hi/Lo) (m3/h)	2160-2340 / 1790-2030	2880-3120 / 2380-2700
Running Current (Hi/Lo) (A)	1.1 / 1.1	1.5 / 1.5
Input Power (Hi/Lo)	250-265 / 250-270	335-355 / 335-360
Air Velocity Max (Hi/Lo) (m/sec)	16.0-17.5 / 12.0-14.0
Noise (Hi/Lo) (dB)	66.0-68.5 / 63.0-66.0	67.5-70.0 / 64.5-67.5
Power Supply	Single Phase, 50Hz, 220-240V
Starting Current (A)	2.1 / 1.9	2.8 / 2.6
Dimensions (HxWxD) (mm)	300 x 900 x 238	300 x 1180 x 238
Weight (kg)	20.0	25.0

SKU	GK-3509SA-AUS
Brand	Mitsubishi Electric
Shipping Weight	20.0000kg
Shipping Width	0.238m
Shipping Height	0.300m
Shipping Length	0.900m
Shipping Cubic	0.064260000m3
Unit Of Measure	ea
