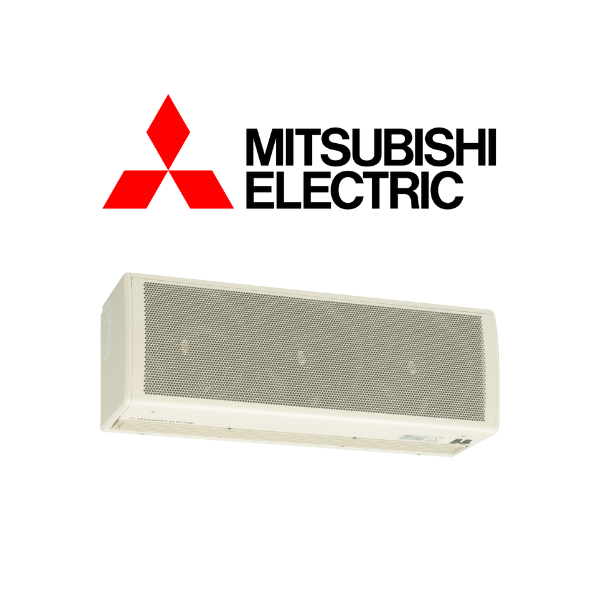

Mitsubishi Electric GK-3512SA-AUS Air Curtain Front Inlet (1180mm 867 I/s) - Industrial & Light Commercial

Mitsubishi Electric 1180mm Front Inlet Air Curtain

$1,112.00 Incl GST
$1,010.91 Excl GST
In Stock


Mitsubishi Electric Front Inlet Air Curtain - GK-3512SA-AUS

Mitsubishi Electric air curtains are the perfect way to provide your premises with a comfortable, clean and hygienic environment while saving energy with a quiet, efficient and powerful operation. The air curtain not only insulates temperature efficiently (i.e. preventing loss of cool air during cooling and heat loss during heating) it can protect your premises from unpleasant elements found in the external environment.

Key Features:

  • Adjustable Airflow Angle
  • Flexible Installation
  • Rectification plate
  • Shut-Out
  • Sustains Temperature
  • Zoning in open spaces

(GK-3512SA-AUS)

System Name GK-3509SA-AUS GK-3512SA-AUS
Air Volume (Hi/Lo) (l/s) 600-615 / 497-564 800-867 / 663-752
Air Volume (Hi/Lo) (m3/h) 2160-2340 / 1790-2030 2880-3120 / 2380-2700
Running Current (Hi/Lo) (A) 1.1 / 1.1 1.5 / 1.5
Input Power (Hi/Lo) 250-265 / 250-270 335-355 / 335-360
Air Velocity Max (Hi/Lo) (m/sec) 16.0-17.5 / 12.0-14.0
Noise (Hi/Lo) (dB) 66.0-68.5 / 63.0-66.0 67.5-70.0 / 64.5-67.5
Power Supply Single Phase, 50Hz, 220-240V
Starting Current (A) 2.1 / 1.9 2.8 / 2.6
Dimensions (HxWxD) (mm) 300 x 900 x 238 300 x 1180 x 238
Weight (kg) 20.0 25.0
SKU GK-3512SA-AUS
Brand Mitsubishi Electric
Shipping Weight 25.0000kg
Shipping Width 0.238m
Shipping Height 0.300m
Shipping Length 1.180m
Shipping Cubic 0.084252000m3
Unit Of Measure ea
