Best Prices Mitsubishi Electric Cassette MLZKP25VGKIT 2.5kW Air Conditioning System Low Cost Install

Mitsubishi Electric One Way Cassette MLZKP25VGKIT 2.5kW 1 Phase Wireless Inverter Air Conditioning System

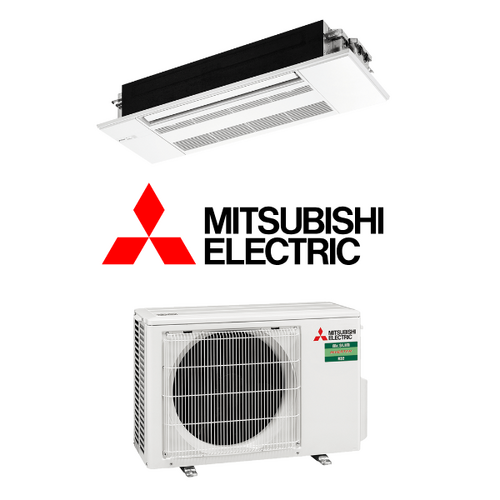

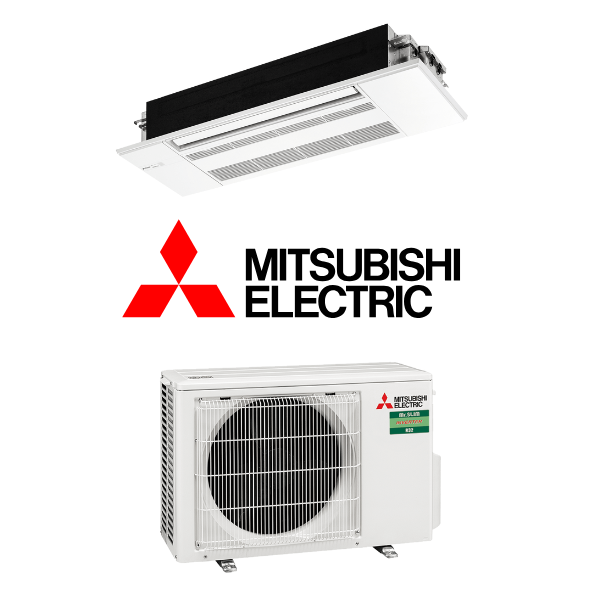

Mitsubishi Electric MLZKP25VGKIT 2.5kW Single Phase One-Way Cassette Air Conditioner - Includes Outdoor Unit, Grille and Wireless Controller

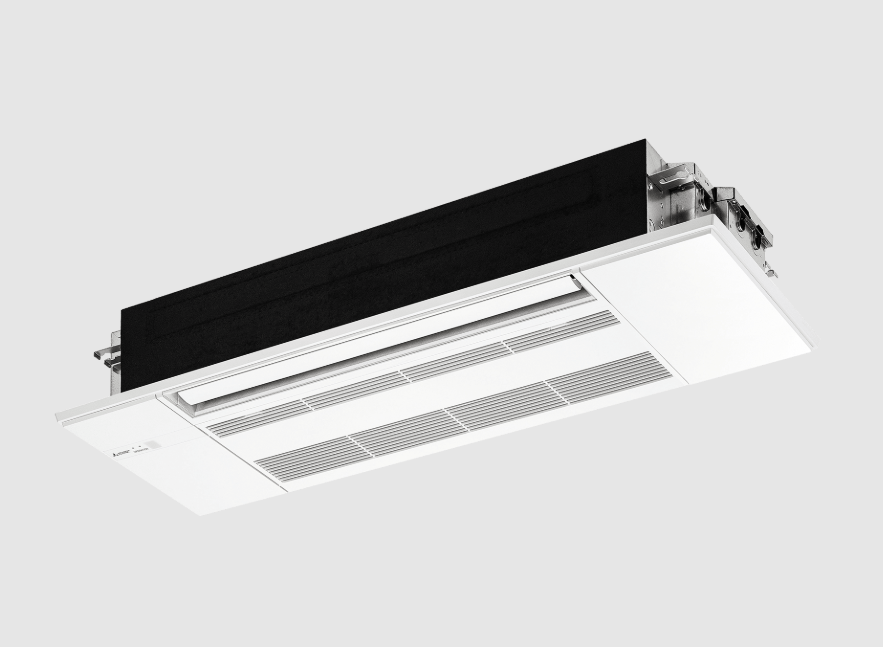

Designed to suit modern interiors, the MLZ-KP Series 1 way ceiling cassette air conditioner delivers quiet, efficient comfort in a low-profile design. Its slimline form fits neatly into tight ceiling spaces, offering reliable performance without compromising room layout or aesthetics - ideal for homes with limited wall space.

Key Features:

1-Way Airflow
Sleek and Slimline Design - Only 185mm High
Auto Vane Control
Horizontal Airflow
Set Airflow According to Ceiling Height
Weekly Timer
Multi System Connection
Optional Wi-Fi Control - Adaptor Required
Includes MLP-444W Grille and Remote Controller

(MLZKP25VGKIT)

System		MLZKP25VGKIT	MLZKP35VGKIT	MLZLP50VGKIT
Indoor Unit		MLZ-KP25VG-A1	MLZ-KP35VG-A1	MLZ-KP50VG-A1

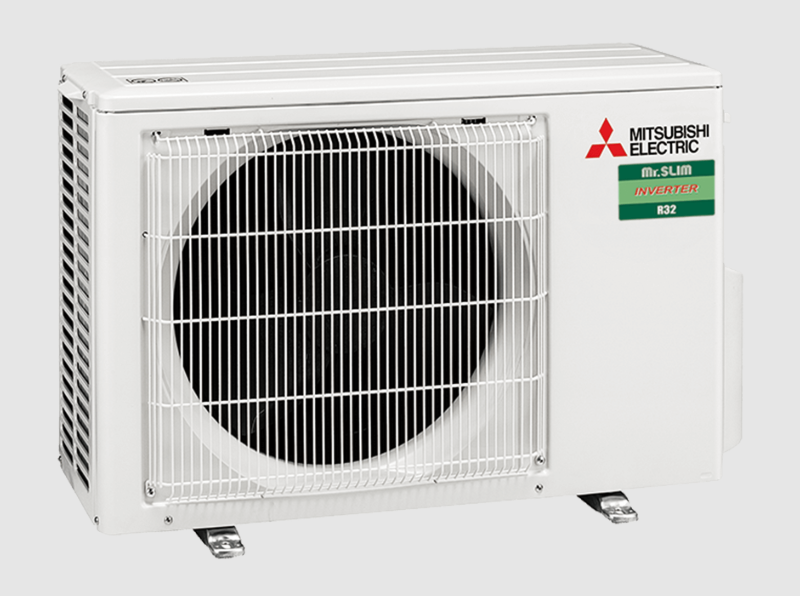

Outdoor Unit		SUZ-M25VAD-A.TH	SUZ-M35VAD-A.TH	SUZ-M50VAD-A.TH
Cooling Capacity Rated/Min-Max	kW	2.5 (1.5-3.2)	3.5 (1.5-4.1)	5.0 (2.3-5.5)
Heating Capacity Rated/Min-Max	kW	3.2 (1.3-4.2)	4.1 (1.3-4.7)	6.0 (1.7-6.8)
Power Supply		1 Phase, 230V, 50/60Hz
EER/COP		4.23 / 4.05	3.80 / 3.62	3.59 / 3.27
Total Input Rated Cool/Heat	kW	0.59 / 0.79	0.90 / 1.13	1.37 / 1.83
Star Rating Cool/Heat		3.5 / 3.5	3.0 / 2.5	2.5 / 2.0
Rated Running Current Cool/Heat	A	3.3 / 4.0	4.2 / 5.0	6.1 / 8.1
Sound Pressure Level In (Slo/Lo/Mid/Hi) Cooling	dBA	27 - 31 - 34 - 38	27 - 32 - 36 - 40	29 - 36 - 41 - 47
Sound Pressure Level Out (PWL) Cooling		45(59)	48(62)	48(64)
Sound Pressure Level In (Slo/Lo/Mid/Hi) Heating		26 - 29 - 34 - 37	26 - 32 - 36 - 40	26 - 37 - 42 - 48
Sound Pressure Level Out (PWL) Heating		46(59)	48(63)	49(66)
Air Volume (In) Slo/Lo/Mid/Hi Cooling	L/s	100 - 120 - 133 - 147	100 - 122 - 140 - 157	100 - 138 - 163 - 190
Air Volume (In) Slo/Lo/Mid/Hi Heating	L/s	100 - 117 - 137 - 153	100 - 128 - 147 - 165	100 - 147 - 172 - 197
Max Running Current	A	7.20	8.90	13.90
Indoor Unit Dimensions HxWxD	mm	185 x 1102 x 360
Panel Dimensions HxWxD		24 x 1200 x 424
Outdoor Unit Dimensions HxWxD		550 x 800 x 285		714 x 800 x 285
Indoor Unit Weight	kg	15.5
Panel Weight		3.5
Outdoor Unit Weight		30	35	41
Pipe Sizes (Liquid/Gas)	mm	6.35 / 9.52		6.35 / 12.7
Max. Piping Length/Height	m	20 / 12		30 / 30
Outdoor Operating Range Cool/Heat	C	-10 to 52 / -10 to 24
Pre-Charge R32 Refrigerant	kg	0.65(7m)	0.90(7m)	1.20(7m)
Additional Refrigerant	g/m	20
