Mitsubishi Heavy (MHI) SRK25ZSA-W-Set 2.5kW Wall Split Air Conditioning System

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

This product has been superseded by DXK09ZSA-W

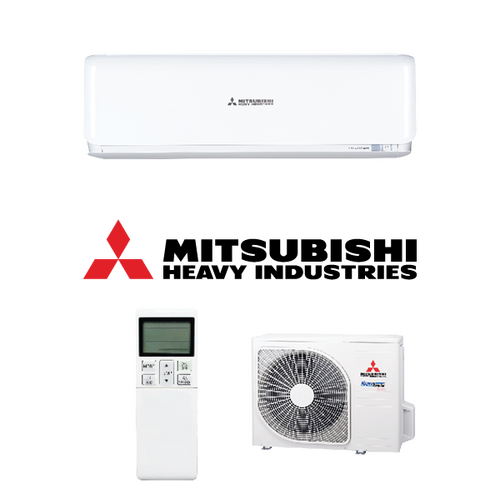

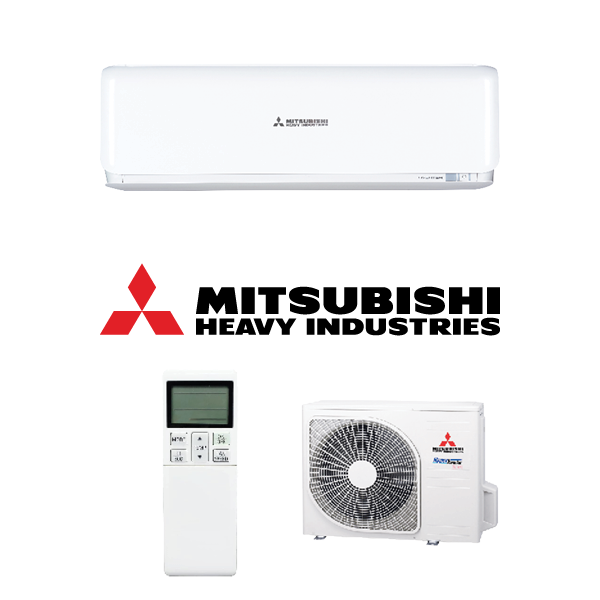

Mitsubishi Heavy Industries SRK25ZSA-W 2.5 kW Reverse Cycle Split System - Includes Outdoor Unit SRC25ZSA-W

Featuring a 5 star energy rating and coming packed with all the advanced features and functions that the Avanti series is known for, the 2.5kW Avanti reverse cycle split system is ideal for smaller rooms such as a single bedroom, guest bedroom, kid's room or a home office.

Features:

Modern and stylish design
3D Auto airflow for effective and even air distribution
Allergen clear system to capture and eliminate allergens
Energy efficient R32 refrigerant
Optional Wi-Fi control

(SRK25ZSA-W-Set)

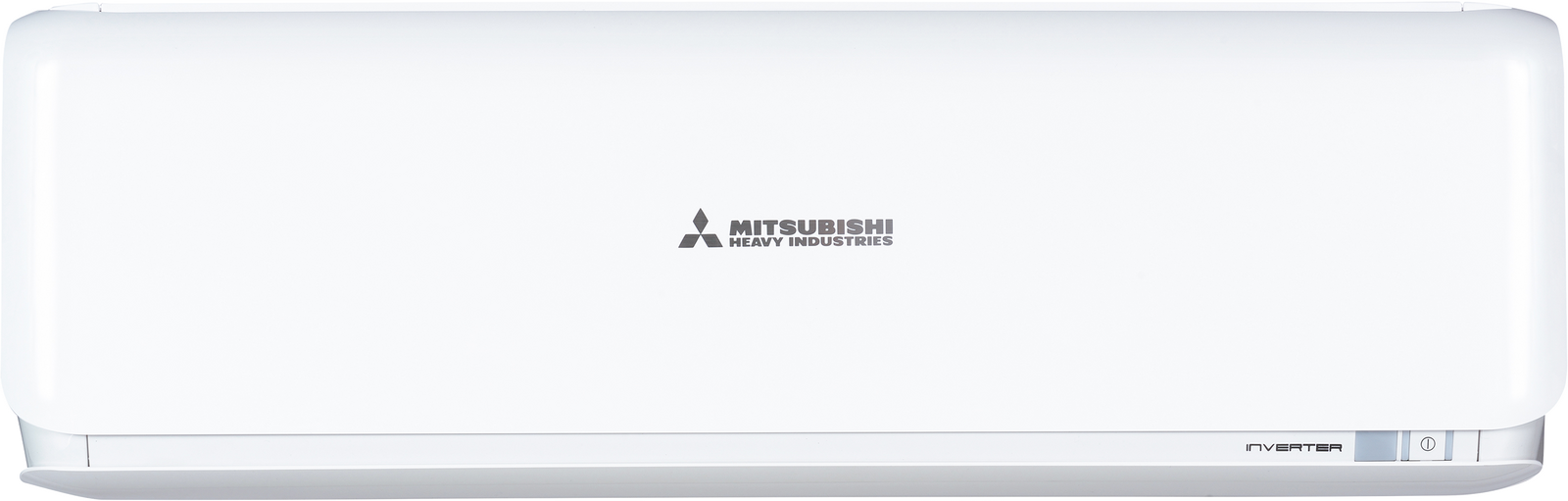

Indoor Unit

SRK25ZSA-W

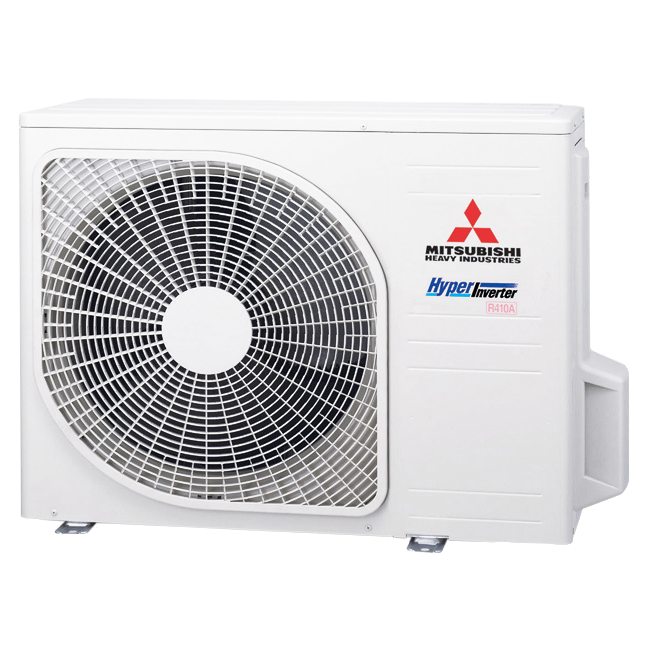

Outdoor Unit

SRC25ZSA-W

Power Supply

1 Phase, 220 ~ 240v, 50Hz

Rated Capacity

Cool (kW)	2.5
Heat (kW)	3.2

Capacity Range

Cool (kW)	0.9 - 3.5
Heat (kW)	0.9 - 5.2

Power Input (Rated)

Cool (kW)	0.51
Heat (kW)	0.65

Running Current

Cool (A)	2.50
Heat (A)	3.00

EER/COP

4.90 / 4.92

Energy Star Ratings

Cool	4.5 / 3.5 / 3.5
Heat	3.5 / 3.0 / 3.0

Dimensions (HxWxD)

Indoor (mm)	290 x 870 x 230
Outdoor (mm)	540 x 842 x 290

Weight

Indoor (kg)	10
Outdoor (kg)	34.5

Refrigerant Type

R32

Refrigerant Amount

(kg)

0.75

Pre-Charged to Pipe

(m)

Max Pipe Length

(m)

Max Level Difference

Indoor Higher (m)	10
Outdoor Higher (m)	10

Pipe Sizes

Liquid (mm)	6.35
Gas (mm)	9.52

Connection Type

Flare

Indoor Airflow Rate

Cool (l/s)	182 / 140 / 88 / 78
Heat (l/s)	237 / 182 / 110 / 88

Indoor Sound Pressure Level (H/SL)

(dBA)

40 / 31 / 22 / 19

Outdoor Sound Pressure Level (H/SL)

(dBA)

Outdoor EPA Sound Power Level (H)

(dBA)

SKU	SRK25ZSA-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	44.5000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
