Mitsubishi Heavy (MHI) SRK35ZSA-W-Set 3.5kW Wall Split Air Conditioning System

This product has been superseded by DXK12ZSA-W

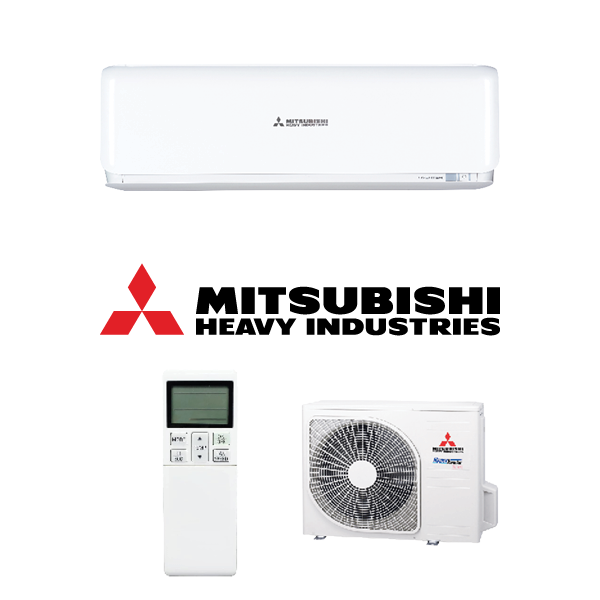

Mitsubishi Heavy Industries SRK35ZSA-W 3.5 kW Reverse Cycle Split System- Includes Outdoor Unit SRC35ZSA-W

With a stylish and modern design as well as all the advanced features and functions that the Avanti series is known for, the 3.5kW Avanti split system is ideal for heating and cooling small to medium spaces such as a double bedroom, small living room or sitting area.

Features:

Modern and stylish design
3D Auto airflow for effective and even air distribution
Allergen clear system to capture and eliminate allergens
Energy efficient R32 refrigerant

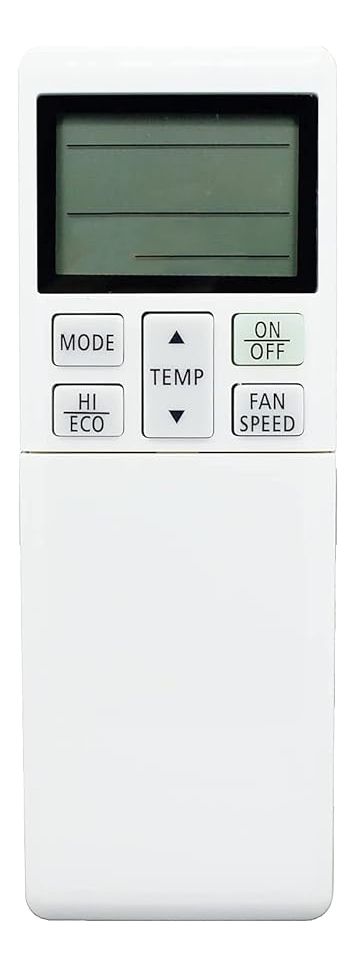

Optional Wi-Fi control

(SRK35ZSA-W-Set)

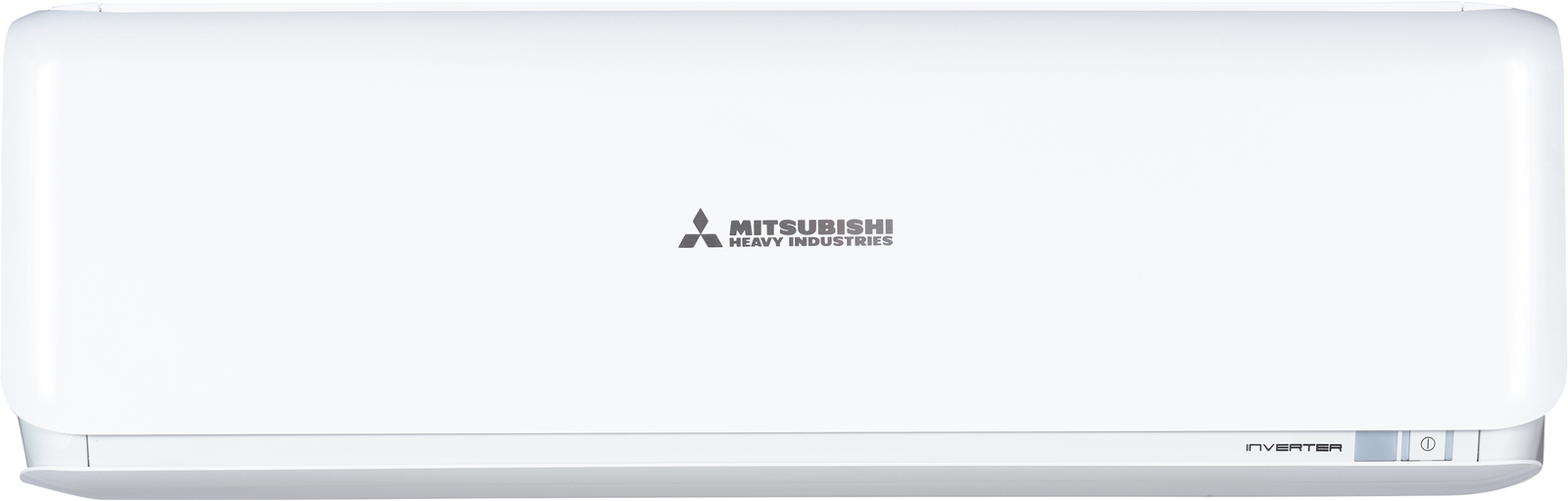

Indoor Unit

SRK35ZSA-W

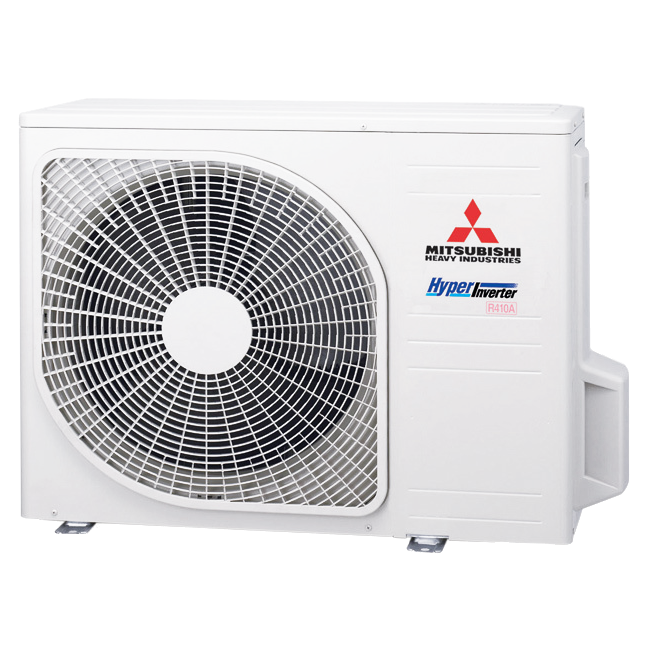

Outdoor Unit

SRC35ZSA-W

Power Supply

1 Phase, 220 ~ 240v, 50Hz

Rated Capacity

Cool (kW)	3.5
Heat (kW)	3.7

Capacity Range

Cool (kW)	0.9 - 4.4
Heat (kW)	0.9 - 5.4

Power Input (Rated)

Cool (kW)	0.82
Heat (kW)	0.81

Running Current

Cool (A)	3.70
Heat (A)	3.70

EER/COP

4.27 / 4.57

Energy Star Ratings

Cool	4.0 / 3.5 / 3.5
Heat	3.5 / 3.0 / 2.5

Dimensions (HxWxD)

Indoor (mm)	290 x 870 x 230
Outdoor (mm)	540 x 842 x 290

Weight

Indoor (kg)	10
Outdoor (kg)	34.5

Refrigerant Type

R32

Refrigerant Amount

(kg)

0.75

Pre-Charged to Pipe

(m)

Max Pipe Length

(m)

Max Level Difference

Indoor Higher (m)	10
Outdoor Higher (m)	10

Pipe Sizes

Liquid (mm)	6.35
Gas (mm)	9.52

Connection Type

Flare

Indoor Airflow Rate

Cool (l/s)	205 / 152 / 117 / 78
Heat (l/s)	250 / 193 / 117 / 88

Indoor Sound Pressure Level (H/SL)

(dBA)

43 / 34 / 27 / 19

Outdoor Sound Pressure Level (H/SL)

(dBA)

Outdoor EPA Sound Power Level (H)

(dBA)

SKU	SRK35ZSA-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	44.5000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
