Mitsubishi Heavy (MHI) SRK50ZSA-W-Set 5.0kW Wall Split Air Conditioning System

This product has been superseded by DXK18ZSA-W

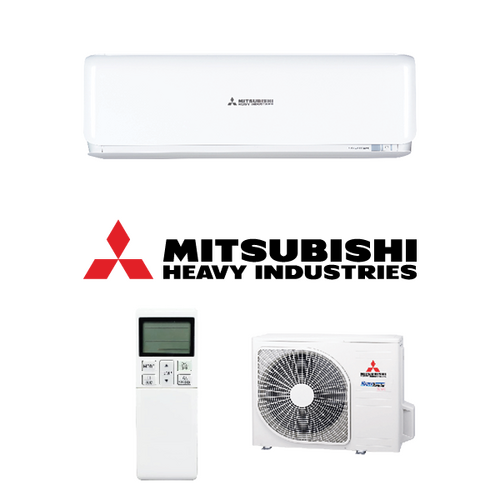

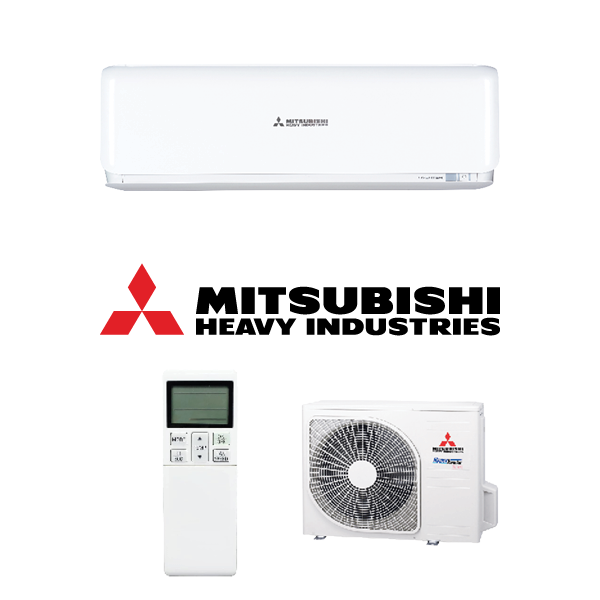

Mitsubishi Heavy Industries SRK50ZSA-W 5.0 kW Reverse Cycle Split System- Includes Outdoor Unit SRC50ZSA-W

With a stylish and modern design as well as all the advanced features and functions that the Avanti series is known for, the 5.0kW Avanti split system is ideal for heating and cooling medium sized rooms such as a main bedroom, medium sized living room or dining room.

Features:

Modern and stylish design
3D Auto airflow for effective and even air distribution
Allergen clear system to capture and eliminate allergens
Energy efficient R32 refrigerant
Optional Wi-Fi control

(SRK50ZSA-W-Set)

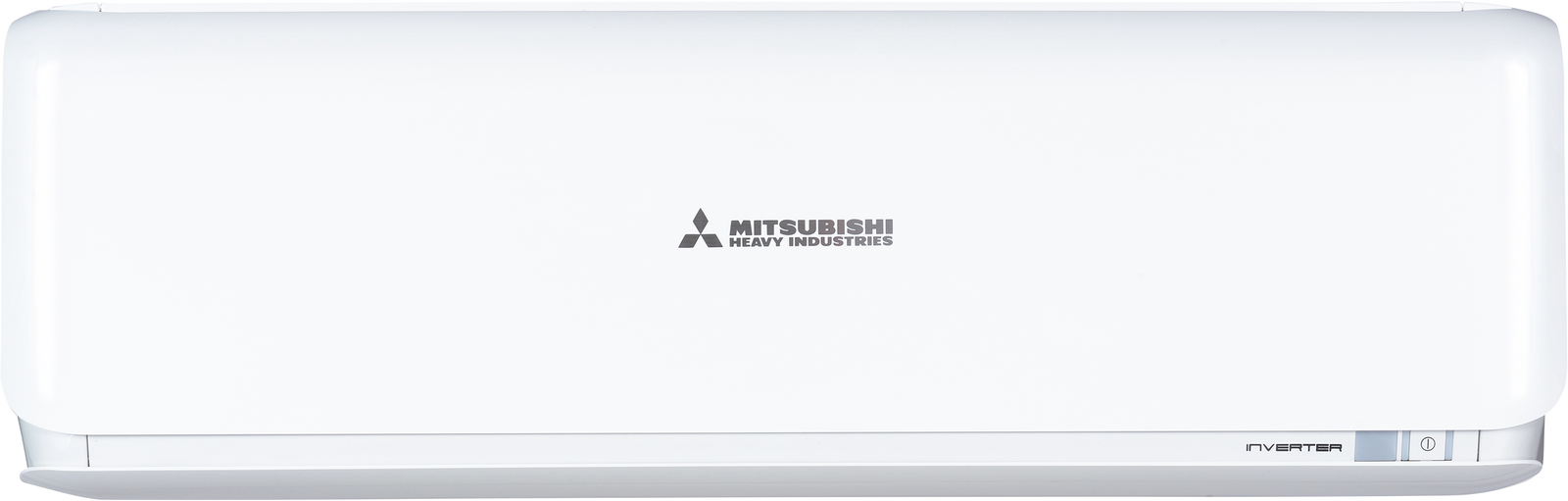

Indoor Unit

SRK50ZSA-W

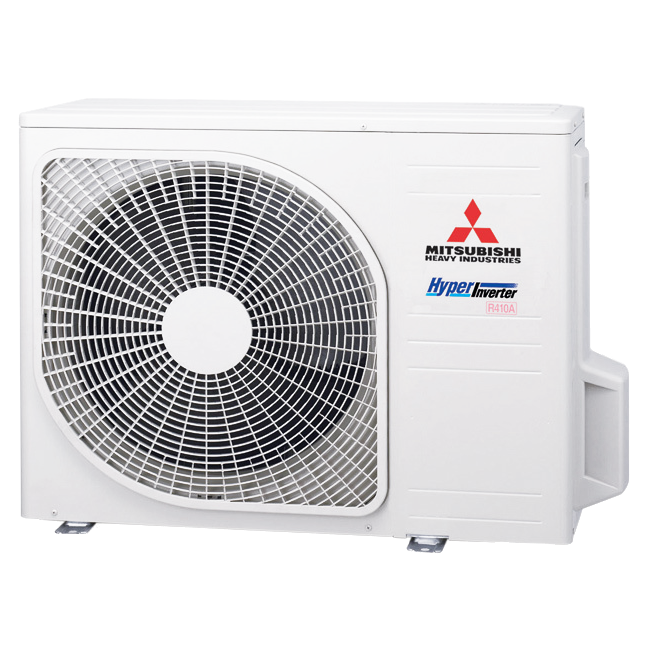

Outdoor Unit

SRC50ZSA-W

Power Supply

1 Phase, 220 ~ 240v, 50Hz

Rated Capacity

Cool (kW)	5.0
Heat (kW)	5.8

Capacity Range

Cool (kW)	1.2 - 5.5
Heat (kW)	1.2 - 6.6

Power Input (Rated)

Cool (kW)	1.39
Heat (kW)	1.49

Running Current

Cool (A)	5.90
Heat (A)	6.30

EER/COP

3.60 / 3.89

Energy Star Ratings

Cool	3.5 / 3.0 / 3.0
Heat	3.5 / 2.5 / 2.0

Dimensions (HxWxD)

Indoor (mm)	290 x 870 x 230
Outdoor (mm)	640 x 871 x 290

Weight

Indoor (kg)	10
Outdoor (kg)	43.5

Refrigerant Type

R32

Refrigerant Amount

(kg)

1.05

Pre-Charged to Pipe

(m)

Max Pipe Length

(m)

Max Level Difference

Indoor Higher (m)	15
Outdoor Higher (m)	15

Pipe Sizes

Liquid (mm)	6.35
Gas (mm)	12.70

Connection Type

Flare

Indoor Airflow Rate

Cool (l/s)	213 / 175 / 113 / 93
Heat (l/s)	253 / 198 / 152 / 113

Indoor Sound Pressure Level (H/SL)

(dBA)

43 / 36 / 28 / 22

Outdoor Sound Pressure Level (H/SL)

(dBA)

Outdoor EPA Sound Power Level (H)

(dBA)

SKU	SRK50ZSA-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	53.5000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
