Mitsubishi Heavy (MHI) SRK71ZRA-W-Set 7.1kW Wall Split Air Conditioning System

Mitsubishi Heavy (MHI) Wall Split

$1,935.00 Incl GST
$1,759.09 Excl GST
In Stock


This product has been superseded by DXK24ZRA-W

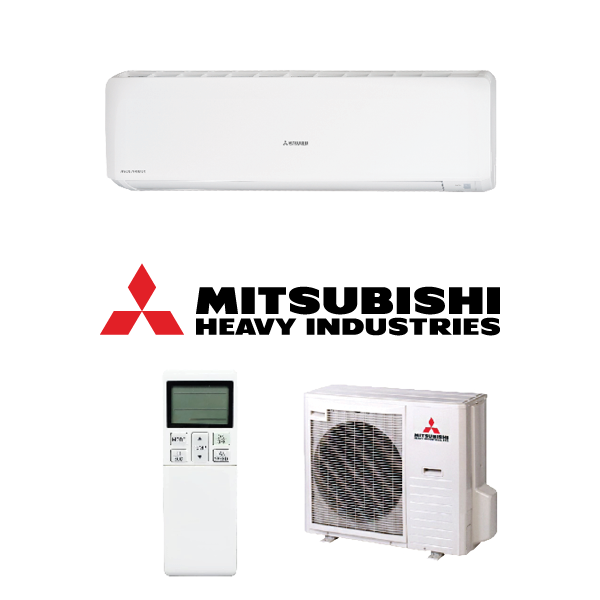

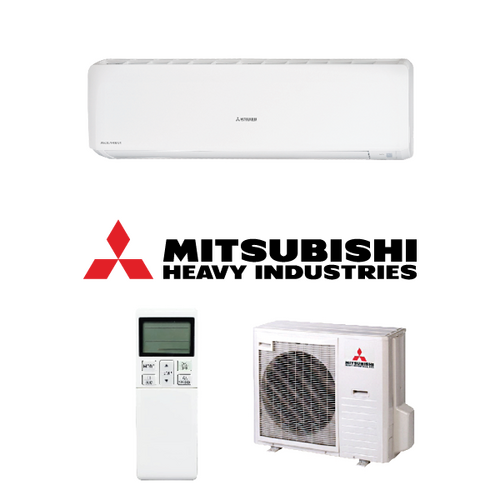

Mitsubishi Heavy Industries SRK71ZRA-W 7.1 kW Reverse Cycle Split System - Includes Outdoor Unit SRC71ZRA-W

Ideal for a large living or dining room or sitting room.

Features:

  • Advanced jet air technology delivering long reach airflow
  • Allergen clear system to capture and eliminate allergens
  • Wide range of convenient timer functions
  • Energy efficient R32 refrigerant
  • Optional Wi-Fi control

(SRK71ZRA-W-Set)

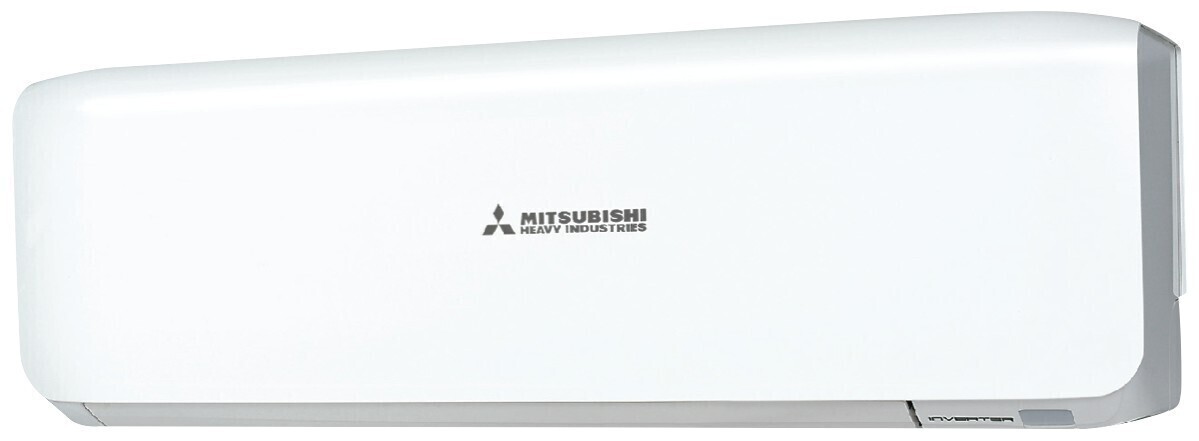

Indoor Unit SRK71ZRA-W

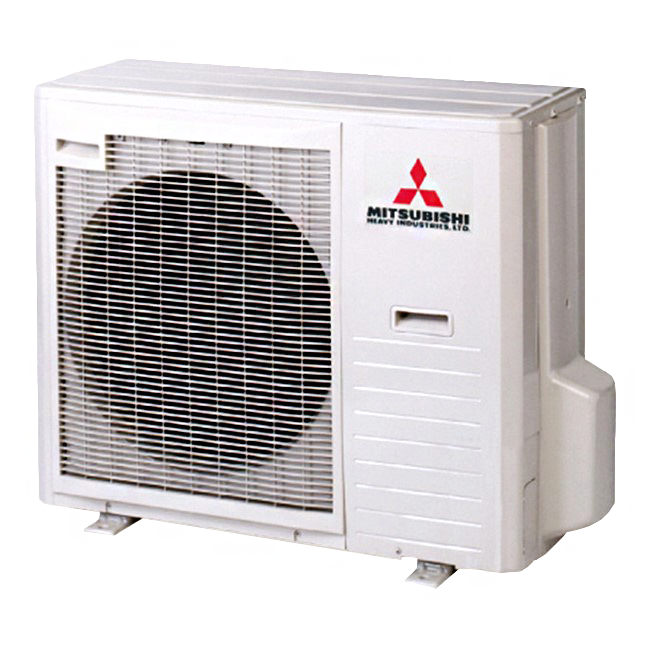

Outdoor Unit SRC71ZRA-W
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 7.1
Heat (kW) 8.0
Capacity Range
Cool (kW) 2.3 - 8.3
Heat (kW) 2.0 - 10.9
Power Input (Rated)
Cool (kW) 1.84
Heat (kW) 2.02
Running Current
Cool (A) 7.80
Heat (A) 8.60
EER/COP 3.86 / 3.96
Energy Star Ratings
Cool 3.5 / 3.5 / 3.5
Heat 3.0 / 2.5 / 2.0
Dimensions (HxWxD)
Indoor (mm) 339 x 1197 x 262
Outdoor (mm) 640 x 968 x 340
Weight
Indoor (kg) 15.5
Outdoor (kg) 58
Refrigerant Type R32
Refrigerant Amount (kg) 1.60
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 30
Max Level Difference
Indoor Higher (m) 20
Outdoor Higher (m) 20
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 15.88
Connection Type Flare
Indoor Airflow Rate
Cool (l/s) 342 / 310 / 270 / 174
Heat (l/s) 425 / 330 / 288 / 222
Indoor Sound Pressure Level (H/SL)
(dBA) 43 / 40 / 36 / 24
Outdoor Sound Pressure Level (H/SL)
(dBA) 53
Outdoor EPA Sound Power Level (H)
(dBA) 65
SKU SRK71ZRA-W-Set
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 73.5000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
