Mitsubishi Heavy (MHI) Akari SRR35ZS-W-Set 3.5kW Wall Split Bulkhead Air Conditioning System

SRR35ZS-W / SRC35ZSA-W Mitsubishi Heavy (MHI) Split

$1,372.99 Incl GST
$1,248.17 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

Mitsubishi Heavy Industries SRR35ZS-W-S 3.5kW Bulkhead Split System

Ideal for a small to medium-sized rooms such as a bedroom, small living room or sitting area.

Key Features:

  • Reverse Cycle model
  • Sleek compact design
  • Hi-Power mode for rapid heating and cooling
  • Dry Operation for dehumidification

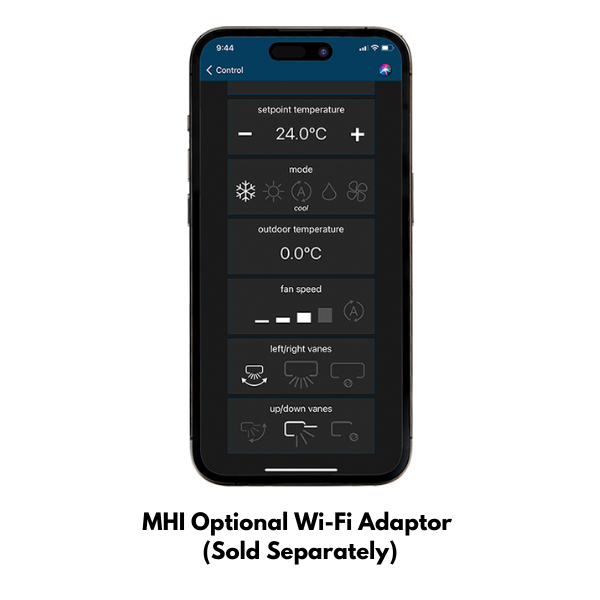

  • Optional Wi-Fi control

(SRR35ZS-W-Set)

Indoor Unit SRR35ZS-W

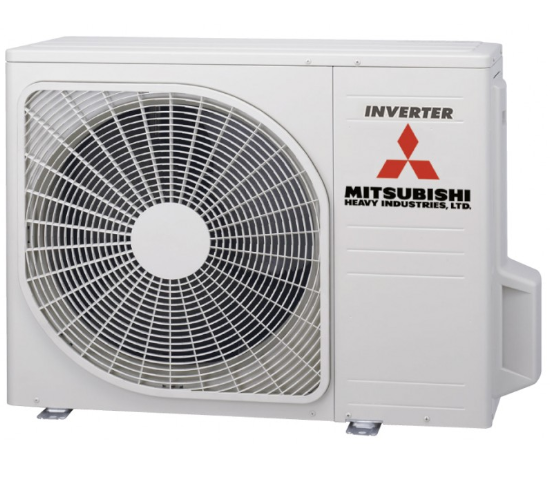

Outdoor Unit SRR35ZSA-W
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 3.5
Heat (kW) 4.2
Capacity Range
Cool (kW) 0.9 - 4.1
Heat (kW) 1.0 - 5.2
Power Input (Rated)
Cool (kW) 0.93
Heat (kW) 1.01
Running Current
Cool (A) 4.20
Heat (A) 4.50
EER/COP 3.76 / 4.16
Energy Star Ratings
Cool 3.5 / 3.0 / 3.0
Heat 3.0 / 2.5 / 2.5
Dimensions (HxWxD)
Indoor (mm) 200 x 870 x 500
Outdoor (mm) 540 x 842 x 290
Weight
Indoor (kg) 20.5
Outdoor (kg) 34.5
Refrigerant Type R32
Refrigerant Amount (kg) 0.78
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 20
Max Level Difference
Indoor Higher (m) 10
Outdoor Higher (m) 10
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 9.52
Connection Type Flare
Indoor Airflow Rate
Cool (l/s) 167 / 142 / 117 / 83
Heat (l/s) 175 / 158 / 142 / 108
Indoor Sound Pressure Level (H/SL)
(dBA) 38 / 34 / 31 / 25
Outdoor Sound Pressure Level (H/SL)
(dBA) 50
Outdoor EPA Sound Power Level (H)
(dBA) 62
SKU SRR35ZS-W-Set
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 55.0000kg
Shipping Cubic 0.218857000m3
Unit Of Measure ea

Warranty

Mitsubishi Heavy Industries Air-Conditioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
