Mitsubishi Heavy (MHI) Akari SRR60ZS-W-Set 5.6kW Wall Split Bulkhead Air Conditioning System
SRR60ZS-W / SRC60ZSXA-W Mitsubishi Heavy Wall Split
$1,846.36 Excl GST

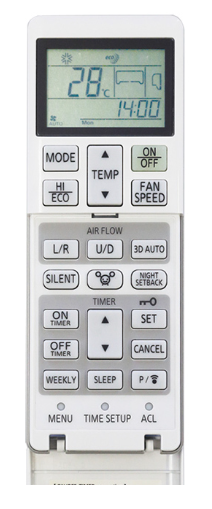

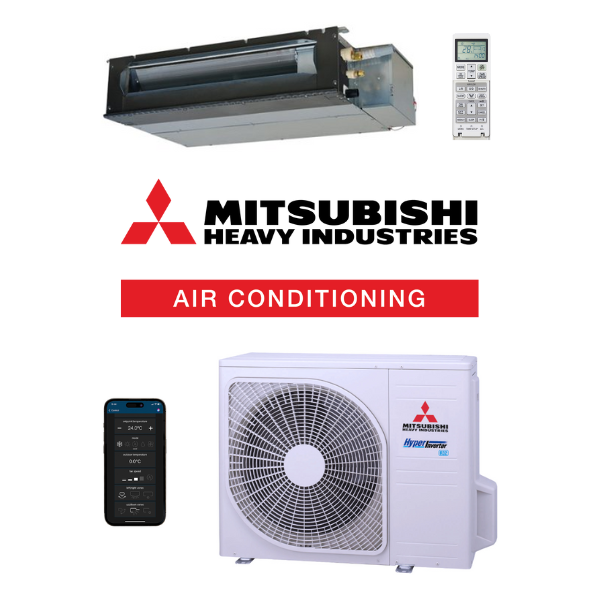

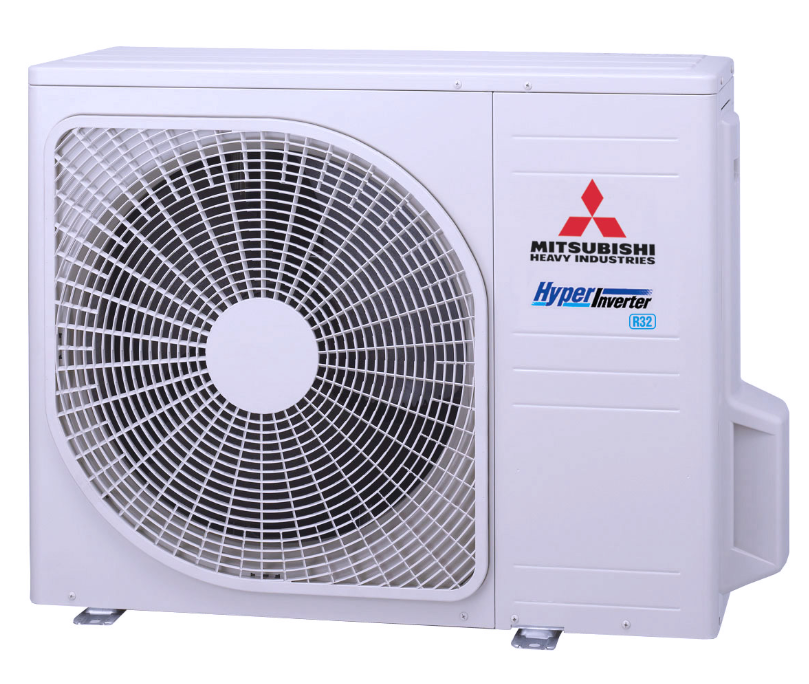

Mitsubishi Heavy Industries Akari Series SRR60ZS-W 5.6kW Bulkhead Split System (Optional Wi-Fi Adaptor) - Includes Outdoor Unit SRC25ZSA-W and Wireless Controller

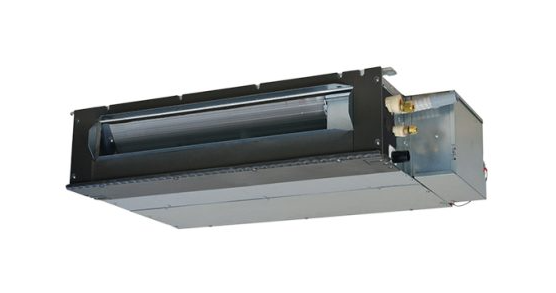

Ideal for a small to medium-sized rooms such as a bedroom, small living room or sitting area. The Akari® series of bulkhead systems are designed to sit entirely within your ceiling space and distribute air via grilles. Featuring a slim, low-profile design and measuring only 200mm in height, The Akari® series is the ideal choice for apartments with limited ceiling space. As well as incorporating a range of convenient features and functions the Akari® series is extremely quiet making it perfect for bedrooms.
Key Features:
- Reverse Cycle model
- Super Quiet Operation
- Sleek compact design
- Hi-Power mode for rapid heating and cooling
- Dry Operation for dehumidification

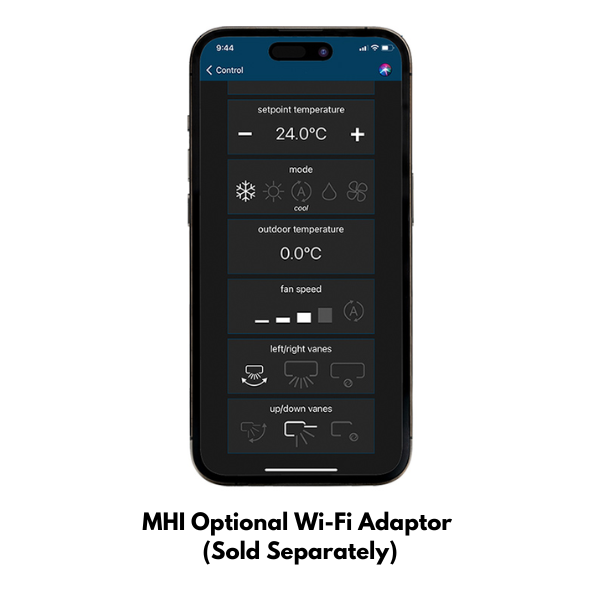

- Optional Wi-Fi control
- Wide Range of Timer and Scheduling Functions
- Built-in Drain Pump
(SRR60ZS-W-Set)
| System Name | SRR25ZS-W-SET | SRR35ZS-W-SET | SRR50ZS-W-SET | SRR60ZS-W-SET |
|---|---|---|---|---|
| Indoor Unit | SRR25ZS-W | SRR35ZS-W | SRR50ZS-W | SRR60ZS-W |
| Outdoor Unit | SRC25ZSA-W | SRC35ZSA-W | SRC50ZSXA-W | SRC60ZSXA-W |
| Power Supply | 1 Phase, 240V, 50Hz | |||
| Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 6.0 |
| Heating Capacity (kW) | 3.4 | 4.2 | 5.4 | 6.7 |
| EER/COP | 4.46 / 4.53 | 3.76 / 4.16 | 3.52 / 3.88 | 3.29 / 3.54 |
| Outdoor Sound Power dB(A) | 59 | 62 | 63 | 65 |
| Refrigerant Type/Amount (kg) | R32 / 0.78 | R32 / 1.3 | ||
| Max Pipe Length (m) | 20 | 30 | ||
| Max Level Difference (m) | I.D.U Higher 10 / O.D.U Higher 10 | I.D.U Higher 20 / O.D.U Higher 20 | ||
| Indoor Dimensions (HxWxD) (mm) | 200 x 750(+120) x 500 | 200 x 950(+120) x 500 | ||
| Outdoor Dimensions (HxWxD) (mm) | 540 x 780(+62) x 290 | 640 x 800(+71) x 340 | ||
| Indoor Weight (kg) | 20.5 | 24 | ||
| Outdoor Weight (kg) | 34.5 | 45 | ||
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| SKU | SRR60ZS-W-Set |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 69.0000kg |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
