Best Prices Mitsubishi Heavy (MHI) Avanti DXK06ZSA-W-Set 2.0kW Air Con Low Cost Installation

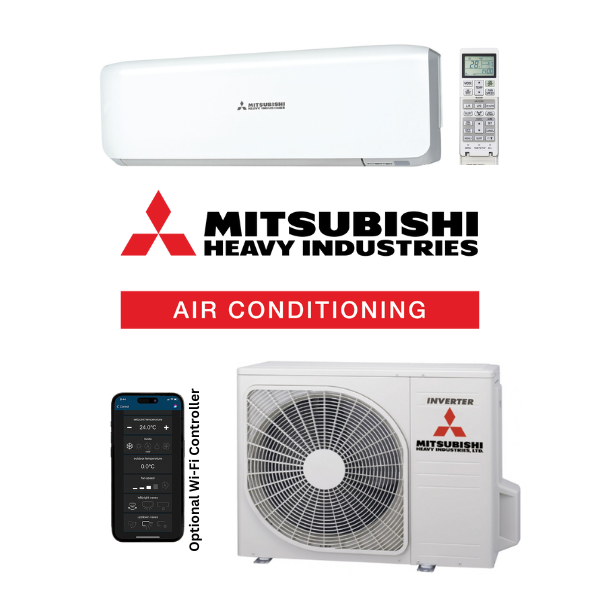

Mitsubishi Heavy (MHI) Avanti DXK06ZSA-W-Set 2.0kW Wall Split Air Conditioning System

Mitsubishi Heavy Industries DXK06ZSA-W Avanti 2.0 kW Reverse Cycle Split System - Includes Outdoor Unit DXC06ZSA-W

With a 5 star energy rating and all the advanced features and functions that the Avanti series is known for, the 2.0kW Avanti is ideal for smaller spaces such as a single bedroom, guest bedroom, kid's room or a home office.

Features:

Modern and stylish design
3D Auto airflow for effective and even air distribution
Allergen clear system to capture and eliminate allergens
Energy efficient R32 refrigerant

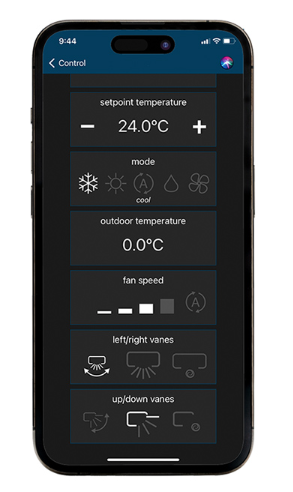

Optional Wi-Fi control

(DXK06ZSA-W-Set)

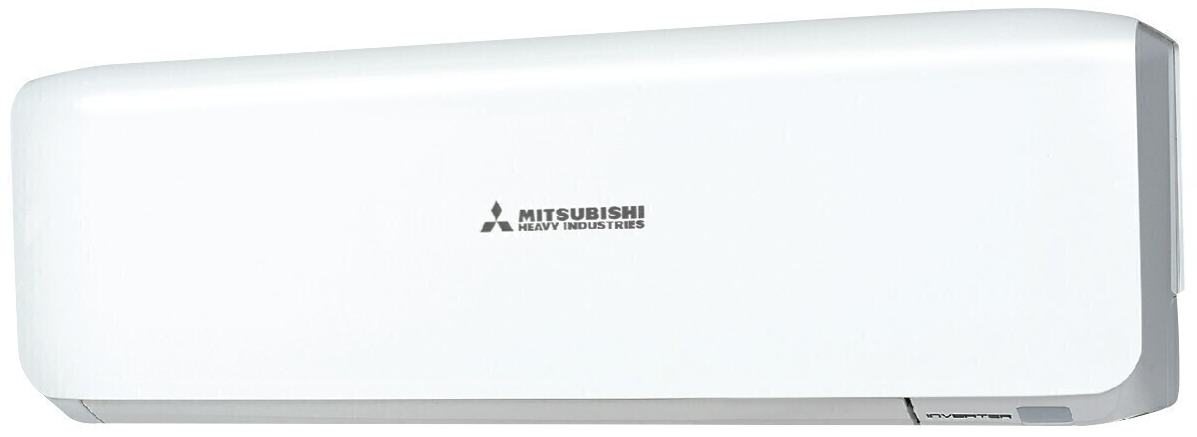

Indoor Unit

DXK06ZSA-W

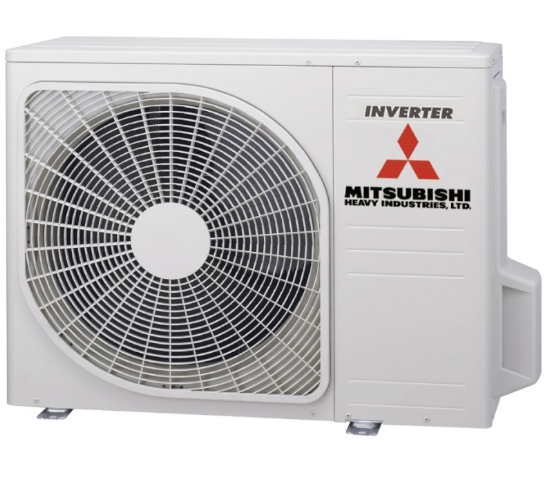

Outdoor Unit

DXC06ZSA-W

Power Supply

1 Phase, 220 ~ 240v, 50Hz

Rated Capacity

Cool (kW)	2.0
Heat (kW)	2.7

Capacity Range

Cool (kW)	0.9 - 3.0
Heat (kW)	1.0 - 4.2

Power Input (Rated)

Cool (kW)	0.41
Heat (kW)	0.50

Running Current

Cool (A)	2.10
Heat (A)	2.70

EER/COP

4.88 / 4.82

Energy Star Ratings

Cool	4.5 / 4.0 / 4.0
Heat	3.5 / 3.5 / 3.0

Dimensions (HxWxD)

Indoor (mm)	290 x 870 x 230
Outdoor (mm)	540 x 842 x 290

Weight

Indoor (kg)	9.5
Outdoor (kg)	33

Refrigerant Type

R32

Refrigerant Amount

(kg)

0.58

Pre-Charged to Pipe

(m)

Max Pipe Length

(m)

Max Level Difference

Indoor Higher (m)	10
Outdoor Higher (m)	10

Pipe Sizes

Liquid (mm)	6.35
Gas (mm)	9.52

Connection Type

Flare

Indoor Airflow Rate

Cool (l/s)	165 / 127 / 93 / 83
Heat (l/s)	190 / 142 / 108 / 93

Indoor Sound Pressure Level (H/SL)

(dBA)

35 / 27 / 22 / 19

Outdoor Sound Pressure Level (H/SL)

(dBA)

Outdoor EPA Sound Power Level (H)

(dBA)

SKU	DXK06ZSA-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	42.5000kg
Unit Of Measure	ea

Warranty

Mitsubishi Heavy Industries Air-Conditioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
