Mitsubishi Heavy (MHI) FDE100AVNPWVH-RC-EXZ3A 10.0kW Ceiling Suspended 1 Phase Air Conditioning System
FDE100VH / FDCA100VNP-W MHI Ceiling Suspended
$3,163.64 Excl GST

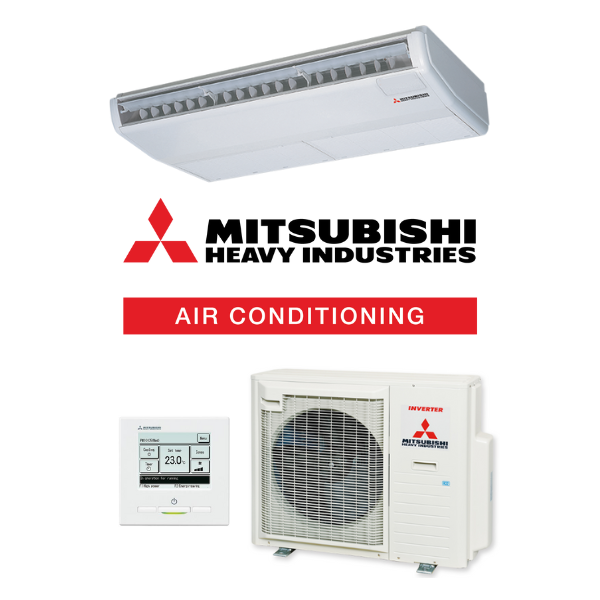

Mitsubishi Heavy Industries (MHI) FDE100AVNPWVH-RC-EXZ3A 10.0kW Ceiling Suspended Single Phase Air Conditioner - Includes Outdoor Unit and Wall Controller
The FDE series of ceiling suspended systems offer a versatile solution for commercial spaces with limited floor or ceiling space such as restaurants, cafes and retail spaces. With a reduction in weight and improved component design, the FDE series boasts easier installation, higher energy efficiency and quieter operation.
Key Features:
- Quiet Operation
- Various Timer Functions for Convenience
- High Power Mode for Rapid Cooling/Heating
(FDE100AVNPWVH-RC-EXZ3A)
| System Names | FDE71AVNXWVH-RC-EXZ3A | FDE100AVNAWVH-RC-EXZ3A | FDE100AVNPWVH-RC-EXZ3A | FDE125AVNPWVH-RC-EXZ3A | FDE125AVNXWVH-RC-EXZ3A | FDE140AVNXWVH-RC-EXZ3A |
|---|---|---|---|---|---|---|

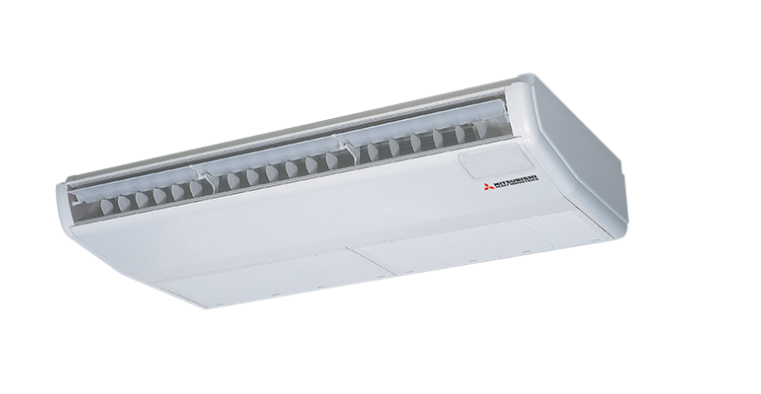

| Indoor Unit | FDE71VH | FDE100VH | FDE100VH | FDE125VH | FDE125VH | FDE140VH |

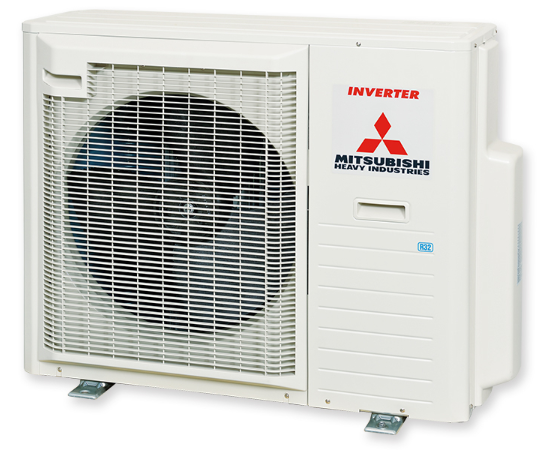

| Outdoor Unit | FDCA71VNX-W | FDCA100VNP-W | FDCA100VNA-W | FDCA125VNP-W | FDCA125VNX-W | FDCA140VNX-W |
| Cooling Capacity Rated/Min-Max (kW) | 7.1 (3.2-8.0) | 10.0 (4.0-11.2) | 10.0 (2.1-10.2) | 12.1 (5.0-12.1) | 12.5 (3.5-14.0) | 14.0 (3.5-16.0) |
| Heating Capacity Rated/Min-Max (kW) | 8.0 (3.6-9.0) | 11.2 (4.0-12.5) | 10.0 (1.7-10.4) | 12.1 (4.0-13.3) | 14.0 (2.7-17.0) | 16.0 (2.7-18.0) |
| Power Supply | 1 Phase, 240V, 50Hz | |||||
| Power Consumption Cool/Heat (kW) | 1.87 / 1.87 | 2.85 / 2.54 | 3.00 / 2.36 | 3.88 / 3.30 | 3.34 / 3.74 | 4.08 / 4.41 |
| Maximum Power Consumption (kW) | 4.11 | 6.40 | 4.46 | 4.75 | 7.10 | |
| Running Current Cool/Heat (A) | 8.3 / 8.3 | 13.8 / 12.4 | 12.8 / 10.1 | 16.3 / 13.9 | 14.7 / 16.0 | 17.9 / 19.4 |
| Inrush/Maximum Current (A) | 5 / 19.1 | 5 / 24 | 5 / 19 | 5 / 18 | 5 / 27 | |
| EER/COP | 3.80 / 4.28 | 3.51 / 4.41 | 3.33 / 4.24 | 3.12 / 3.67 | 3.75 / 3.74 | 3.43 / 3.63 |
| Outdoor Sound Power Level (dBA) | 66 | 69 | 68 | 73 | 68 | 69 |
| Indoor Sound Pressure Level P-Hi/Hi/Me/Lo (dBA) | 47 / 41 / 37 / 32 | 48 / 43 / 38 / 34 | 48 / 45 / 40 / 35 | 49 / 45 / 40 / 36 | ||
| Outdoor Sound Pressure Level (dBA) | 51 | 54 | 56 | 57 | 53 | 54 |
| Indoor Unit Dimensions (HxWxD) (mm) | 210 x 1320 x 690 | 250 x 1620 x 690 | ||||
| Outdoor Unit Dimensions (HxWxD) (mm) | 750 x 968 x 340 | 845 x 970 x 370 | 750 x 968 x 340 | 845 x 970 x 370 | 1300 x 970 x 370 | |
| Indoor Unit/Panel Weight (kg) | 33 | 43 | ||||
| Outdoor Unit Weight (kg) | 60 | 77 | 57 | 73 | 97 | |
| Airflow Cool/Heat (P-Hi/Hi/Me/Lo) (l/s) | 333 / 267 / 217 / 167 | 533 / 433 / 350 / 275 | 533 / 483 / 383 / 283 | 567 / 483 / 383 / 300 | ||
| Refrigerant Quantity (kg) | 2.75 | 3.3 | 1.7 | 2.25 | 4.0 | |
| Refrigerant Pre-charged to pipe (mm) | 30 | 15 | 30 | |||
| Pipe Sizes Liquid/Gas (mm) | 9.52 / 15.88 | 6.35 / 15.88 | 9.52 / 15.88 | |||
| Connection Method | Flare Connection | |||||
| Maximum Pipe Length (One Way) (m) | 50 | 30 | 100 | |||
| Max Vertical Height Diff. (m) | 30 (O.U above I.U) / 15 (O.U below I.U) | 50 (O.U above I.U) / 15 (O.U below I.U) | - | 50 (O.U above I.U) / 15 (O.U below I.U) | ||

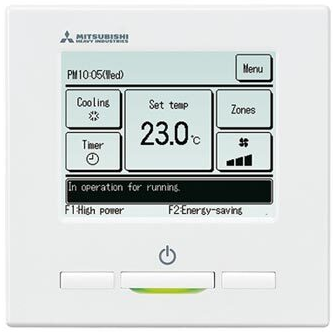

| Controller | RC-EXZ3A | |||||
| Demand Response | YES | |||||
| Outdoor Air Temperature Limits Cool/Heat (C) | -15 to 50 / -20 to 20 | -15 to 46 / -15 to 20 | -15 to 50 / -20 to 20 | |||
| SKU | FDE100AVNPWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 100.0000kg |
| Shipping Cubic | 0.526290000m3 |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
