Mitsubishi Heavy (MHI) FDE125AVSXWVH-RC-EXZ3A 12.5kW Ceiling Suspended 3 Phase Air Conditioning System
FDE125VH / FDCA125VSX-W MHI Ceiling Suspended
$5,076.36 Excl GST

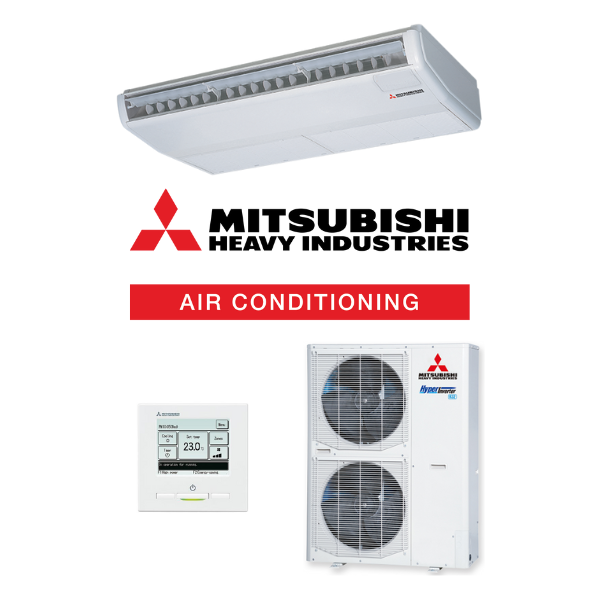

Mitsubishi Heavy Industries (MHI) FDE125AVSXWVH-RC-EXZ3A 12.5kW Ceiling Suspended Three Phase Air Conditioner - Includes Outdoor Unit and Wall Controller
The FDE series of ceiling suspended systems offer a versatile solution for commercial spaces with limited floor or ceiling space such as restaurants, cafes and retail spaces. With a reduction in weight and improved component design, the FDE series boasts easier installation, higher energy efficiency and quieter operation.
Key Features:
- Quiet Operation
- Various Timer Functions for Convenience
- High Power Mode for Rapid Cooling/Heating
(FDE125AVSXWVH-RC-EXZ3A)
| System Names | FDE100AVSAWVH-RC-EXZ3A | FDE125AVSXWVH-RC-EXZ3A | FDE140AVSXWVH-RC-EXZ3A |
|---|---|---|---|

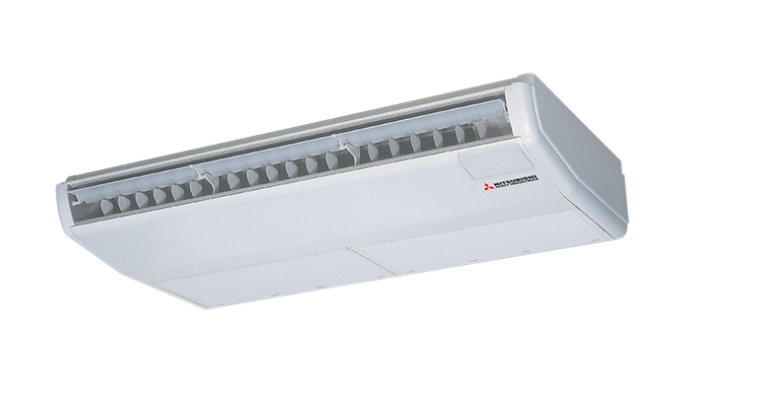

| Indoor Unit | FDE100VH | FDE125VH | FDE140VH |

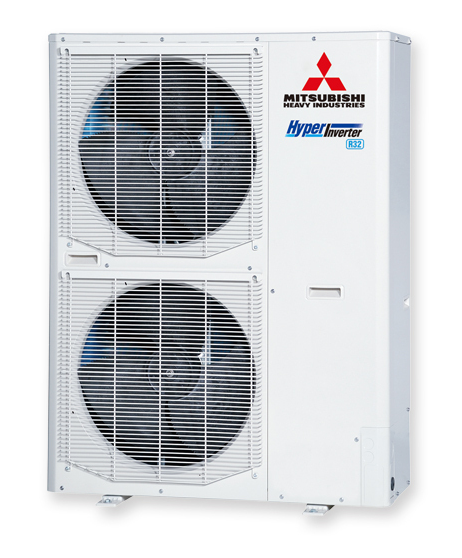

| Outdoor Unit | FDCA100VSA-W | FDCA125VSX-W | FDCA140VSX-W |
| Cooling Capacity Rated/Min-Max (kW) | 10.0 (4.0-11.2) | 12.5 (3.5-14.0) | 14.0 (3.5-16.0) |
| Heating Capacity Rated/Min-Max (kW) | 11.2 (4.0-12.5) | 14.0 (2.7-18.0) | 16.0 (2.7-20.0) |
| Power Supply | 3 Phase, 380-415V, 50Hz | ||
| Power Consumption Cool/Heat (kW) | 2.85 / 2.54 | 3.77 / 3.74 | 4.08 / 4.41 |
| Maximum Power Consumption (kW) | 10.2 | 8.9 | |
| Running Current Cool/Heat (A) | 4.6 / 4.0 | 6.3 / 6.3 | 6.5 / 7.2 |
| Inrush/Maximum Current (A) | 5 / 15 | 5 / 14 | |
| EER/COP | 3.51 / 4.41 | 3.75 / 3.74 | 3.43 / 3.63 |
| Outdoor Sound Power Level (dBA) | 69 | 68 | 69 |
| Indoor Sound Pressure Level P-Hi/Hi/Me/Lo (dBA) | 48 / 43 / 38 / 34 | 48 / 45 / 40 / 35 | 49 / 45 / 40 / 36 |
| Outdoor Sound Pressure Level (dBA) | 54 | 53 | 54 |
| Indoor Unit Dimensions (HxWxD) (mm) | 250 x 1620 x 690 | ||
| Outdoor Unit Dimensions (HxWxD) (mm) | 845 x 970 x 370 | 1300 x 970 x 370 | |
| Indoor Unit/Panel Weight (kg) | 43 | ||
| Outdoor Unit Weight (kg) | 78 | 99 | |
| Airflow Cool/Heat (P-Hi/Hi/Me/Lo) (l/s) | 533 / 433 / 350 / 275 | 533 / 483 / 383 / 283 | 567 / 483 / 383 / 300 |
| Refrigerant Quantity (kg) | 3.3 | 4.0 | |
| Refrigerant Pre-charged to pipe (mm) | 30 | ||
| Pipe Sizes Liquid/Gas (mm) | 9.52 / 15.88 | ||
| Connection Method | Flare Connection | ||
| Maximum Pipe Length (One Way) (m) | 50 | 100 | |
| Max Vertical Height Diff. (m) | 50 (O.U above I.U) / 15 (O.U below I.U) | ||

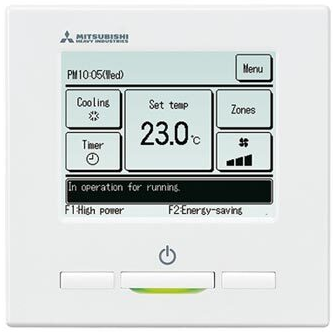

| Controller | RC-EXZ3A | ||
| Demand Response | YES | ||
| Outdoor Air Temperature Limits Cool/Heat (C) | -15 to 50 / -20 to 20 | ||
| SKU | FDE125AVSXWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 142.0000kg |
| Shipping Cubic | 0.746020000m3 |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
