Mitsubishi Heavy (MHI) FDUA125AVNPWVH-RC-EXZ3A 12.1kW Ducted 1 Phase Air Conditioning System

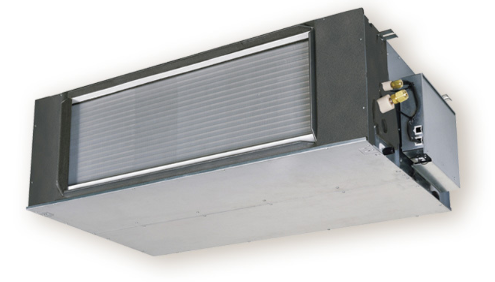

FDUA125VH / FDCA125VNP-W Mitsubishi Heavy (MHI) Ducted
$3,160.91 Excl GST

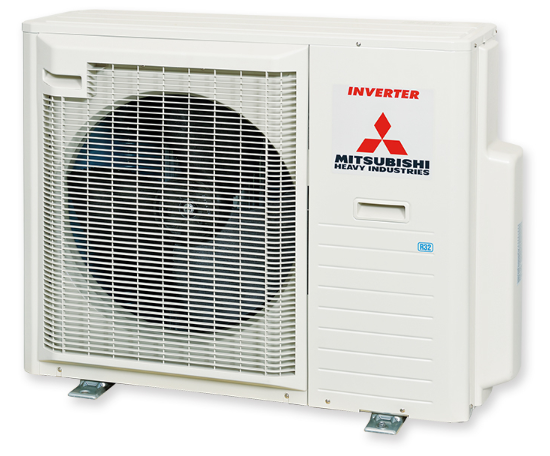

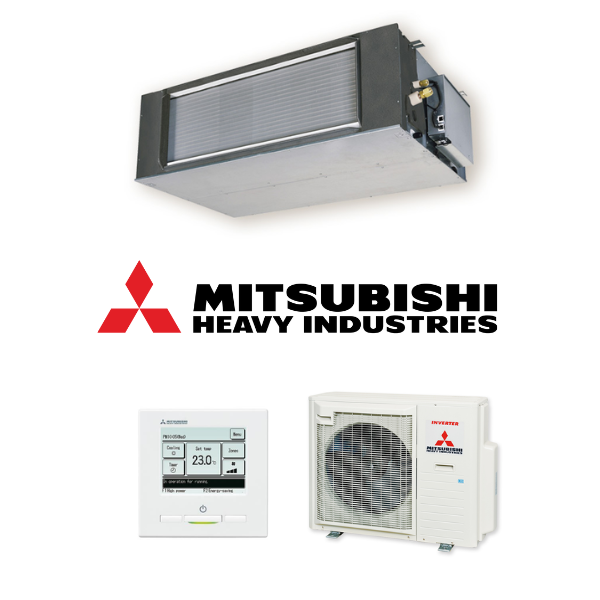

Mitsubishi Heavy Industries FDUA125AVNPWVH-RC-EXZ3A 12.5kW Single Phase Ducted System - Includes Outdoor Unit FDCA125VNP-W
The FDUA series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 10.0kW up to 20kW, the FDUA series incorporates a range of convenient features and functions including high power mode, silent mode, eco mode and several timer and scheduling functions.
Key Features:
- Single phase model
- Automatic operation Mode
- Weekly / Sleep Timer
- Silent operation
- Wired and wireless control options
- High Power Mode for rapid cooling & heating
- Dry operation to reduce humidity
- Economy mode to reduce power consumption
(FDUA125AVNPWVH-RC-EXZ3A)
| System Name | FDUA100AVNPWVH | FDUA100AVNAWVH | FDUA125AVNPWVH | FDUA125AVNXWVH | FDUA140AVNXWVH | FDUA160AVNXWVH |
|---|---|---|---|---|---|---|
| Indoor Unit | FDUA100VH | FDUA100VH | FDUA125VH | FDUA125VH | FDUA140VH | FDUA160VH |
| Outdoor Unit | FDCA100VNP-W | FDCA100VNA-W | FDCA125VNP-W | FDCA125VNX-W | FDCA140VNX-W | FDCA160VNX-W |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||||
| Cooling Capacity (kW) | 10.0 | 10.0 | 12.1 | 12.5 | 14.0 | 16.0 |
| Heating Capacity (kW) | 10.0 | 11.2 | 12.1 | 14.0 | 16.0 | 18.0 |
| Rated Power Input (Cool/Heat) (kW) | 2.99 / 2.57 | 3.05 / 2.87 | 3.85 / 3.28 | 3.83 / 3.68 | 4.02 / 4.19 | 5.00 / 5.00 |
| EER/COP | 3.34 / 3.89 | 3.28 / 3.90 | 3.14 / 3.69 | 3.26 / 3.80 | 3.48 / 3.82 | 3.16 / 3.60 |
| Duct Sizes (Supply/Return) (mm) | 348 x 898 / 348 x 898 | 298 x 1064 / 2 X dia400 | ||||
| Max External Static Pressure (Pa) | 200 | 150 | ||||
| Refrigerant Type/Amount (kg) | R32 / 1.7 | R32 / 3.3 | R32 / 2.25 | R32 / 4.0 | ||
| Max Pipe Length (m) | 30 | 50 | 30 | 100 | ||
| Max Level Difference (m) | I.D.U Higher 20 / O.D.U Higher 20 | I.D.U Higher 15 / O.D.U Higher 50 | I.D.U Higher 20 / O.D.U Higher 20 | I.D.U Higher 15 / O.D.U Higher 50 (Outdoor Temp <43) 30 (Outdoor Temp > 43) | ||
| Indoor Dimensions (HxWxD) (mm) | 398 x 1150 x 650 | 398 x 1450 x 930 | ||||
| Outdoor Dimensions (HxWxD) (mm) | 750 x 880 x 340 | 845 x 970 x 370 | 1300 x 970 x 370 | |||
| Indoor Weight (kg) | 52 | 66 | ||||
| Outdoor Weight (kg) | 57 | 77 | 73 | 97 | ||
| Pipe Sizes (mm) (Liquid/Gas) | 6.4 / 15.88 | 9.52 / 15.88 | ||||
| SKU | FDUA125AVNPWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 125.0000kg |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries Air-Conditioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
