Panasonic RZ Series CS/CU-RZ25AKR 2.5kW Wall Split Air Conditioning System

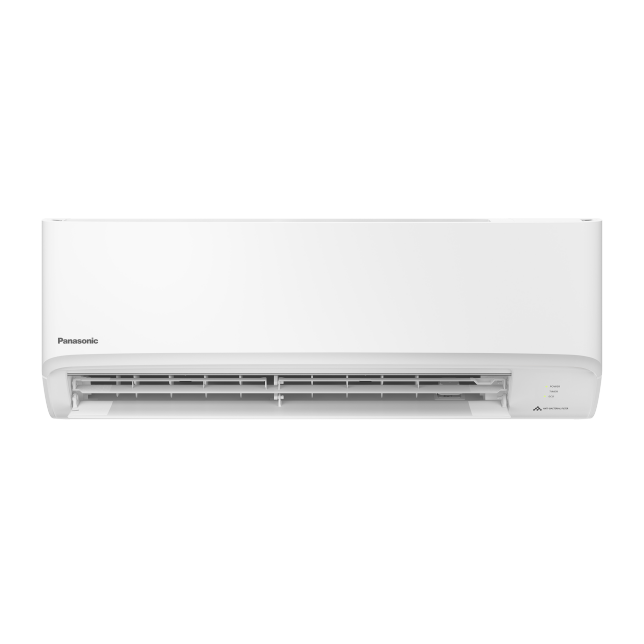

CS-RZ25AKR / CU-RZ25AKR Panasonic Wall Split
$832.73 Excl GST

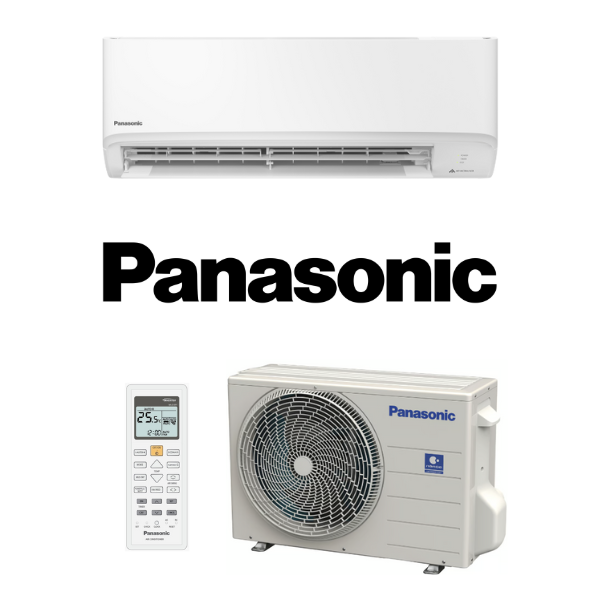

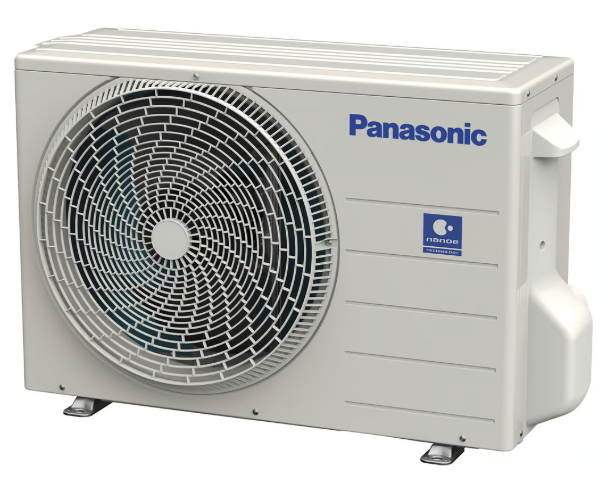

Panasonic CS/CU-RZ25AKR 2.5kW RZ Series Reverse Cycle Split System (Optional Wi-Fi Controller) - Includes Outdoor Unit CU-RZ25AKR and Wireless Controller
Panasonic Standard Reverse Cycle Inverter RZ Series (AKR) features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.
Key Features:
- POWERFUL Mode
- ECO Mode with A.I
- Inverter Control
- Quiet Mode
- Soft Dry Operation Mode
- Hot Start Control
- Airflow Direction Control
- Anti-Bacterial Filter & Odour Removing Function
- Removable Washable Panel
- DRED

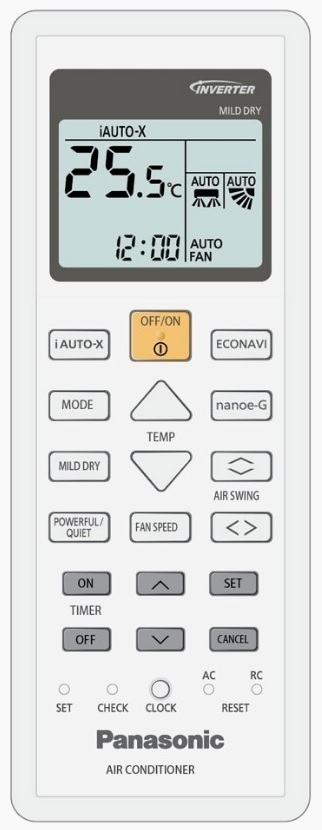

- LCD Wireles Remote Control Included
- Optional Wi-Fi - Network Adaptor Required
- Self Diagnosis Function
(CSCU-RZ25AKR)
System Name | CS/CU-RZ25AKR | CS/CU-RZ35AKR | CS/CU-RZ42AKR | CS/CU-RZ50AKR | CS/CU-RZ60AKR | CS/CU-RZ71AKR | CS/CU-RZ80YKR | CS/CU-RZ95AKR |
---|---|---|---|---|---|---|---|---|
Indoor Unit | CS-RZ25AKR | CS-RZ35AKR | CS-RZ42AKR | CS-RZ50AKR | CS-RZ60AKR | CS-RZ71AKR | CS-RZ80YKR | CS-RZ95AKR |
Outdoor Unit | CU-RZ25AKR | CU-RZ35AKR | CU-RZ42AKR | CU-RZ50AKR | CU-RZ60AKR | CU-RZ71AKR | CU-RZ80YKR | CU-RZ95AKR |
Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||||||
Cooling Capacity (kW) | 2.5 | 3.5 | 4.2 | 5.0 | 6.0 | 7.1 | 8.0 | 9.5 |
Heating Capacity (kW) | 3.0 | 4.0 | 5.1 | 6.0 | 6.5 | 8.0 | 9.0 | 10.3 |
EER/COP | 4.31 / 4.62 | 4.27 / 4.60 | 3.56 / 3.85 | 3.31 / 3.49 | 3.24 / 3.44 | 3.45 / 3.83 | 3.35 / 3.85 | 3.35 / 3.71 |
Refrigerant Type | R32 | |||||||
Indoor Airflow (Cooling/Heating) (L/s) | 188 / 200 | 193 / 202 | 193 / 202 | 208 / 228 | 328 / 339 | 352 / 367 | 367 / 377 | 407 / 420 |
Dehumid (L/h) | 1.50 | 2.00 | 2.40 | 2.80 | 3.30 | 4.10 | 4.70 | 5.00 |
Max Pipe Length (m) | 20 | 30 | ||||||
Max Elevation Length (m) | 15 | 20 | ||||||
Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | |||||||
Indoor Dimensions (HxWxD) (mm) | 290 x 779 x 209 | 295 x 1040 x 244 | 309 x 1212 x 269 | |||||
Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 695 x 875 x 320 | 795 x 875 x 320 | ||||
Indoor Weight (kg) | 8 | 12 | 13 | 17 | ||||
Outdoor Weight (kg) | 25 | 30 | 31 | 35 | 45 | 51 | 55 | |
Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 |
SKU | CSCU-RZ25AKR |
Brand | Panasonic |
Shipping Weight | 33.0000kg |
Shipping Cubic | 0.169393000m3 |
Unit Of Measure | ea |
