Panasonic S-200PE4R-3P 20.0kW Ducted 3 Phase Air Conditioning System

S-200P43R / U-200PZH3R8 Panasonic Ducted

$6,756.00 Incl GST
$6,141.82 Excl GST
In Stock

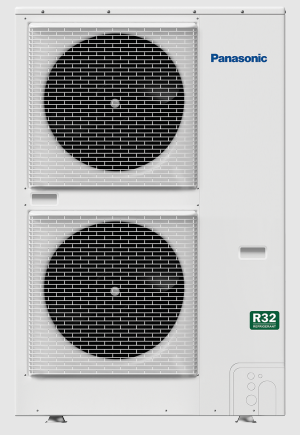

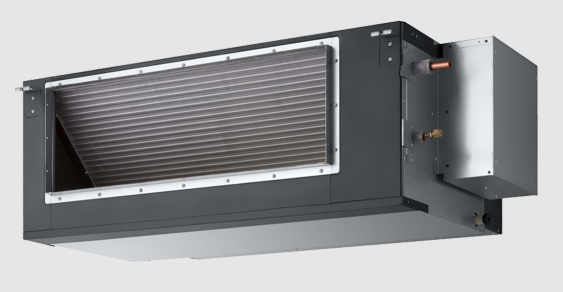

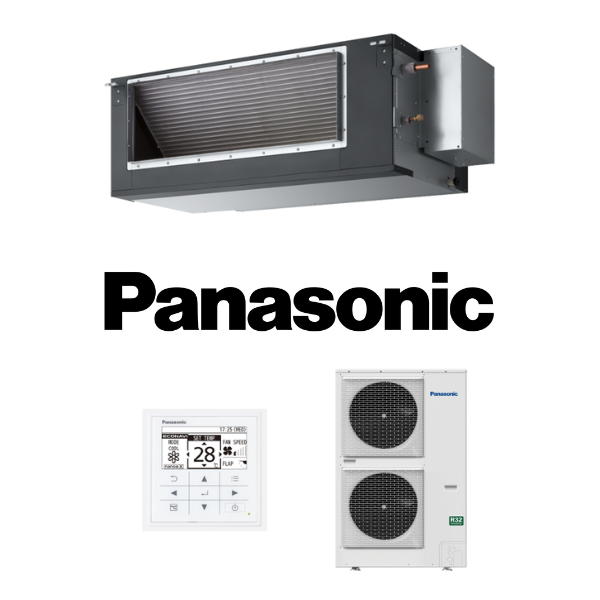

Panasonic S-200PE4R 20.0kW Three Phase Ducted System - Includes Deluxe Backlit Wired Controller CZ-RTC5B & Outdoor Unit U-200PZH3R8

Consisting of an outdoor unit and a concealed indoor unit, a ducted system delivers air through ducting pipes (usually in the ceiling) into each room via vents on the floor, wall or ceiling. Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.

Features:

  • Panasonic Premium Inverter Ducted air conditioner reduces wasteful operation, giving you energy saving and better performance.
  • Panasonic Premium Inverter Ducted air conditioners can operate with higher power during the start-up period to cool and heat the room faster than conventional air conditioners.
  • Our Premium Inverter ducted systems boast an outstanding operating temperature range. Cooling operation is possible even when it is a scorching 46ºC outside, which is perfect for Australia’s hot summer days and the heating operation is designed to operate even when it’s a freezing -20ºC outside, so even the coldest parts of Australia are covered.

(S-200PE4R-3P)

System Names S-100PE3R-3P S-125PE3R-3P S-140PE3R-3P S-160PE3R-3P S-180PE4R-3P S-200PE4R-3P S-224PE4R-3P
Indoor Units S-100PE3R S-125PE3R S-140PE3R S-160PE3R S-180PE4R S-200PE4R S-224PE4R
Outdoor Units U-100PZ3R8 U-125PZ3R8 U-140PZ3R8 U-160PZH3R8 U-180PZH3R8 U-200PZH3R8 U-224PZH3R8
Rated Cooling Capacity (kW) 10.0 12.5 14.0 16.0 18.0 20.0 22.4
Rated Heating Capacity (kW) 10.0 12.5 14.0 16.0 18.0 20.0 22.4
Indoor dimensions (H x W x D) (mm) 360 x 1200 x 700 430 x 1200 x 700 486 x 1456 x 916
Outdoor dimension (H x W x D) (mm) 996 x 980 x 370 1500 x 980 x 370
Indoor Weight (kg) 37 41 50 50 82 83 87
Outdoor Weight (kg) 83 87 87 115 115 127 127
SKU S-200PE4R-3P
Brand Panasonic
Shipping Weight 210.0000kg
Shipping Cubic 1.192076000m3
Unit Of Measure ea
