Best Prices Rinnai DINLR11B1-SET 11.0kW Home Air Conditioner Low Cost Installation Brisbane Sydney

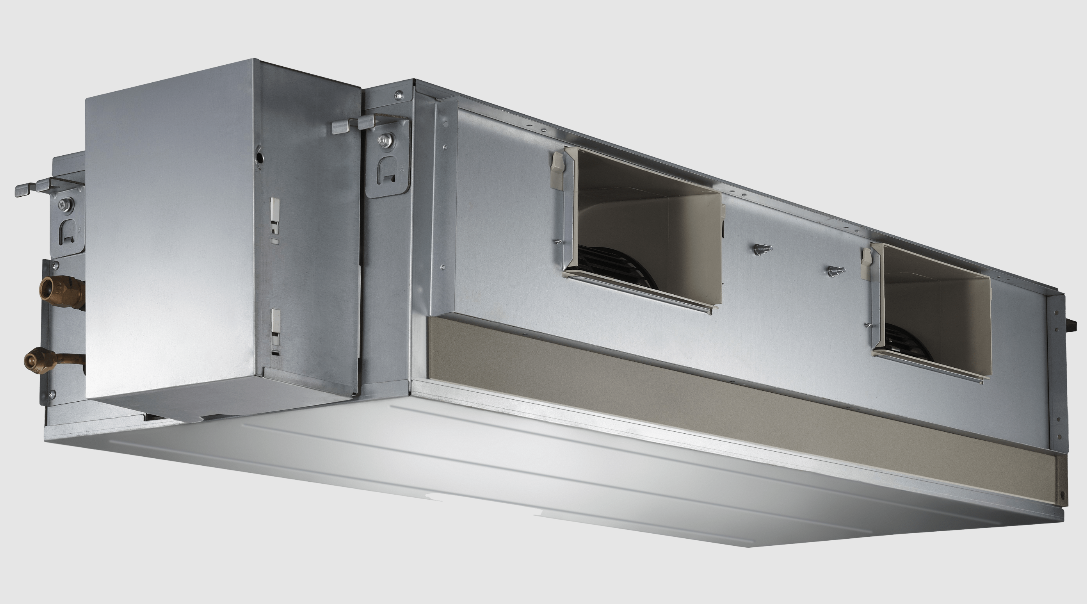

Rinnai DINLR11B1-SET 11.0kW Ducted 1 Phase Air Conditioning System

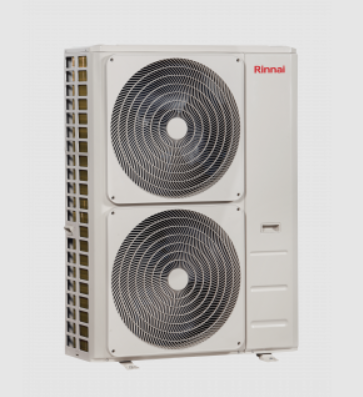

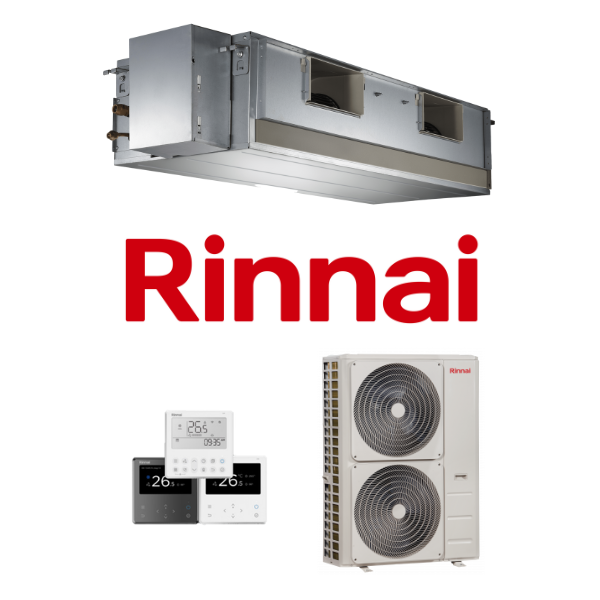

Rinnai DINLR11B1-SET 11.0kW Ducted Single Phase System - Includes Controller and Outdoor Unit DONSR11B1

Rinnai’s Ducted Air Conditioning system discreetly delivers powerful home heating and cooling, keeping you comfortable regardless of the extremes outside. Concealed in your roof cavity, the efficient indoor fans & DC compressor quietly operate and the advanced ducted inverter control mechanisms ensure a controlled warm-up and cool down with outstanding energy efficiency ratings.

Enjoy the exceptional benefits of a Reverse Cycle Air Conditioner without the hassle of installing and the sight of multiple indoor units. Condition and filter the air in your whole home, or choose to zone specific areas tailored to individual comfort levels. 3 times more efficient than conventional heating, Rinnai’s Ducted Air Conditioning system features optional Wi-Fi, programmable controller, and slimline design. The smart choice in ducted heating and cooling.

Key Features:

8 Zones
Sleep Timer
Favourites and Schedules
Wi-Fi & Remote Access
Zone Temperature Control
AC Unit Control
5% Airflow Control Adjustments
'Filter Clean' Reminder with Adjustable

(DINLR11B1-SET)

System	DINLR07B1-SET	DINLR09B1-SET	DINLR11B1-SET	DINLR13B1-SET	DINLR15B1-SET	DINLR18B1-SET
Indoor Unit	DINLR07B1	DINLR09B1	DINLR11B1	DINLR13B1	DINLR15B1	DINLR18B1
Outdoor Unit	DONSR07B1	DONSR09B1	DONSR11B1	DONSR13B1	DONSR15B1	DONSR18B1
Rated Cooling Capacity (kW)	7.0	9.0	11.0	13.0	15.0	18.0
Rated Heating Capacity (kW)	7.5	10.0	11.5	13.0	14.5	18.0
Rated Input Power Cool/Heat (kW)	2.1 / 1.7	2.55 / 2.25	3.1 / 2.7	3.45 / 3.15	4.2 / 3.6	5.25 / 4.55
Rated Input Current Cool/Heat (A)	9.8 / 7.9	14.5 / 12.8	14.2 / 12.8	18.2 / 16.3		22.5 / 19.5
Recommended Circuit Breaker (A)	20	25		32
Power Supply	1 Phase, 220-240V, 50Hz
EER / COP	3.4 / 4.3	3.5 / 4.4	3.4 / 4.2	3.6 / 4.1	3.3 / 4.0	3.2 / 3.9
Indoor Airflow (High/Minimum) (L/s)	480 / 140	625 / 190	710 / 190	1050 / 250		1080 / 410
Maximum External Static Pressure (Pa)	160		200
Sound Pressure Level @1.4m (Hi/Med/Lo) (dBA)	38.5 / 35.5 / 32.5	45 / 42 / 39.5	39 / 37 / 34.5	46.5 / 43.5 / 40		53 / 49.5 / 45.3
Indoor Unit Net Dimensions (HxWxD) (mm)	249 x 1100 x 774	249 x 1360 x 774	380 x 1200 x 625			440 x 1400 x 858
Indoor Unit Shipping Dimensions (HxWxD) (mm)	315 x 1305 x 805	320 x 1570 x 805	450 x 1485 x 675			515 x 1605 x 910
Outdoor Unit Net Dimensions (HxWxD) (mm)	673 x 890 x 342	810 x 946 x 410		1333 x 952 x 415
Outdoor Unit Shipping Dimensions (HxWxD) (mm)	730 x 995 x 398	845 x 1090 x 500		1380 x 1095 x 495
Indoor Unit Net/Gross Weight (kg)	32 / 38.5	40 / 48	53 / 62			81 / 92
Outdoor Unit Net/Gross Weight (kg)	45 / 48	70 / 75		95 / 110		96 / 111
Refrigerant Type / Charged Volume (kg)	R32 / 1.75	R32 / 2.6		R32 / 3.6		R32 / 4.0
Pipe Sizes (Liquid/Gas) (mm)	9.52 / 15.88					9.52 / 19.05
Supply Air Opening (mm) HxW	175 x 926	175 x 1186	253 x 1000			385 x 1188
Return Air Opening (mm) HxW	228 x 1001	228 x 1261	334 x 1145			385 x 1188
Indoor Operating Range Cool/Heat (C)	17 to 32 / 0 to 30
Outdoor Operating Range Cool/Heat (C)	-15 to 50 / -20 to 24
Outdoor Sound Pressure Level @1m (dBA)	60		62	60		60.5
Outdoor Sound Power Level (dBA)	65	68		69.5		72
Maximum/Minimum Pipe Length (m)	50 / 3	75 / 3
Maximum Vertical Separation (m)	25	30
