Rinnai DINLR20Z7-SET 20.0kW Ducted 3 Phase Air Conditioning System
DINLR20Z7 / DONSR20Z9 Rinnai Ducted
$6,021.82 Excl GST

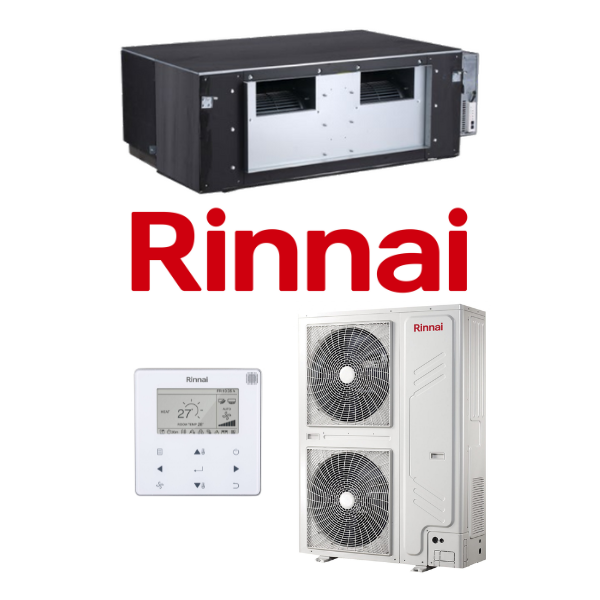

Rinnai DINLR20Z7-SET 20.0kW Ducted Three Phase System - Includes Programmable Wired Controller and Outdoor Unit DONSR20Z9
Experience year-round comfort with Rinnai's Ducted Reverse Cycle Inverter System, now available in 20 & 24kW. Sit back as the system discreetly delivers powerful home heating and cooling. Concealed in your roof cavity, the efficient indoor fans & DC compressor quietly operate, and the advanced ducted inverter control mechanisms ensure a controlled warm-up and cool down with outstanding energy efficiency ratings.
Enjoy the exceptional benefits of a Reverse Cycle Air Conditioner without the hassle of installing and the sight of multiple indoor units. Condition and filter the air in your home with a dedicated easy-to-use wired programmable remote. 3 times more efficient than conventional heating, Rinnai’s 20 & 24kW Ducted Air Conditioning system features fast temperature control, programmable controller, and slimline design. The smart choice in extra-large capacity ducted heating and cooling.
Key Features:
- Powerful Output for Larger Homes
- Easy to Use Control System
- Efficient Ducted Heating and Cooling
- Fast Temperature Control
- 3D DC Inverter Ducted System
- Rapid Response
- 5-year Warranty

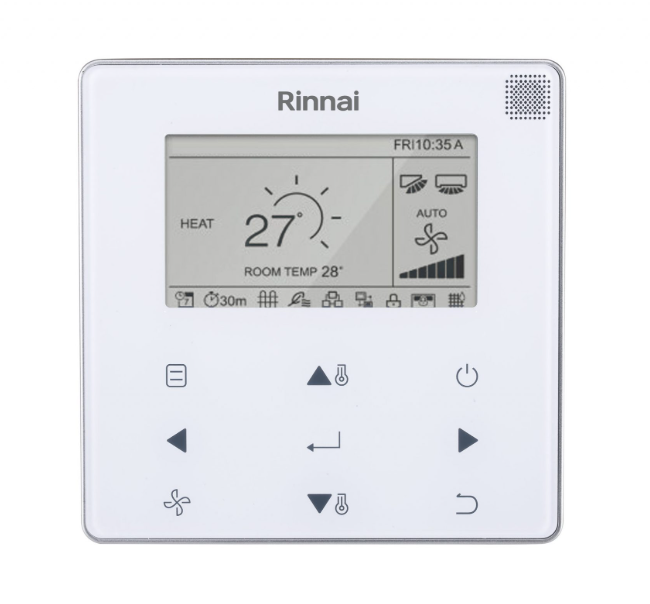

- Wired Programmable Control
(DINLR20Z7-SET)
| System | DINLR20Z7-SET | DINLR24Z7-SET |
|---|---|---|

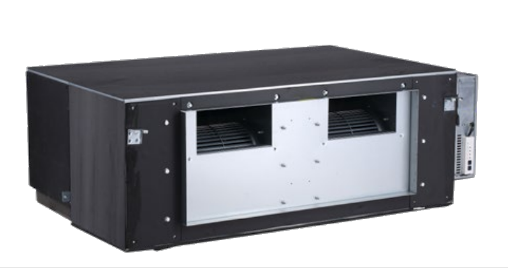

| Indoor Unit | DINLR20Z7 | DINLR24Z7 |

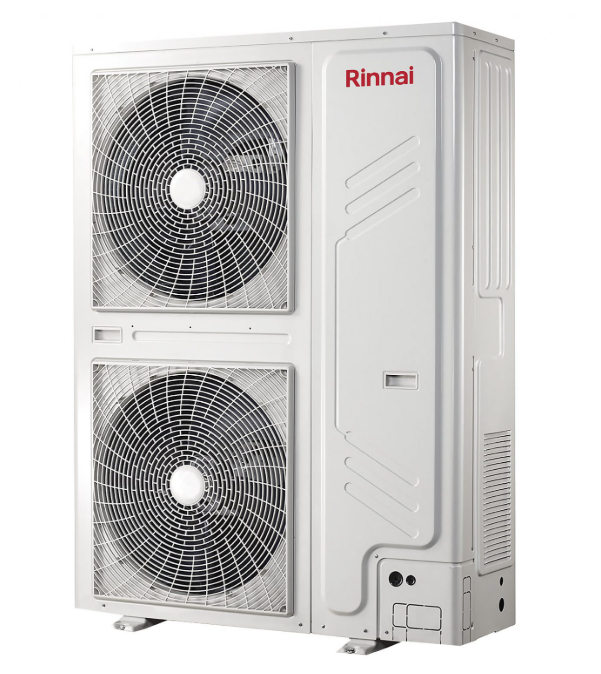

| Outdoor Unit | DONSR20Z9 | DONSR24Z9 |
| Rated Cooling Capacity (kW) | 20.0 | 24.0 |
| Rated Heating Capacity (kW) | 20.0 | 25.0 |
| Rated Input Power Cool/Heat (kW) | 5.95 / 5.90 | 6.70 / 7.15 |
| Rated Input Current Cool/Heat (A) | 9.09 / 8.9 | 10.13 / 10.8 |
| Recommended Circuit Breaker (A) | 30 | 40 |
| Power Supply | 3 Phase, 415V, 50Hz | |
| EER / COP | 3.29 / 3.32 | 3.44 / 3.43 |
| Indoor Airflow (High Speed) (L/s) | 1203 | |
| Maximum External Static Pressure (Pa) | 250 | |
| Sound Pressure Level @1.4m (Hi/Med/Lo) (dBA) | 57 / 54 / 50 | |
| Indoor Unit Net Dimensions (HxWxD) (mm) | 515 x 1454 x 931 | |
| Indoor Unit Shipping Dimensions (HxWxD) (mm) | 550 x 1509 x 990 | |
| Outdoor Unit Net Dimensions (HxWxD) (mm) | 1558 x 1120 x 528 | |
| Outdoor Unit Shipping Dimensions (HxWxD) (mm) | 1720 x 1270 x 565 | |
| Indoor Unit Net/Gross Weight (kg) | 130 / 142 | |
| Outdoor Unit Net/Gross Weight (kg) | 137 / 153 | 147 / 163 |
| Refrigerant Type / Charged Volume (kg) | R410A / 6.45 | R410A / 7.85 |
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 22.2 | |
| Supply Air Opening (mm) HxW | 378 x 936 | |
| Return Air Opening (mm) HxW | 342 x 1122 | |
| Indoor Operating Range (C) | 10 to 40 | |
| Outdoor Operating Range Cool/Heat (C) | -15 to 46 / -15 to 24 | |
| Outdoor Sound Pressure Level @1m (dBA) | 59 | 60 |
| Outdoor Sound Power Level (dBA) | 70 | 72 |
| Maximum Pipe Length (m) | 60 | |
| Maximum Vertical Separation (m) | 25 | |
| SKU | DINLR20Z7-SET |
| Model # | DINLR20Z7 |
| Brand | Rinnai |
| Shipping Weight | 295.0000kg |
| Shipping Cubic | 2.055837000m3 |
| Unit Of Measure | ea |
Warranty
Rinnai offers a 5-year warranty for all of their Air Conditioners.
