Rinnai T-Series HSNRT80B 8.0kW Wall Split Wifi Air Conditioning System
Rinnai Wall Split Air Conditioner
$1,719.99 Excl GST

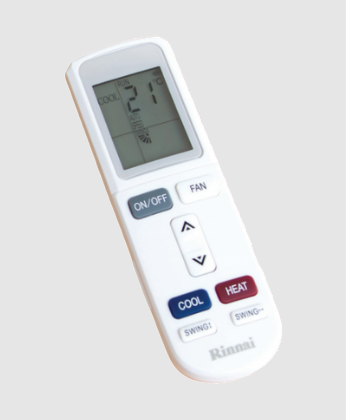

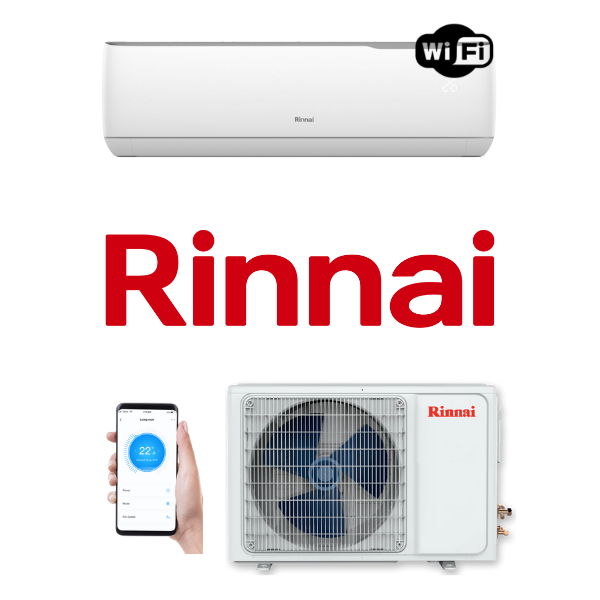

Rinnai T Series HSNRT80B 8.0kW Wall Split Air Conditioner (Built-In Wi-Fi) - Includes Outdoor Unit HONRT80B and Wireless Controller
Australian homes not only vary in shape and size but have unique comfort requirements. The Wi-Fi compatible Rinnai T Series Inverter Split System powerfully delivers heating and cooling all year round- no matter where you call home.
Features:

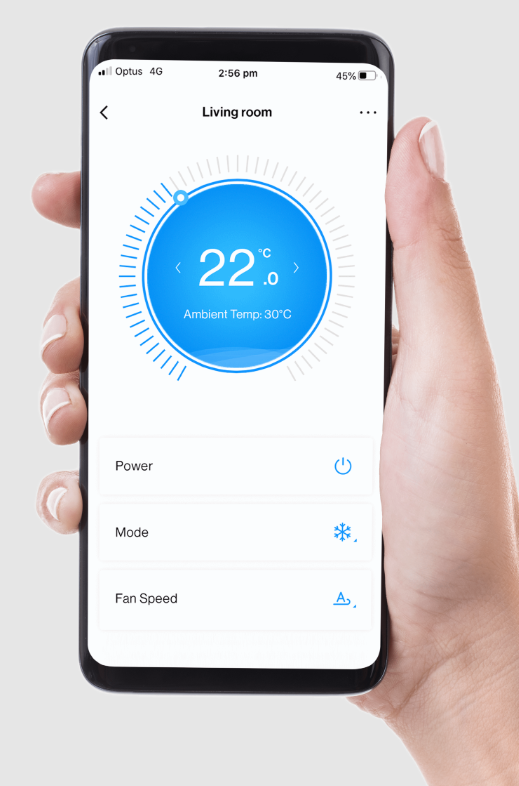

- Wi-Fi Control
- Demand Control
- Quiet Operation
- Fresh Function
- Self-Cleaning Function
- Long Distance Air Supply
- Long Distance Air Supply
(HSNRT80B)
| System | HSNRT25B | HSNRT35B | HSNRT50B | HSNRT70B | HSNRT80B |
|---|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 7.0 | 8.0 |
| Rated Heating Capacity (kW) | 2.9 | 4.0 | 5.2 | 8.2 | 8.4 |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | ||||
| Recommended Circuit Breaker (A) | 16.0 | 20.0 | 25.0 | ||
| Connectivity | Wi-Fi Enabled | ||||
| Demand Response Enabling Device | DRED Enabled | ||||
| Capacity Range Cool/Heat (kW) | 0.6-3.2 / 0.6-3.5 | 0.8-4.3 / 0.9-4.8 | 1.3-5.7 / 1.3-6.3 | 1.8-7.5 / 1.8-8.4 | 2.8-8.5 / 2.6-8.8 |
| Rated Power Input Cool/Heat (kW) | 530 / 680 | 870 / 1050 | 1280 / 1260 | 2000 / 2400 | 2400 / 3000 |
| Rated Current (A) | 3.2 / 3.9 | 4.0 / 4.8 | 5.6 / 5.5 | 8.5 / 10.0 | 11.0 / 11.0 |
| AEER/ACOP (W/W) | 4.94 / 4.24 | 4.00 / 3.79 | 4.04 / 4.10 | 3.51 / 3.41 | 3.33 / 3.29 |
| Star Rating: Hot/Avg/Cold (Cool) | 9.0 / 7.0 / 7.5 | 5.5 / 5.0 / 5.5 | 4.5 / 4.0 / 4.5 | 4.0 / 3.5 / 4.0 | 3.0 / 2.5 / 3.0 |
| Star Rating: Hot/Avg/Cold (Heat) | 3.5 / 3.0 / 2.5 | 5.5 / 2.5 / 2.0 | 3.0 / 2.5 / 2.0 | 3.5 / 2.0 / 1.5 | 2.5 / 2.0 / 1.5 |
| Maximum Input Power Cool/Heat (W) | 1250 | 1850 | 2300 | 2800 | 3000 |
| Maximum Input Current Cool/Heat (A) | 6.0 | 9.5 | 12.0 | 14.0 | 18.0 |
| Suitable Area Coverage up to 2.6m insulated ceiling (m2) | 13-17 | 18-24 | 25-34 | 35-47 | 40-54 |
| Moisture Removal (L/h) | 0.8 | 1.1 | 1.6 | 2.2 | 2.5 |

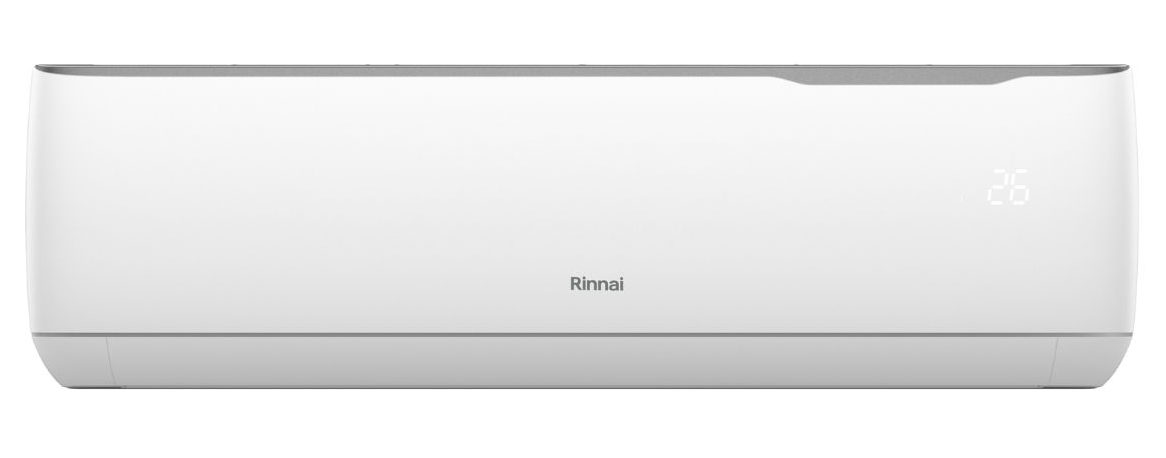

| Indoor Unit | HINRT25B | HINRT35B | HINRT50B | HINRT70B | HINRT80B |
| Air Flow (Turbo/H/M/L/Min) (L/s) | 172 / 153 / 135 / 117 / 78 | 236 / 207 / 186 / 164 / 114 | 292 / 258 / 231 / 197 / 153 | 361 / 319 / 283 / 244 / 189 | 347 / 306 / 275 / 236 / 183 |
| Sound Power Level dB(A) | 54 | 57 | 61 | 64 | 65 |
| Sound Pressure Level @1m (Turbo/H/M/L/Min) dB(A) | 43 / 38 / 34 / 30 / 22 | 46 / 42 / 39 / 35 / 24 | 49 / 44 / 41 / 36 / 29 | 50 / 48 / 44 / 40 / 36 | 50 / 48 / 44 / 40 / 37 |
| Air Swing Louvres (Direction) | 4-Way Swing | ||||
| Unit Dimensions (HxWxD) (mm) | 294 x 881 x 194 | 316 x 940 x 224 | 316 x 997 x 227 | 330 x 1132 x 232 | |
| Packing Dimensions (HxWxD) (mm) | 370 x 965 x 282 | 385 x 1010 x 307 | 385 x 1067 x 312 | 400 x 1205 x 317 | |
| Net/Gross Weight (kg) | 9.5 / 11.0 | 12.0 / 14.5 | 13.0 / 16.0 | 14.0 / 18.0 | 14.0 / 17.0 |
| Operating Range Cool/Heat (C) | 16 / 32 | ||||

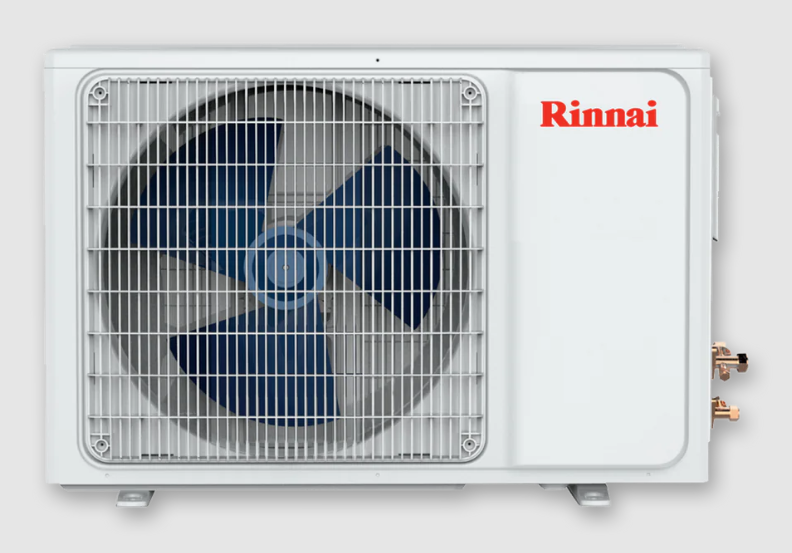

| Outdoor Unit | HONRT25B | HONRT35B | HONRT50B | HONRT70B | HONRT80B |
| Sound Power Level dB(A) | 59 | 61 | 60 | 64 | 66 |
| Sound Pressure Level @1m dB(A) | 54 | 55 | 53 | 58 | 59 |
| Unit Dimensions (HxWxD) (mm) | 545 x 800 x 315 | 700 x 900 x 350 | 805 x 970 x 395 | ||
| Packing Dimensions (HxWxD) (mm) | 620 x 920 x 400 | 770 x 1020 x 430 | 890 x 1105 x 495 | ||
| Net/Gross Weight (kg) | 28.0 / 31.0 | 30.5 / 34.0 | 45.0 / 49.0 | 49.0 / 53.0 | 61.0 / 66.0 |
| Refrigerant Type/Amount (kg) | R32 / 0.66 | R32 / 1.00 | R32 / 1.20 | R32 / 1.35 | R32 / 1.60 |
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | ||
| Maximum Pipe Length (m) | 20 | 30 | |||
| Chargeless Length (m) | 10 | ||||
| Extra Charge for Lengths >10m (g/m) | 15 | 30 | |||
| Maximum Vertical Separation (m) | 12 | 20 | |||
| Ambient Temp Limits Cool/Heat (C) | -15 to 52 / -15 to 24 | ||||
| SKU | HSNRT80B |
| Brand | Rinnai |
| Shipping Weight | 78.0000kg |
| Unit Of Measure | ea |
Warranty
Rinnai offers a 5-year warranty for all of their Air Conditioners.
