Fujitsu SET-ASTG09LVCC 2.5kW Wall Split R410A Air Conditioning System

ASTG09LVCC / AOTG09LVCC Fujitsu Wall Split

$962.00 Incl GST
$874.55 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

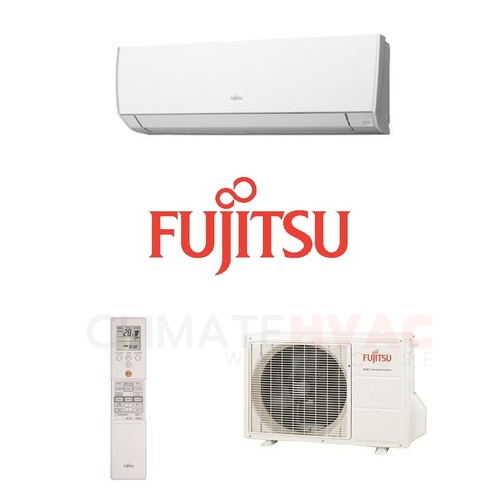

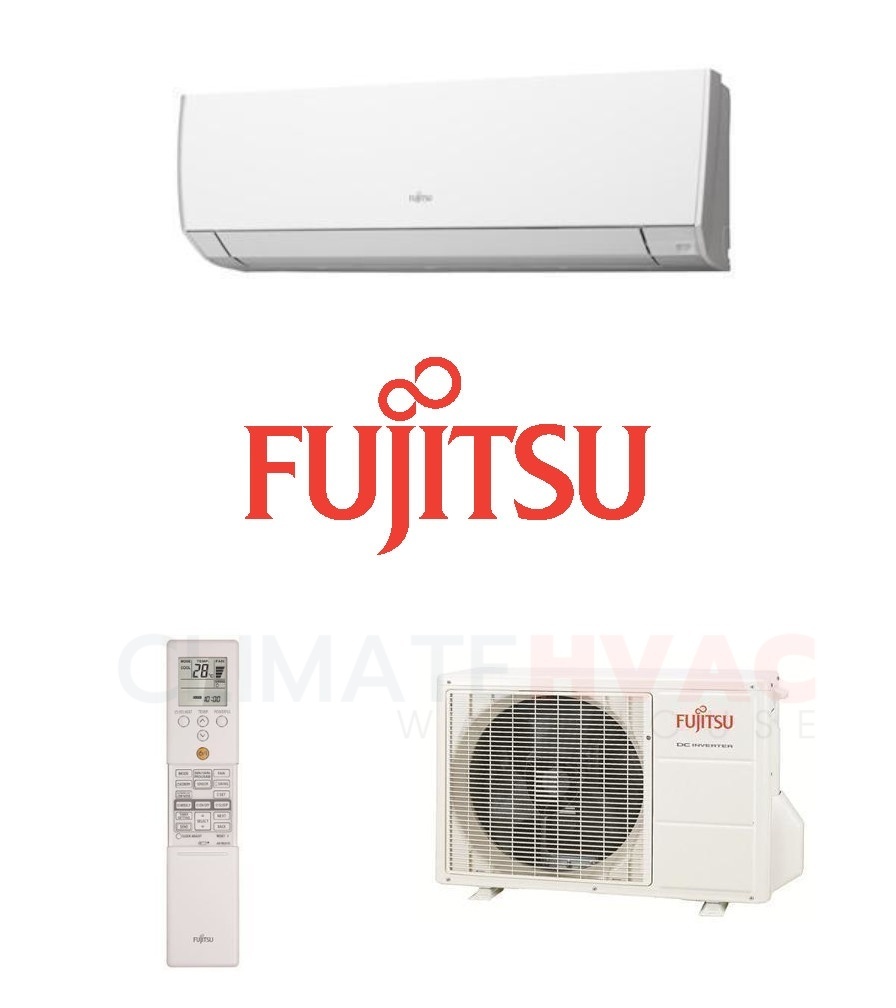

Fujitsu SET-ASTG09LVCC 2.5 kW Reverse Cycle Split System - Includes Outdoor Unit AOTG09LVCC

A stylish, standardised design across the range, the lifestyle series are the most energy efficient air conditioners Fujitsu have designed. They also feature human sensor control, delivering optimum efficiency and temperature control.

(SET-ASTG09LVCC)

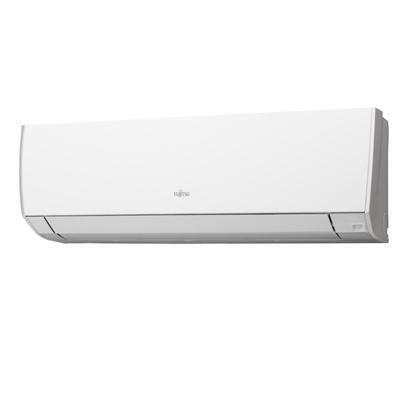

Indoor Unit ASTG09LVCC

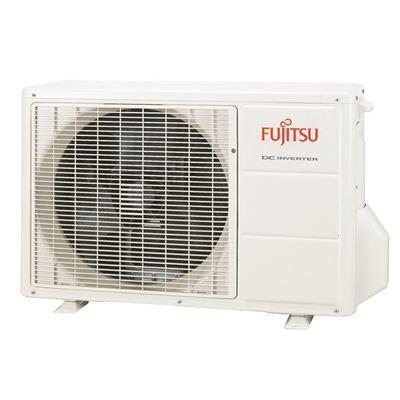

Outdoor Unit AOTG09LVCC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 2.5
Heat (kW) 3.4
Capacity Range
Cool (kW) 0.5 ~ 3.3
Heat (kW) 0.5 ~ 4.0
Power Input (Rated)
Cool (kW) 0.58
Heat (kW) 0.73
Input Power Range
Cool (kW) 0.25 ~ 1.42
Heat (kW) 0.25 ~ 1.56
Running Current
Cool (A) 2.80
Heat (A) 3.50
EER / COP 4.31 / 4.66
Energy Star Ratings
Cool 4.5 / 3.5 / 3.5
Heat 3.5 / 3.0 / 2.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 6.304 / 5.341 / 5.405
HSPF (Hot/Average/Cold) 5.390 / 4.804 / 4.074
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 7.308 / 7.511 / 8.551
HSPF (Hot/Average/Cold) 5.387 / 5.026 / 4.415
Dimensions (HxWxD)
Indoor (mm) 293 x 790 x 225
Outdoor (mm) 540 x 660 x 290
Weight
Indoor (kg) 9.5
Outdoor (kg) 25
Refrigerant Type R410a
Refrigerant Amount (kg) 0.85
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 20
Max Level Difference
(m) 15
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 9.52
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 219
Heat (l/s) 225
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 41 / 21
Heat (dBA) 42 / 22
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 47
Heat (dBA) 47
Outdoor EPA Sound Power Level (H)
(dBA) 64
SKU SET-ASTG09LVCC
Brand Fujitsu
Shipping Weight 34.5000kg
