Fujitsu SET-ASTG24LFCC 7.1kW Wall Split R410A Air Conditioning System

ASTG24LFCC / AOTG24LFCC Fujitsu Wall Split

$1,923.00 Incl GST
$1,748.18 Excl GST
In Stock

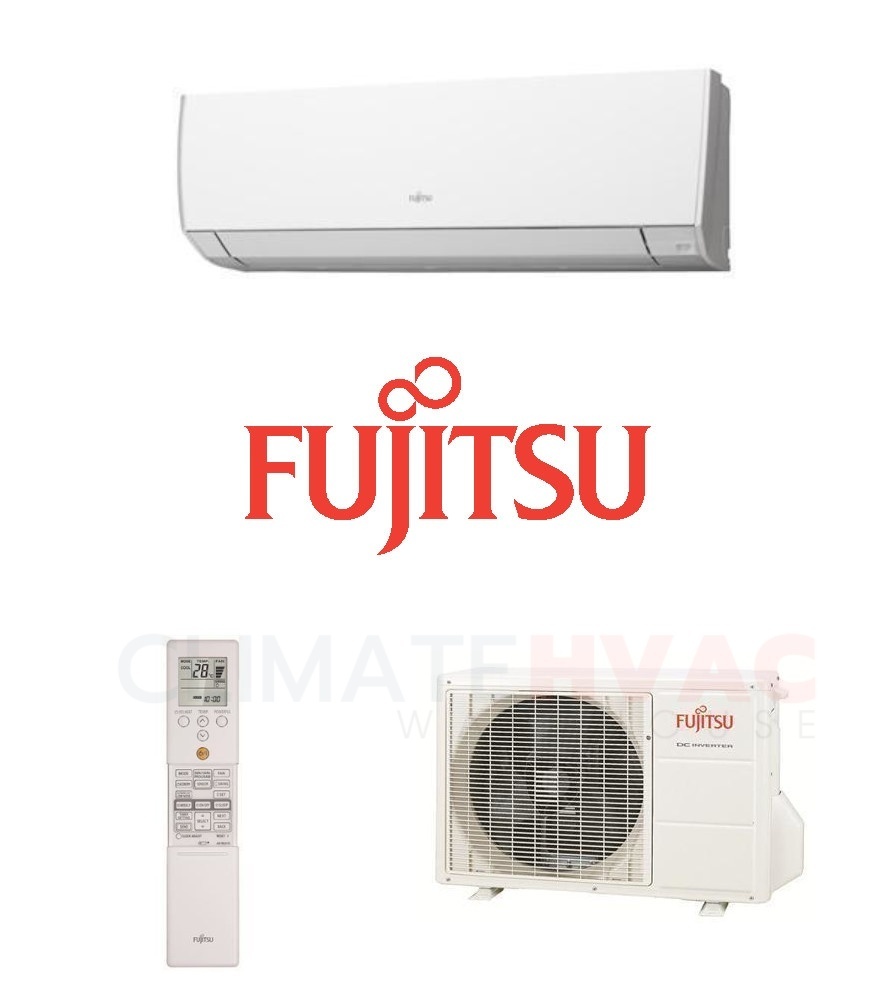

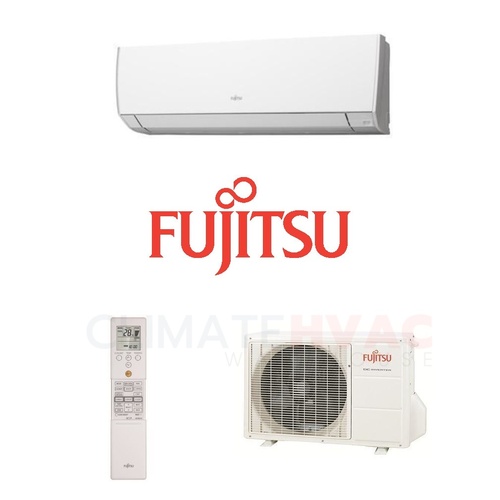

Fujitsu SET-ASTG24LFCC 7.1 kW Reverse Cycle Split System - Includes Outdoor Unit AOTG24LFCC

A stylish, standardised design across the range, the lifestyle series are the most energy efficient air conditioners Fujitsu have designed. They also feature human sensor control, delivering optimum efficiency and temperature control.

(SET-ASTG24LFCC)

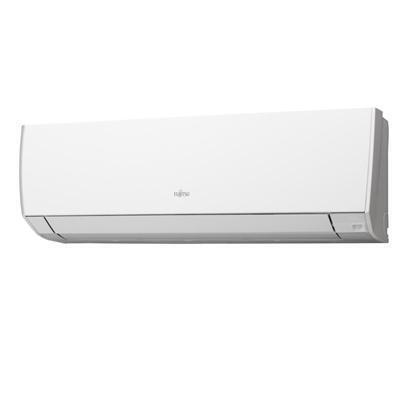

Indoor Unit ASTG24LFCC

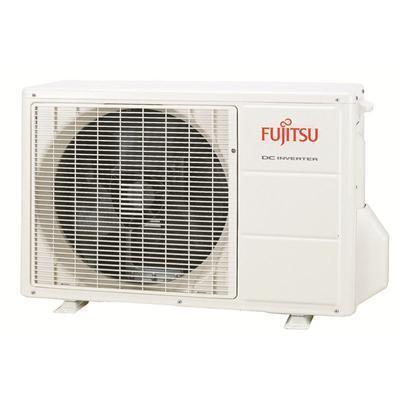

Outdoor Unit AOTG24LFCC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 7.1
Heat (kW) 8.0
Capacity Range
Cool (kW) 0.9 ~ 8.3
Heat (kW) 0.9 ~ 10.6
Power Input (Rated)
Cool (kW) 2.17
Heat (kW) 2.26
Input Power Range
Cool (kW) 0.30 ~ 3.21
Heat (kW) 0.28 ~ 4.4)
Running Current
Cool (A) 9.10
Heat (A) 9.50
EER / COP 3.27 / 3.54
Energy Star Ratings
Cool 3.0 / 3.0 / 3.0
Heat 3.0 / 2.5 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.908 / 4.522 / 4.754
HSPF (Hot/Average/Cold) 4.717 / 4.035 / 3.393
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.388 / 5.601 / 6.149
HSPF (Hot/Average/Cold) 4.732 / 4.318 / 3.758
Dimensions (HxWxD)
Indoor (mm) 320 x 998 x 238
Outdoor (mm) 620 x 790 x 290
Weight
Indoor (kg) 14
Outdoor (kg) 41
Refrigerant Type R410a
Refrigerant Amount (kg) 1.80
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 30
Max Level Difference
(m) 20
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 311
Heat (l/s) 311
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 49 / 32
Heat (dBA) 48 / 32
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 55
Heat (dBA) 56
Outdoor EPA Sound Power Level (H)
(dBA) 71
SKU SET-ASTG24LFCC
Brand Fujitsu
Shipping Weight 55.0000kg
