Fujitsu SET-ASTG30LFCC 8.0kW Wall Split Air Conditioning System

ASTG30LFCC / AOTG30LFTC Fujitsu Wall Split

$2,440.00 Incl GST
$2,218.18 Excl GST
In Stock

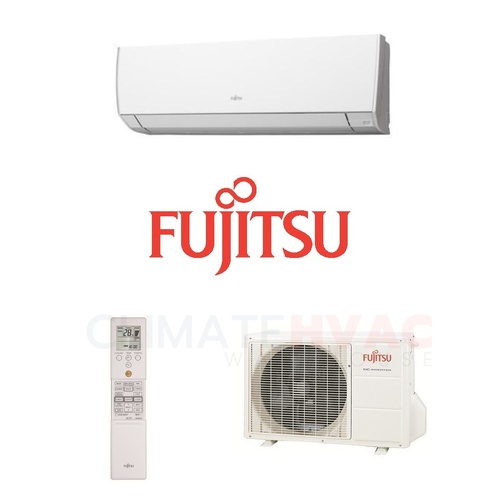

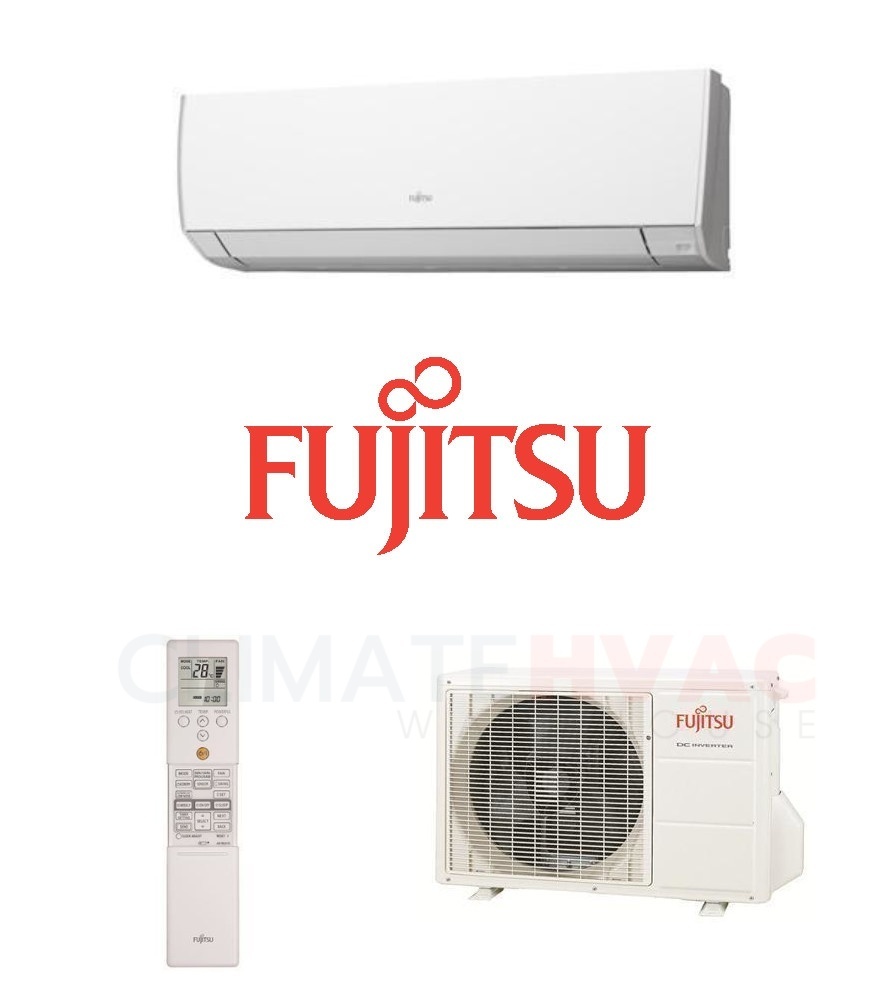

Fujitsu SET-ASTG30LFCC 8.0 kW Reverse Cycle Split System - Includes Outdoor Unit AOTG30LFTC

A stylish, standardised design across the range, the lifestyle series are the most energy efficient air conditioners Fujitsu have designed. They also feature human sensor control, delivering optimum efficiency and temperature control.

(SET-ASTG30LFCC)

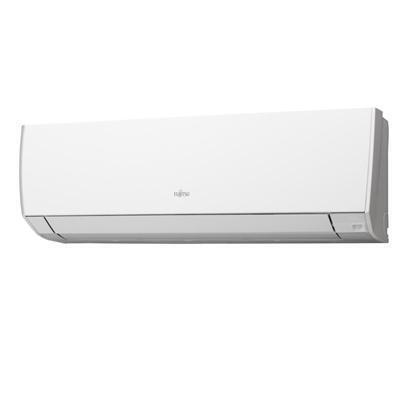

Indoor Unit ASTG30LFCC

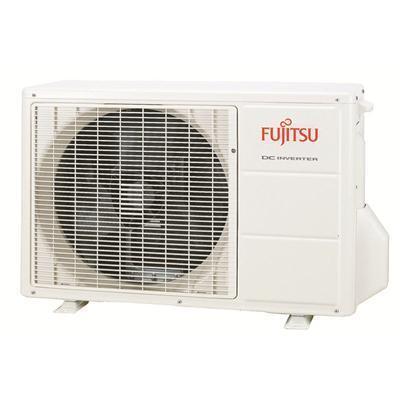

Outdoor Unit AOTG30LFTC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 8.0
Heat (kW) 9.0
Capacity Range
Cool (kW) 2.9 ~ 9.0
Heat (kW) 2.2 ~ 11.0
Power Input (Rated)
Cool (kW) 2.42
Heat (kW) 2.64
Input Power Range
Cool (kW) 0.58 ~ 4.04
Heat (kW) 0.50 ~ 4.52
Running Current
Cool (A) 10.20
Heat (A) 11.10
EER / COP 3.31 / 3.41
Energy Star Ratings
Cool 3.0 / 2.5 / 2.5
Heat 2.0 / 2.0 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.568 / 4.246 / 4.407
HSPF (Hot/Average/Cold) 3.835 / 3.532 / 3.199
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.011 / 5.179 / 5.711
HSPF (Hot/Average/Cold) 3.831 / 3.644 / 3.364
Dimensions (HxWxD)
Indoor (mm) 320 x 998 x 238
Outdoor (mm) 830 x 900 x 330
Weight
Indoor (kg) 14
Outdoor (kg) 61
Refrigerant Type R410a
Refrigerant Amount (kg) 2.10
Pre-Charged to Pipe (m) 20
Max Pipe Length (m) 50
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 311
Heat (l/s) 319
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 49 / 33
Heat (dBA) 49 / 33
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 53
Heat (dBA) 55
Outdoor EPA Sound Power Level (H)
(dBA) 68
SKU SET-ASTG30LFCC
Brand Fujitsu
Shipping Weight 75.0000kg
