Fujitsu SET-ASTG22LVCC 6.0kW Wall Split R410A Air Conditioning System

ASTG22LVCC / AOTG22LVCC Fujitsu Wall Split

$1,762.00 Incl GST
$1,601.82 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

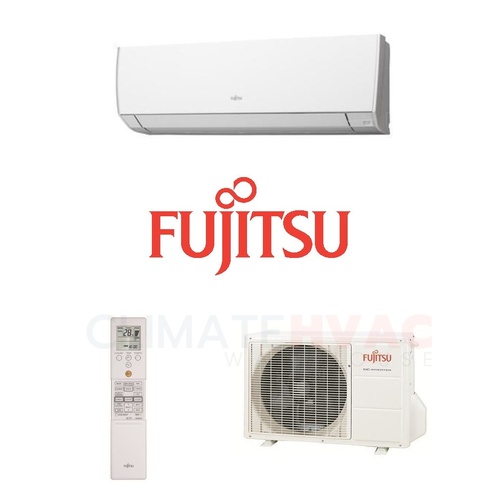

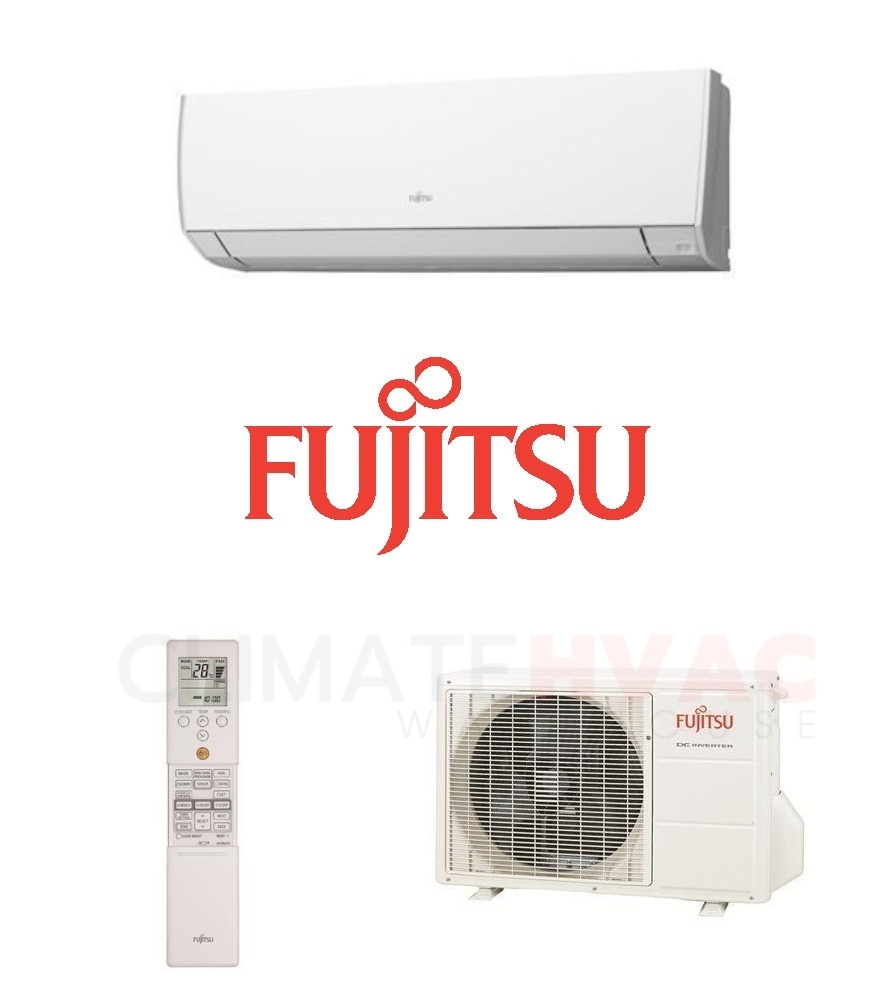

Fujitsu 6.0 kW SET-ASTG22LVCC Reverse Cycle Split System - Includes Outdoor Unit AOTG22LVCC

A stylish, standardised design across the range, the lifestyle series are the most energy efficient air conditioners Fujitsu have designed. They also feature human sensor control, delivering optimum efficiency and temperature control.

(SET-ASTG22LVCC)

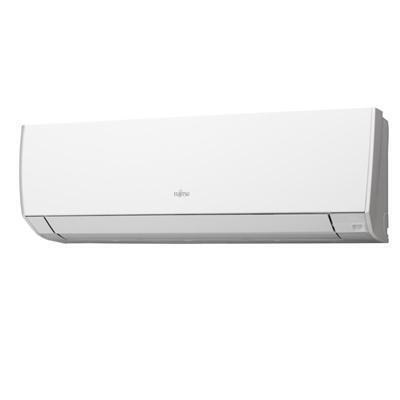

Indoor Unit ASTG22LVCC

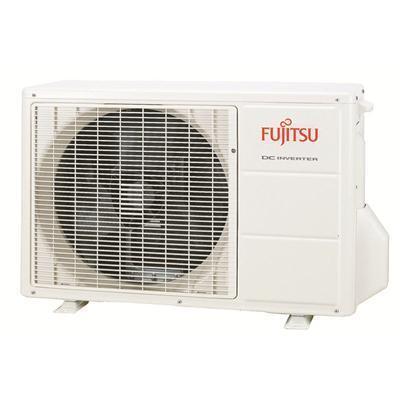

Outdoor Unit AOTG22LVCC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 6.3
Heat (kW) 7.2
Capacity Range
Cool (kW) 0.9 ~ 7.3
Heat (kW) 1.1 ~ 8.7
Power Input (Rated)
Cool (kW) 1.95
Heat (kW) 2.03
Input Power Range
Cool (kW) 0.18 ~ 2.75
Heat (kW) 0.17 ~ 4.18
Running Current
Cool (A) 8.20
Heat (A) 8.50
EER / COP 3.23 / 3.55
Energy Star Ratings
Cool 3.5 / 3.0 / 3.5
Heat 3.0 / 2.0 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.149 / 4.789 / 5.119
HSPF (Hot/Average/Cold) 4.903 / 3.978 / 3.256
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.690 / 6.000 / 6.682
HSPF (Hot/Average/Cold) 4.923 / 4.377 / 3.593
Dimensions (HxWxD)
Indoor (mm) 293 x 790 x 225
Outdoor (mm) 620 x 790 x 290
Weight
Indoor (kg) 10
Outdoor (kg) 40
Refrigerant Type R410a
Refrigerant Amount (kg) 1.55
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 20
Max Level Difference
(m) 15
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 267
Heat (l/s) 267
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 48 / 32
Heat (dBA) 48 / 32
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 55
Heat (dBA) 56
Outdoor EPA Sound Power Level (H)
(dBA) 72
SKU SET-ASTG22LVCC
Brand Fujitsu
Shipping Weight 50.0000kg
